Fruit Juice Vacuum Deaerator Vacuum Degasser
Wenzhou Longwan Wanyuan Food Machinery Factory- Brand Name：Brand Name: Jimei
- Type：Deaerator
- Processing Types：Fruit & Vegetable
- Processing：Vacuum Deaerator
- Transport Package：Wooden Case
- Origin：Wenzhou China
Base Info
- Model NO.：WY-05
Description
Basic Info.
Model NO. WY-05Product Description
Fruit juice vacuum deaerator-500L/h1.Capacity: 0.1-0.5T2.Cylinder Size: φ350*800mm3.Material & Plate Thickness: SUS304,3mm4.Vacuum Pump: 1.5Kw, Air sucking rate:0.8m³/min5.Screw Pump: 0.37KW6.Support stand: Stainless steel Material7. Structure: Oval top end enclosure & cone at bottom, top cover end enclosure is connected with the cylinder by flange.8. Accessories: DN60 sight glass, control box, vacuum pipe and the discharge valve.9.Voltage: 380V, 3phases, 50HZ <can be customized>

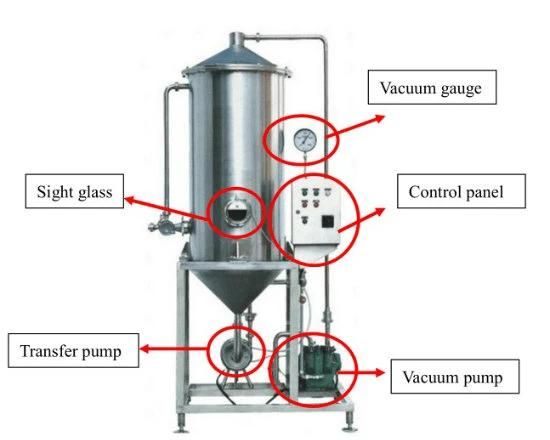

Vacuum degasser consist of vacuum pump, vacuum degassing tank and transfer pump.
Simple structure, convenient operation, easy maintenance, small size, beautiful appearance.
Production capacity: 0.5, 1.5, 2.5, 5T/h
| model | capacity | Vacuum degree | power | size |
| WY-05 | 5t/h | 6.4 ~ 8.7 * 10 4 Pa | 5.5Kw | 1.8*1*2.5m |
