• Model NO.：jk
• Name：Gas Steam Electric Heating Stainless Steel Jacket
• Double Jacketed Kettle：Heating and Mixing
• Jacketed Kettle：300L to 1000L
• Jam Cooking Kettle：Kettle with Scrapper Agitator
• Industry Jacket Kettle：Cooking , Pasteurizing and Mixing Liquid
• Material of Kettle：Ss 304,316
• Heating Source：Electric Heating Kettle, Steam Heating Kett
• Mixer：Scrapper Mixer, Customized
• Kettle Heating Source：by Steam,Electricity,Gas
• Kettle Type：Tilting, Vertical ,Fixed
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year

Basic Info.

Model NO. jk Name Gas Steam Electric Heating Stainless Steel Jacket Double Jacketed Kettle Heating and Mixing Jacketed Kettle 300L to 1000L Jam Cooking Kettle Kettle with Scrapper Agitator Industry Jacket Kettle Cooking , Pasteurizing and Mixing Liquid Material of Kettle Ss 304/316 Heating Source Electric Heating Kettle, Steam Heating Kett Mixer Scrapper Mixer, Customized Kettle Heating Source by Steam/Electricity/Gas Kettle Type Tilting, Vertical ,Fixed Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 2000set /Year

Product Description

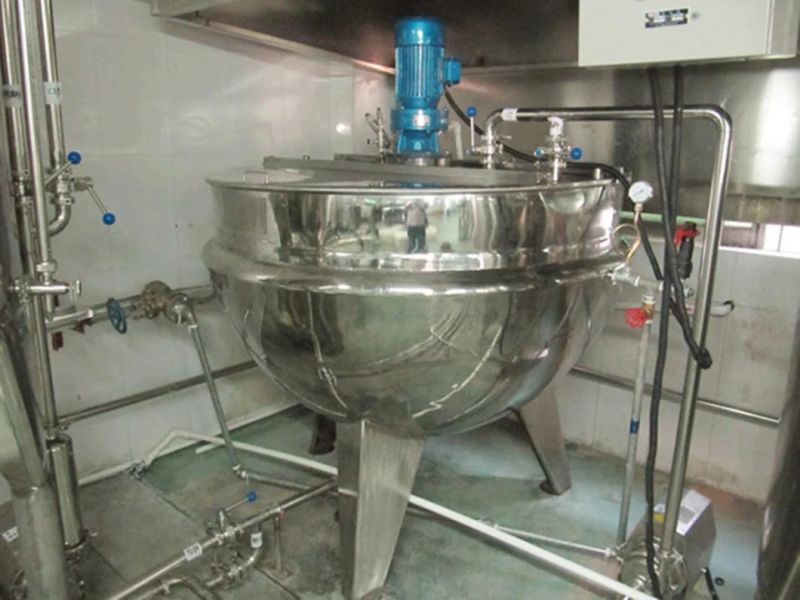

Sanitary stainless steel jacketed kettle(steam/electrical heating)

Material: SS304/316
Gas Steam Electric Heating Stainless Steel Jacketed Kettle 50L to 1000L
Stainless steel double-layered boiler/kettle ,used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750

Material: SS304
Heating by Electricity
* Type: with Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304
Capacity: 300L~1000L
Gas Steam Electric Heating Stainless Steel Jacketed Kettle 50L to 1000L
