• Model NO.：GY-6
• Transport Package：Wooden Case or Film
• Specification：CE, SGS
• Trademark：Genyond
• Origin：Shanghai, China
• HS Code：8509401
• Production Capacity：100set ,Month

Basic Info.

Model NO. GY-6 Transport Package Wooden Case or Film Specification CE, SGS Trademark Genyond Origin Shanghai, China HS Code 8509401 Production Capacity 100set /Month

Product Description

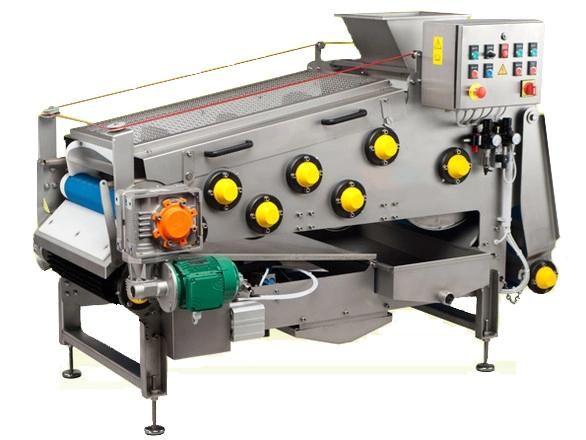

75-80% high juice rate small capacity belt juice extractor for sale

Carefully developed and become, is a highly efficient extrusion  equipment, in the fruit juice and vegetable juice production is a key equipment to the juice yield high and low.Can be widely used in berries, kernel fruit and vegetables juice industry.The equipment adopts the multistage fold to stick pressure and multistage pneumatic roller pressure, crushing strength, high rate of juice.At the same time also has the discharged, energy saving, high degree of automation, continuous working, strong commonality, filter, filter cake water filter low, operation and maintenance is convenient wait for a characteristic, is a higher rate of juice, juice equipment.Use of such a juicing equipment can make juice juice yield increased by 20 to 35%, the juice rate is as high as 75 ~ 80% (depending on the raw material), can greatly reduce the production cost, improve the economic benefits of enterprises.
This equipment can also be used for food, chemical industry, environmental protection, light industry and so on some of the powder and the slurry pressure filtration dehydration of the object.


Parameter:

Nominal rating kg/h	20kg-3000 kg/h
Motor rating	Drive motor 0,55 (0,75) washing system motor 0,12 (0,16) kW (PS)
Connected load	400V 50Hz (3-phase)
Electrical protection	16 A
Machine size	1940 x1160x1300(mm)
Discharge height	1300 mm
Belt width	500 mm
Strip length	6600 mm
Conveyor width	300 mm
Conveyor height	0-50 (9 levels) mm
Weight	520 kg
Material	1.4301 / AISI 304
Juice yield	75 %  (high )
Belt speed	1,4 - 3,6 (continuous) m/min
Water consumption for cleaning	3 l/min
Connection for waste water	Ø76,1mm
Connection for juice outlet	1 1/2 "
Height juice outlet	300 mm
Height waste water drain	170 mm
Height pomace ejector	480 mm
Scope of supply	High pressure cleaner, compressor



General advantages
* minimum space requirement
*best juice quality (aroma/freshness of taste)
*high yield up to 75%,therefore high profits
*low clouding content
*fully automatic ,continuous operation
Universal advantages
*complete package ready for connection high-pressure cleaner and air compressor
*compact design:
-- easy to place
-- level floor installatioin without foundations
--interchangeable with exiting plant components
--removable for alternative space utilisation
*userfriendly operation,good accessibility quick cleaning
*total safety and CE-conformity
Economic benefits
* universal use with respect to pressed products and processing quantities
*maxmum saving on outside labour or minimum supervision instead of toiling yourself
*optimum price /performance ratio
*long life ,high stability of value, low operating costs
*complete package
Technical advantages
*Componets in contact with media and support elements of high-grade steel ,sealed plastic roll bearings.
*application heigh according to product

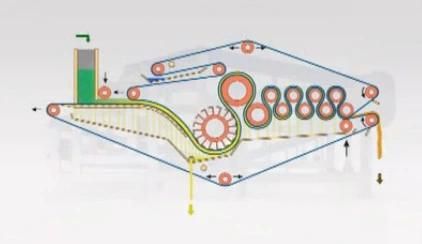

*smooth pressure increase from straining zone to main pressing zone
*pneumatically adjustable belt tension for maximum pressing power
* fully automatic belt control
*two belt speeds
*low oxidation juice discharge,optional on left hand or right hand side
*intergrated fully automatic high-pressure belt cleaning with low water consumption and maximum efficiency
