3A Certified High Viscosity Screw Pump for Food Beverage Processing

Donjoy Technology Co., Ltd.
  • Processing Material：Natural Ingredients
  • Application：Pet Food, Chocolate, Ice Cream, Vegetable, Fruit, Dairy, Beverage, Food Transfer
  • Certification：CE, 3A
  • Hygienic Level：Sanitary
  • Transfer Particle：Yes
  • Hopper：Option

Base Info

  • Max Flow：110 M3,H
  • Max Particle：23mm
  • Product Name：3A Certified Food Grade Double Screw Pump
  • Transport Package：Wooden Case
  • Specification：LG-L,R
  • Trademark：DONJOY
  • Origin：China
  • HS Code：8413602190

Description

Item:3A Certified Sanitary Twin Screw PumpInlet & Outlet Sizes1 1/2″-5″ Contact Material:SS316LSeal Material:FKM(Viton)Max. Flow:110 m3/hMax particles23mmWorking temperature-40 degree to 150 degree celsiusSurface treatmentRA 0.6um,  RA 0.4umSpeed range:10-3500 RPMMechanical seal:SIC/SIC/FKM(Standard), Single or double mechanical sealWorking temperature:-40~150 degree centigradeVoltage:110V, 220V, 380VMotor:ABB or othersMotor Frequency:50HZ, 60HZAvailable Connection:Clamped, Threaded, FlangedStandard:DIN, SMS, 3A, RJT, ISO, IDFOperated:Electic motorCertificate:3-A-02-11 (1759), FDA.177.2600, CE-MD/06-42 NO. 705201402401-00Application Range: Mash, Dairy, food, beverage, pharmacy, cosmetic etcPackaging Details:Plywood case
• Delicate, Low Shear Product Handling
• Ability to Pass Soft Solids up to 2.5" in Diameter
• Ability to Run up to Speeds of 3,500 RPMs

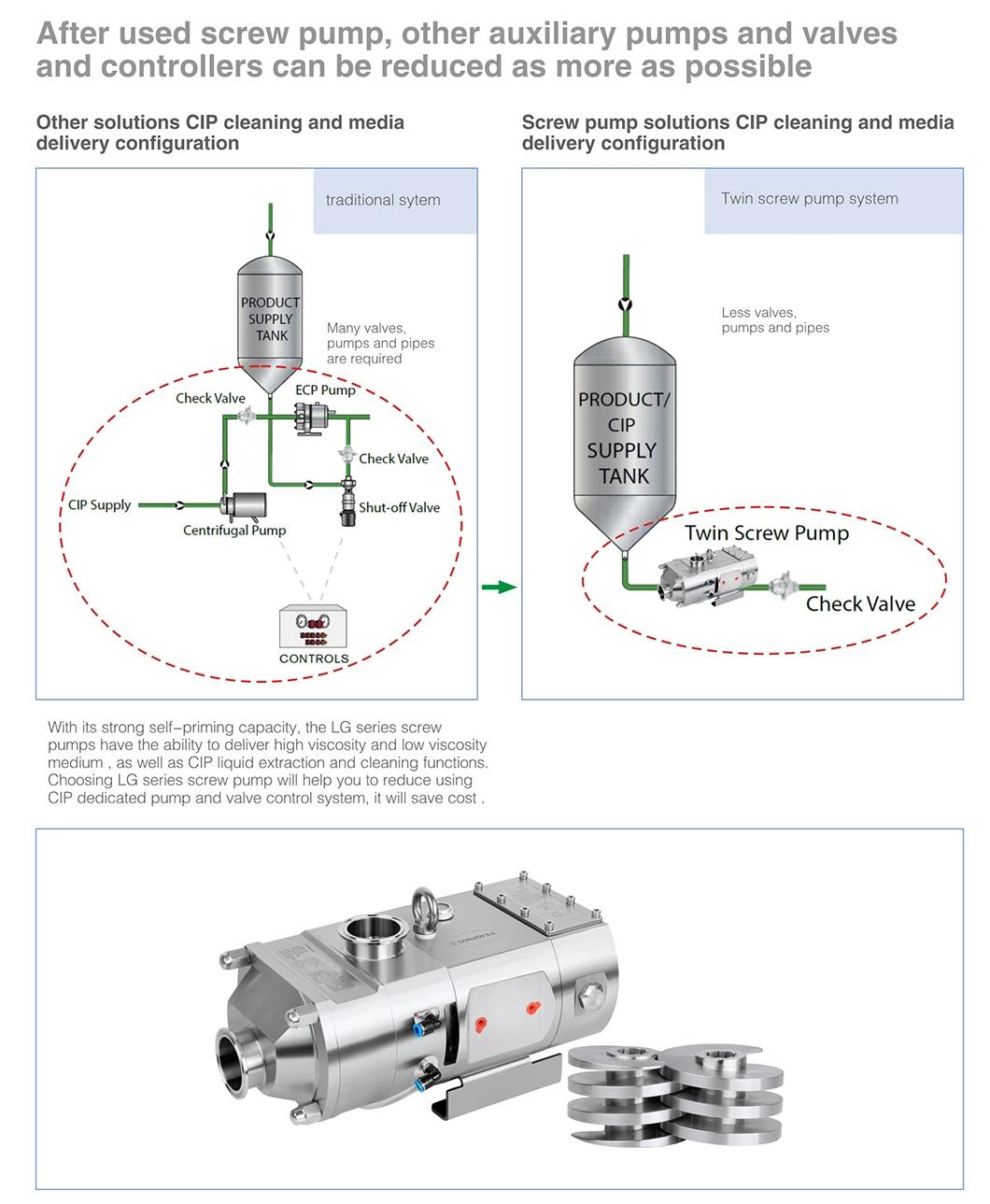

• Able to Generate the Velocities Required for CIP, with No Separate CIP Return Pump Required!
• Fully CIP-able
• Ability to Run Dry for Extended Periods of Time
• High Suction Capability • Smooth, Virtually Pulse-Free Delivery of Product
• High Resistance to Abrasive Products

Donjoy Sanitary Rotor Pump for Syrup

3A Certified High Viscosity Screw Pump for Food Beverage Processing
3A Certified High Viscosity Screw Pump for Food Beverage Processing
3A Certified High Viscosity Screw Pump for Food Beverage Processing3A Certified High Viscosity Screw Pump for Food Beverage Processing
3A Certified High Viscosity Screw Pump for Food Beverage Processing

3A Certified High Viscosity Screw Pump for Food Beverage Processing



3A Certified High Viscosity Screw Pump for Food Beverage Processing3A Certified High Viscosity Screw Pump for Food Beverage Processing
3A Certified High Viscosity Screw Pump for Food Beverage Processing
