• Model NO.：TSXQ-30
• Material：304 Stainless Steel or According to Customer Requi
• Effective Size：1500*520*100mm
• Ozone：with
• Air Bubble：with
• Water Spraying：High Pressure
• Cleaning：Equiped with Hoisting System for Easy Cleaning
• Transport Package：According to Customer Requirement
• Specification：3200*1350*1100mm
• Trademark：AMBITIOUS
• Origin：China
• HS Code：8438600000
• Production Capacity：200pieces,Year

Basic Info.

Model NO. TSXQ-30 Material 304 Stainless Steel or According to Customer Requi Effective Size 1500*520*100mm Ozone with Air Bubble with Water Spraying High Pressure Cleaning Equiped with Hoisting System for Easy Cleaning Transport Package According to Customer Requirement Specification 3200*1350*1100mm Trademark AMBITIOUS Origin China HS Code 8438600000 Production Capacity 200pieces/Year

Product Description

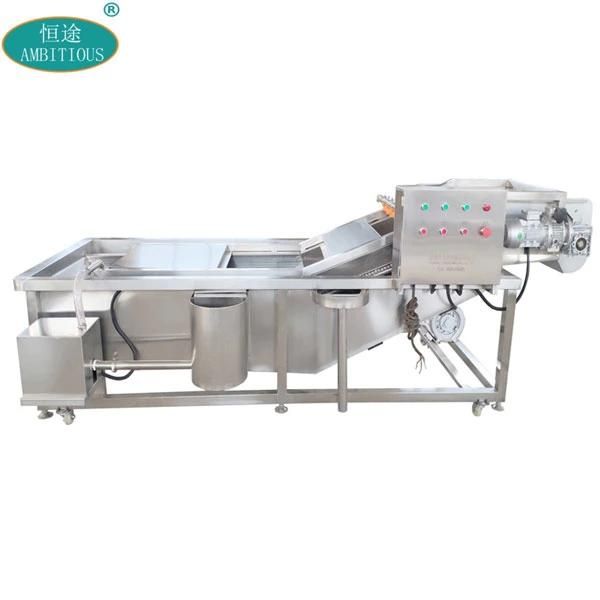

1.- Automatic Fruits Cleaning Processing Machine Strawberry Washing Machine


We specialize in offering an excellent range of Vegetable Washing Machine that is mainly used for
washing leafy vegetables. This machine could be called a bubble washing machine or air bubble
washing machine. Can be equiped with ozone according to requirements.

It is mainly used to wash & clean vegetables, fruits, aquatic product, such as tomatoes, spinach,
celery, cucumber, cabbage, apples, tomatoes, green vegetables, wheat seeding, mango, grapes, and
other fruit and vegetable cleaning.

It is a special machine for washing & cleaning food. We can also provide complete fruit and vegetable
washing and drying lines.

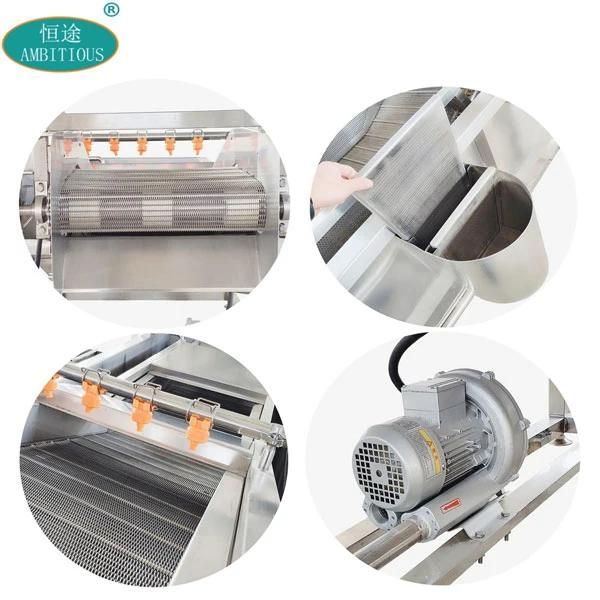

The speed of the conveyor belt can be controlled by the frequency converter according to the characteristics
of the agricultural product, thereby controlling the time during which the product is washed in the water.

The air bubbles generated by the high-pressure blower can drive the continuous water circulation, so
that the fruits and vegetables floating and immersed in the water can be turned over and washed, and
the continuous water flow can ensure that the product is gently washed, soiled, and the raw materials
are not damaged.

There is a filter tank to concentrate the floating objects in the filter trough. During the washing process,
the sediment of the soil is discharged from the bottom drain.


The washing machine can be placed in any packaging line. The frame and belts of the washing line are
made entirely of stainless steel. The machine is maintenance-free due to this.

Features:
- Completely built of SS304; safe for foodstuffs
- Electric drive
- 200 to 300 kg/hour







2.- Applications of Automatic Fruits Cleaning Processing Machine Strawberry Washing Machine


Used for washing seafoods, such as lobster, squid, fish, or fruits which include mango, apple, dates, pear, and also for washing leafy vegetables and herbs.

Can be equipped on the complete production line for deep processing of fruits and vegetables.




3.- Technical Index of Automatic Fruits Cleaning Processing Machine Strawberry Washing Machine



1	Model	TSXQ-30
2	Processing capacity	200-300kg/hr
3	Overall Dimensions	3200*1350*1100mm
4	Electric source	380V/50HZ
5	Power	1.5KW
6	Hoister	Without
7	Bubble Generator	With
8	Ozone Device	With

4.-Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	20-30 Working days.
Shipping Type	By sea, railway, etc.

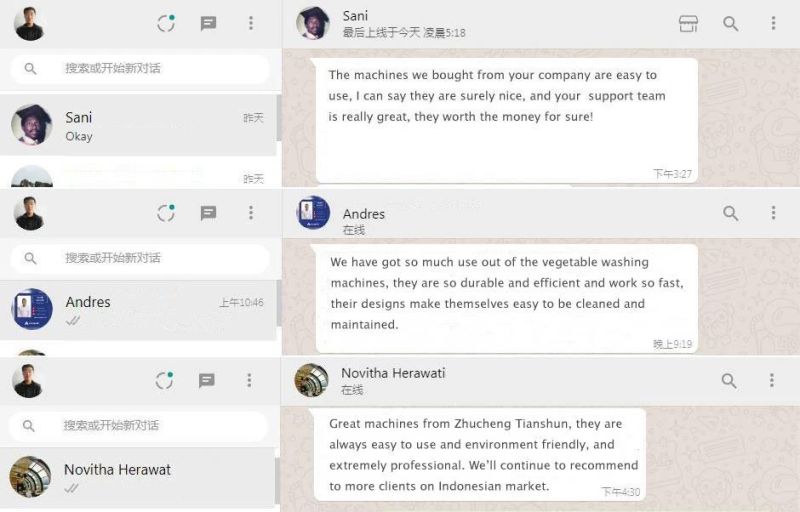

5. -Customers Review

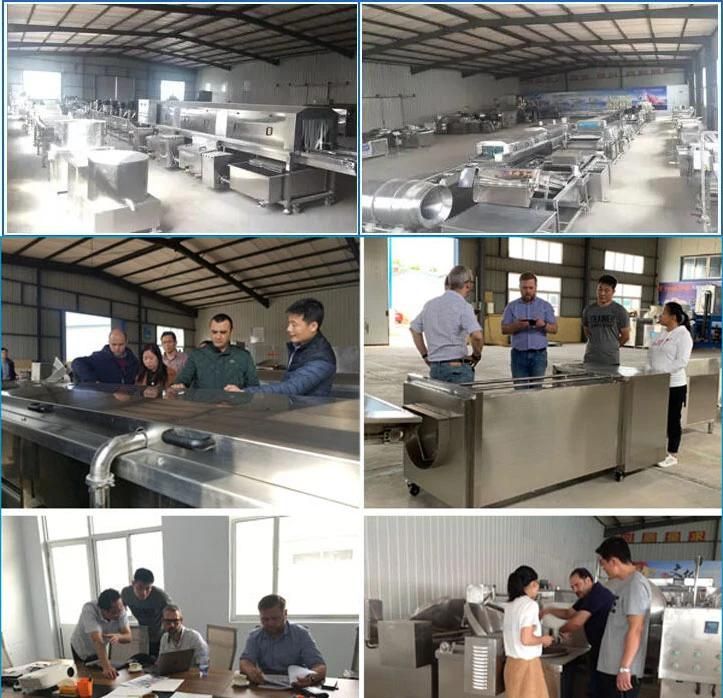

6. -Introduction of Our Company

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Main products: Food processing machinery and complete production lines, including:

Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food coating machine,
Vacuum packing machine,
Freeze dryer,
IQF freezing machine,
Dishwasher,
Complete potato chips/french fries/plantain chips production line.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
