• Model NO.：HT-CLP200
• Application：Chocolate, Chocolate Production Line
• Customized：Customized
• Transport Package：Fumigation-Free Wooden Case
• Specification：on the specification
• Trademark：HENTO
• Origin：Henan, China (Mainland)
• Production Capacity：500kg,H

Production capacity (KG)

200-400

Shaft rotating speed (R/MIN)

3200

Fineness (MICRON)

20-120

Main motor power (KW)

11

Weight (KG)

258

Dimension (L*W*H)(MM)

700*500*1500

Material

Stainless Steel

2.Chocolate Melting Tank

The chocolate melting tank is used for melting the fat such as cocoa butter. It is used before the chocolate conching process.

Tank capacity(L)

500

Electric heating power(KW)

7.2

Weight(KG)

340

Dimension(L*W*H)(MM)

2100*750*1000

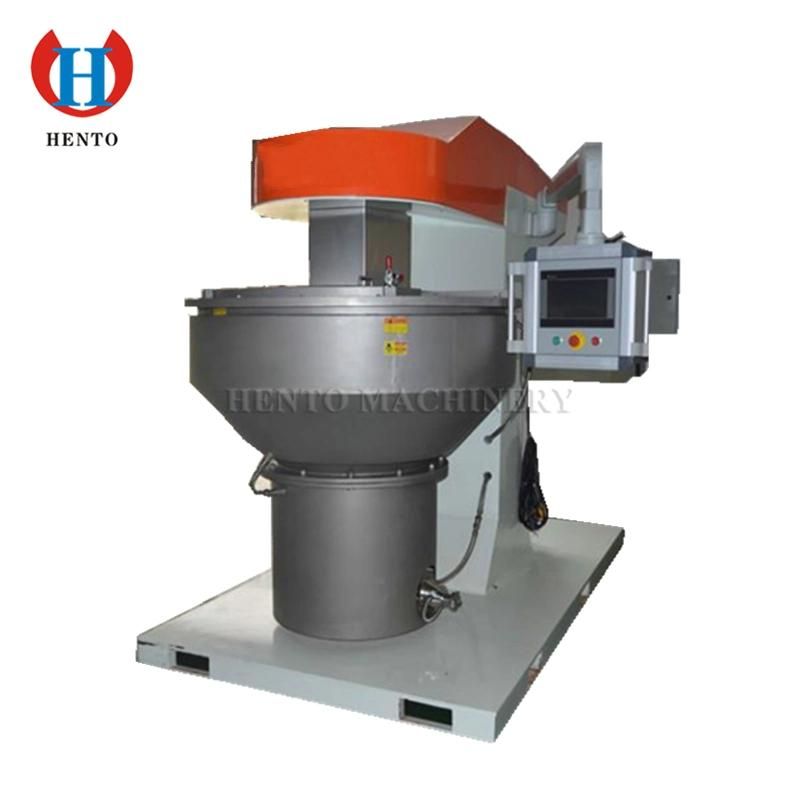

3.Chocolate Ball Mill

1. High efficiency

* The production capacity is 8 to 10 times of the traditional chocolate conche.

2. Low power consumption

* The total amount it saves in a year equals to a set of ball mill

3. Food safety guarantee system(magnetic filter)

4. The function of mixing and ball milling

5. High conching fineness(18-25 micron)

6. Easy operation(PLC automatic controller)

7. Imported high quality accessories

8. Low noise

Capacity(kg)

300

Refining fineness(μm)

18-25

Motor power(kw)

30

Power consumption(kw/h)

45

Total ball weight(kg)

800-900

Weight(kg)

3000

Dimension(L*W*H)(mm)

2600*1500*2700

4.Chocolate Melting Tank
The chocolate tempering machine is automatic control and in strict line with the temperature required for each section in the tempering procedure. So it can guarantee the quality of the processed chocolate.

Flow(kg/h)

100-250

Main engine speed(r/min)

48

Total power(kw)

7

Weight(kg)

580

Dimension(mm)

1050*950*1950

5.Chocolate Holding Tank

The bottom of the chocolate storage tank of our company is cone-shape design. Easy for cleaning .The machine is equipped with additional temperature controller which can circulate the rated temperature automatically, it can make the chocolate paste after conching better meet the technology for chocolate production. It is very helpful for improving the quality of the chocolate.

Tank capacity (KG)

1000

Shaft rotating speed (R/MIN)

22.5

Electric heating power (KW)

7.5

Weight (KG)

700

Dimension (MM)

1200*1750

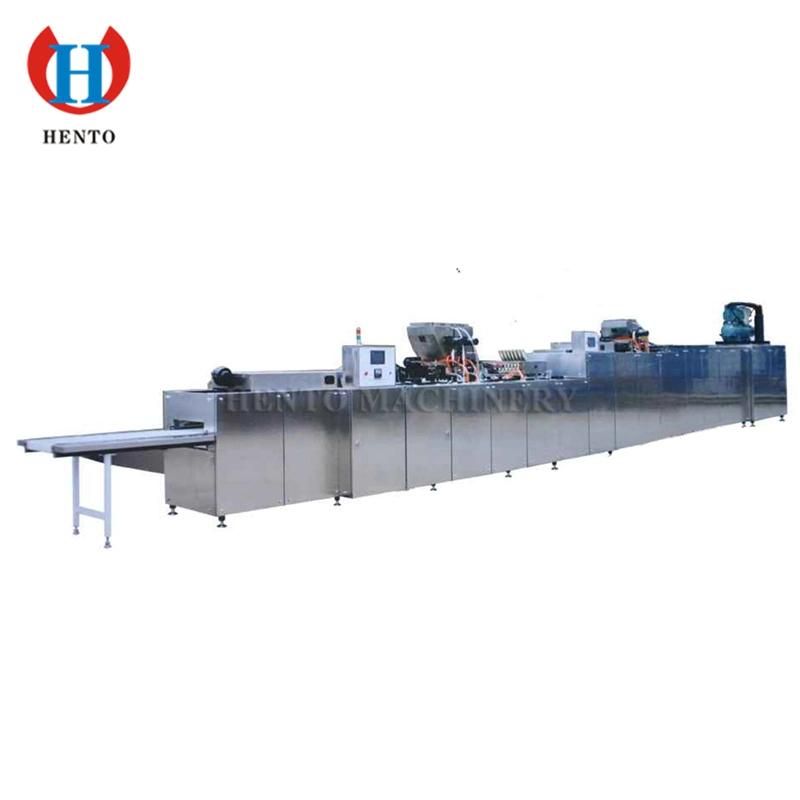

6.Chocolate  Molding  Machine

The chocolate depositing/moulding machine of our company is a dedicated and advanced chocolate molding equipment. It is electromechanical. The whole production process includes depositing, mould vibrating, cooling, demoulding, conveying, mould drying etc.

The machine can produce all kinds of chocolate such as pure chocolate, filled chocolate, bicolor/four-color chocolate, agate/amber chocolate etc. It can produce chocolate product based on nice appearance and accurate quantification. It is the ideal high-quality chocolate production equipment.

Capacity(KG)

800-2500

Total power(KW)

21

Refrigerating capacity(KCAL/H)

21800

Mould dimension(L*W*H)(MM)

280*200*30

Mould quantity(PC)

270

Weight(KG)

4800

Dimension(L*W*H)(MM)

17000*1000*1330

2.Product Pictures



3.Packing & Shipping


4.Company Certificates


5.Our Customers


6.Contact Us

If you need further information, please contact us freely, we will do our best to cooperate with you.
