• Production Capacity：50000PCS,Year
• Origin：China

Basic Info.

Origin China Production Capacity 50000PCS/Year

Product Description

1. Product Description

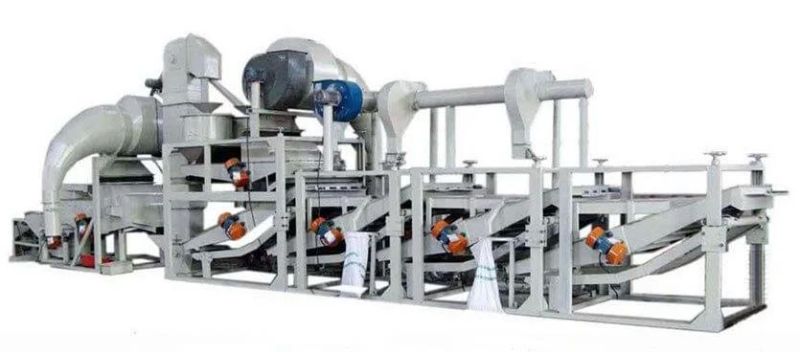

In view of the special requirements of sunflower seed shelling, our company has developed a sunflower seed shelling and seed shell separation equipment. The production line adopts a unique double sheller setting, and realizes the separate control of the sheller through frequency conversion technology. It can remove all kinds of impurities in the raw materials of sunflower seeds, and shelling, peeling, sorting and classification of sunflower seeds. The unique wind return system can automatically return the unshelled seeds to the sheller for secondary shelling, thus greatly improving the shelling efficiency.
The machine has the characteristics of low broken generation, good shelling and separation effect, high automation and easy operation and maintenance. It is the best equipment for sunflower shelling and separation in the world. The processed sunflower kernel can be used in food industry and oil pressing industry.

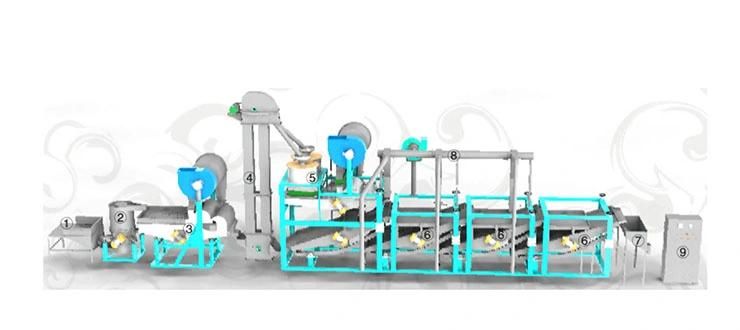

2. Processing Flow Chart







1  Feeding hopper, 2  raw material elevator, 3  multi-function impurity remover (cleaner), 4  bucket elevator, 5  double sheller, 6  Classifier (3 sets), 7  receiving hopper, 8  wind return system, 9  control cabinet
Feature:
  The multi-functional impurity remover (cleaner) can remove large impurities, small impurities, light impurities, side-by-side impurities and other impurities (such as stone, glass, shrivel, hair, etc.) in raw materials

  All steel core and 99% high alumina ceramic blade are used in the sheller, which enhances the shelling effect and service life.

  Wind return system returns raw materials which is not shelled to sheller for shelling again

  The adoption of screw unloader facilitates the collection of sunflower skin and reduces the generation of dust.

  The application of the fish-scale screen can easily realize the separation of seed and kernel; the screen piece is made of high-quality cold-rolled steel plate, strong and durable.

  The whole set of equipment is centrally controlled by the electric control cabinet, and the operation is simple and intuitive. The frequency of the sheller can be adjusted at any time according to the material conditions by adopting the frequency conversion design.

  The vibration source of the whole set of equipment is in the form of vibration motor, so the equipment installation is convenient and fast without foundation.

3. Technical Parameter

TKSF-100 model sunflower seeds de-hulling and separation production line

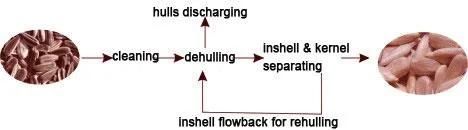

Flow chart:
Feeding hopper → raw material elevator→ multi-function impurity remover (cleaner), → bucket elevator → double sheller→ Classifier (3 sets) → receiving hopper→ wind return system→ Color sorter (option)→ Packing (option).


Technical Parameter

Total Power:15 KW
Capacity:0.5-1.0t/h (depend on raw material status)
Full kernel rate:≥90%
Un-hulled seed % in final:≤2-5%
Area required for production line:Length 15M; Width 3M; Height 4.5M
Total weight of this production line equipments: about 5Tons



TKSF-150 model sunflower seeds de-hulling and separation production line
Flow chart:
Feeding hopper → raw material elevator→ multi-function impurity remover (cleaner), → bucket elevator → sheller (4sets) → Classifier (3 sets) → receiving hopper→ wind return system → Color sorter (option)→ Packing (option)
Technical Parameter
Total Power:16.5 KW
Capacity:1.0-1.2t/h (depend on raw material status)
Full kernel rate:≥90%
Un-hulled seed % in final:≤2-5%
Area required for production line:Length 12M; Width 3.5M; Height 5M
Total weight of this production line equipments: about 5.5Tons

5. Sunflower Shelling Video




Packing Delivery


First, the brown rice is fed to rice polisher through screw head. the surface of the rice grain is polished by friction under a certain pressure and temperature. Through the polishing treatment, not only the floating surface of the rice grain can be cleared, but also the starch is pregelatinized and gelatinized on the surface of the rice starch, and the starch gelatinization makes up for cracks, thereby obtaining the smooth appearance, improving the storage life of the rice, therefore polished rice is very necessary.



Our Service

[Consulting Service] Our consultant provides you with pre-sales expertise consulting services, system evaluation, providing the best engineering solution

[Engineering Service] Set up special project team of technical, installation and sales for you. to design, install and commissioning a complete set of equipments, whole process tracking service.

[Training Service] Our experts in technology and management provide you long term production, operation, management, maintenance and other professional skills training, to help you train operation, technology, management personnel.

[Spare Part Service] We provides high-quality and reliable original accessories. And the service centers also keep store of a certain number of common accessories to meet the demand of rapid supply.

[Site service] Our service engineer goes deep into your site to solve practical problems. Conduct on-site training on the use of products and seek for improvement of a new way of thinking and method to reduce cost and increase efficiency.

FAQ

1. What is the delivery time of this machine if we book order right now?

We will deliver your order within 30-60days depend on different of machines.

2. How do you pack this machine for exporting?

We will provide packing which is suitable for the agreed means of transportation and for the foreseeable conditions of storage at the destination.

3. How can we make inspection before delivery?

We welcome you send your inspection manager come to our factory for inspection or you can nominate international the third part inspection company.

4. What is the warranty for your machine?

If any defect or non-conformity arising from faulty design, materials, we shall eliminate defects or replace machine.

5. What is the installation requirement of this machine?

The foundation of the machine should be with sufficient strength to support the weight of the machine.

There should be enough space around the machine for maintenance and inspection.
