• Transport Package：Wooden Packing
• Specification：customized
• Trademark：Longer
• Origin：China
• Production Capacity：100-1000kg,H

Basic Info.

Transport Package Wooden Packing Specification customized Trademark Longer Origin China Production Capacity 100-1000kg/H

Product Description

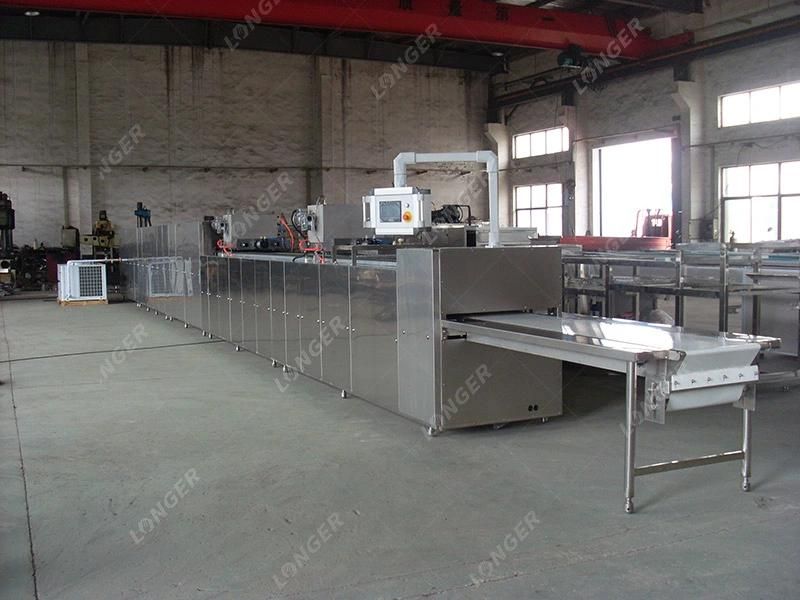

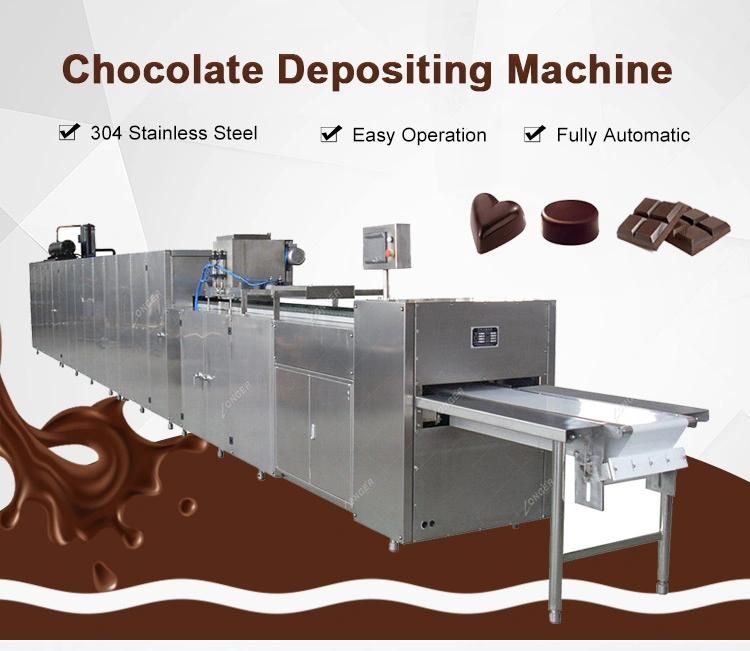

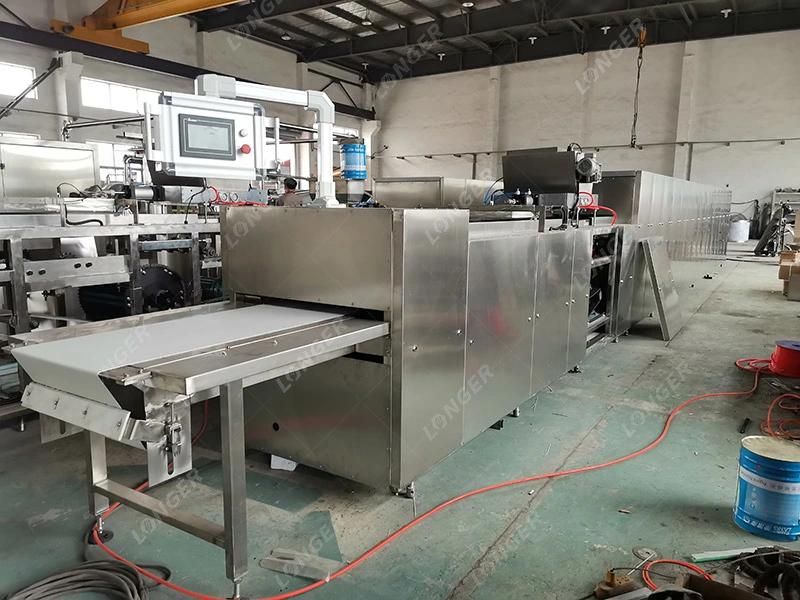

Introduction of one shot chocolate depositor
This equipment is a special equipment for quantitatively pouring chocolate. This machine can be used for pouring single-color, double-color, and filled chocolate. This machine rotates through the motor, reducer, indexing positioning mechanism, and sprocket. The template is pushed forward in the guide rail by the special chain plate on the chain.


  Feature Of one shot chocolate depositor
1.Accurate pouring quantity: The frequency conversion (servo) motor stroke is used to control the pouring quantity, and the pouring quantity control is accurate, and the error does not exceed 2G.
2. Precise template positioning: no template, no pouring, accurate control.
3. Multiple functions: it can produce single-color, left-right double-color and slurry-filled chocolate products (single-head pouring machine), and a fully automatic pouring machine that integrates mold drying, pouring, vibration mold, cooling, demoulding, and conveying; also It can produce single-color, left-right double-color, upper-lower double-color and slurry-filled chocolate (double-head pouring machine), which integrates mold drying, secondary pouring, secondary vibration mold, secondary cooling, demolding, and conveying. Diverse choices and diverse coordination.
Parameters Of chocolate injection machine

Model	GG-CJZ150	GG-CJZ175	GG-CJZ510
Capacity	6-15Template block/min	6-15Template block/min	6-15Template block/min
Power(Kw)	6	19	21
Number of templates(Piece)	200	280	280
Template size(mm)	275*175*30	330*200*30	510*200*30
Weight(Kg)	500	3500	4000
Dimension(mm)	4000*520*1500	16000*1000*1600	16000*2000*1600
