100L Electric Heating Mixing Tilting Kettle

Wenzhou Tianlong Machinery Technology Co., Ltd.
  • Power Source:Electric
  • Process:Thermal Processing
  • Automatic Grade:Semi-Automatic
  • Type:Mix Filling Machines
  • Voltage:380V
  • Customized:Customized

Base Info

  • Model NO.:100L-500L
  • Material:SS304, SS316L
  • Transport Package:Wooden Box
  • Specification:50L-600L
  • Trademark:Tianlong
  • Origin:Wenzhou, China
  • Production Capacity:1000 Sets Per Week

Description

Volume L100200300400500Main Body Diameter800mm900mm1000mm1100mm1200mmHeating TypeConduction OilConduction OilConduction OilConduction OilConduction OilPower1.5+1.51.5+1.51.5+1.52.2+1.54+1.5Size1680*1400*14501800*1600*15501900*1750*16502000*1850*17002050*2010*1750
Application :
Applied for cooking congee, soup, food, meat in food factory , hotel , restaurant, guesthouse, dining hall , enterprises, government department , college canteen etc  .

And also can be used for condiment,coating procook , fry, mix and concentrate .

Structure :

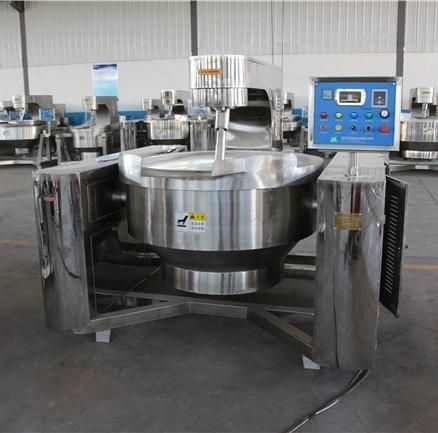

The equipment is electrical heating conduct oil jacket kettle , material contact part is made of SS304 which is in accordance with sanitary food grade.

All welding has been polished which has beautiful outlook .

Insulation layer is Aluminum Silicate , it prevent operator been scald, and no need heat all the time or heat frequency .

The temperature controller are digital display , easy operate . We also equip leakage circuit breacker to keep safe.

They are large heat area , high heat efficiency , stable heating , short time boiling , heat fast .

Manual tilt discharge food .
