Complete Fruit Jelly Production Line
Shanghai Genyond Technology Co., Ltd.- Certification：CE, ISO9001
- Power Source：Electric
- Process：Thermal Processing
- Automatic Grade：Automatic
- Application：Jelly
- Customized：Customized
Base Info
- Model NO.：GDL
- Turn-Key Project：Automation
- Material：Stainless Steel
- Capacity：Design as Customer Request
- Warranty：2 Years
- Brand：Genyond
- Delivery：60days
- Transport Package：Wooden Packing
- Specification：as customer capacity
- Trademark：GENYOND
- Origin：China
- HS Code：8419899090
- Production Capacity：800 Sets Per Year
Description
Basic Info.
Model NO. GDL Turn-Key Project Automation Material Stainless Steel Capacity Design as Customer Request Warranty 2 Years Brand Genyond Delivery 60days Transport Package Wooden Packing Specification as customer capacity Trademark GENYOND Origin China HS Code 8419899090 Production Capacity 800 Sets Per YearProduct Description

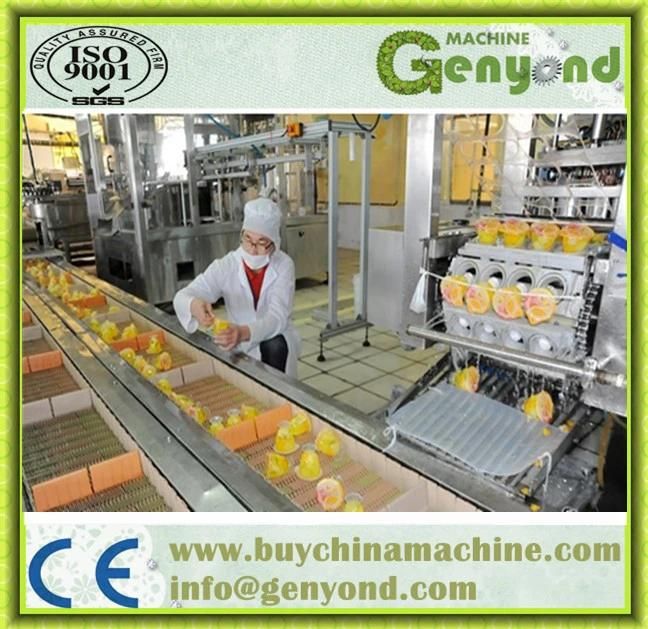

Complete jelly/pudding production line
Perfect to produce all kinds of jelly and pudding, such as milk pudding, fruits flavor jelly/pudding, vanilla or chocolate pudding etc.
This processing line can be fully / semi automatic, equipped with jacketed kettle, mixing tank,filter, homogenizer, sterilizer, filling and sealing machine.
Capacity of jelly / pudding production line

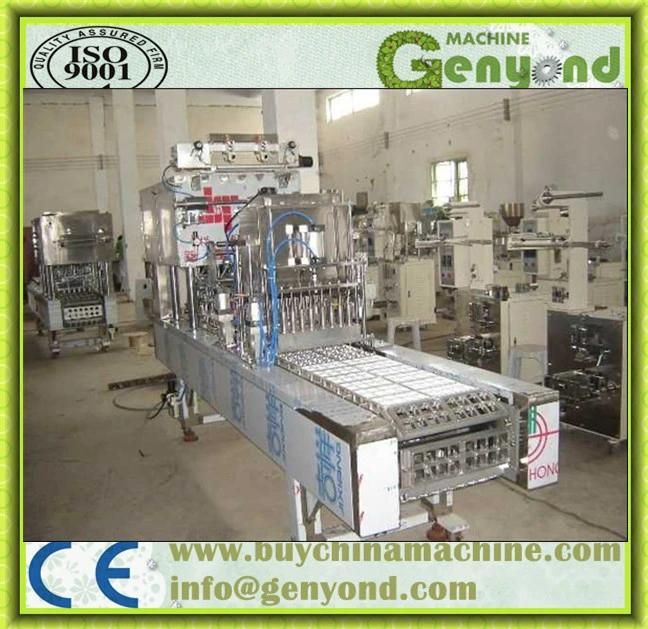

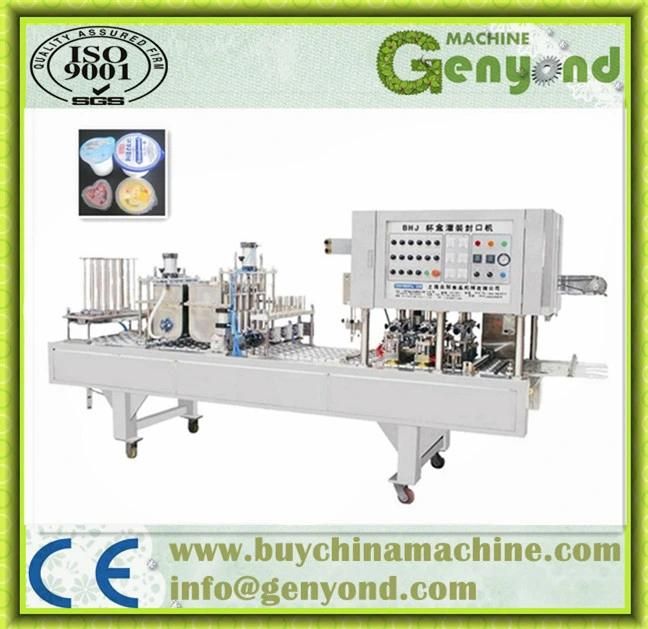

Technical Data of Filling&sealing machine
| Model NO. | Packing speed |
| CFD -2 | 1000-2000 pcs/hr |
| CFD -3 | 3000- 4000 pcs/hr |
| CFD -4 | 40000-5000 pcs/hr |
| CFD -6 | 6000-7000 pcs/hr |
| Model | CFD-24 |
| Packing Speed | 28800-36000pcs/h |
| Film Width | 320mm |
| Filling Content | 15-40ml |
| Power | 380v50Hz/220v50Hz |
| Electric Machinery Power | 0.75kw |
| Heat Up Power | 4kw |
| Air pressure | 0.5Mpa -0.7Mpa |
| Max. Air Consumption | 0.5cube meter/min |
| Outline Dimension | 3500*800*1700mm(L*W*H) |
| Timing Mode | Servo Motor Driving |
| Gross Weight | Aprox1500kg |
| Certification available: | Yes |
| Usage: | Filling and sealing |
