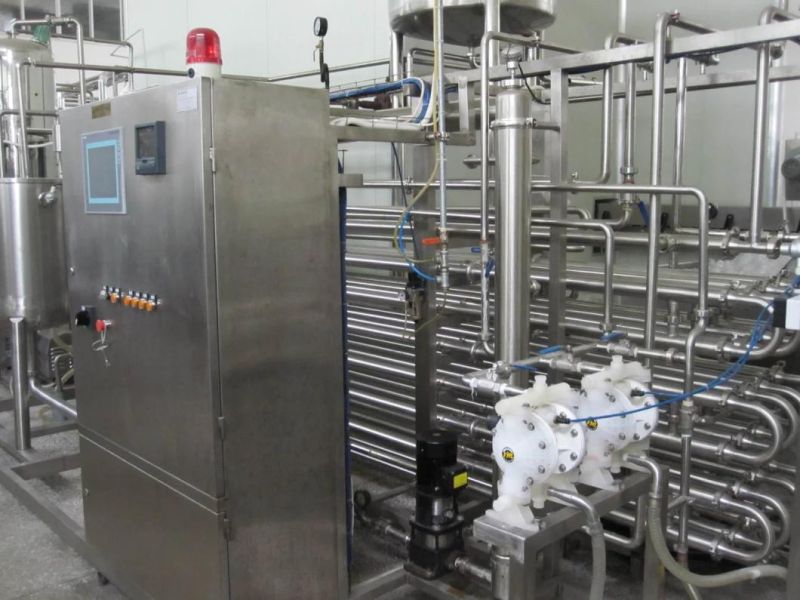

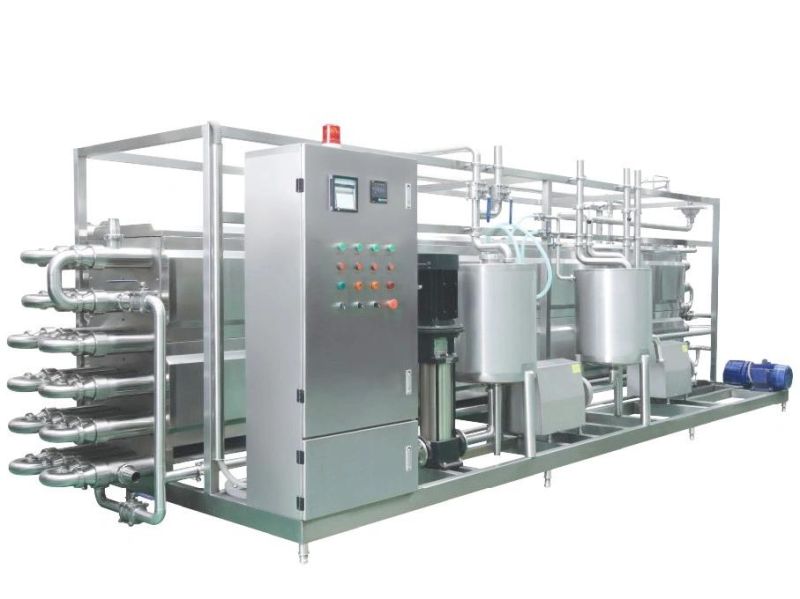

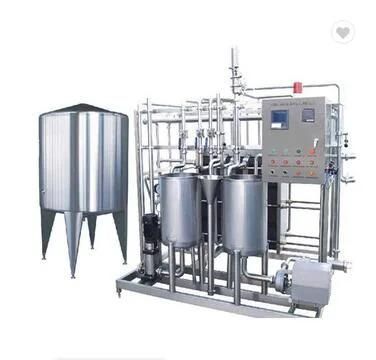

Milk & Beverage Aspatic Pipe Sterilizing Machine
Shanghai Genyond Technology Co., Ltd.- Customized：Non-Customized
- Certification：CE, ISO
- Scale：Small
- Automation：Automatic
- Principle：Steam
- Structure：Plate
Base Info
- Model NO.：GY
- Operation：Continuous
- Energy：Heat Sterilization
- Property：Physical Sterilization
- Type：Induction Electronics Sterilization Equipment
- Raw Material：SS304,SS316
- Transport Package：Standard Export
- Specification：500-5000L
- Trademark：GENYOND
- Origin：China
- Production Capacity：500L-5000L
Description
Model
GY-APS10
GY-APS20
GY-APS40
GY-APS50
Operational Capacity (t/h)
0.5~ 1.0
1.5~ 2.0
3.0~ 4.0
5.0~ 6.0
Sterilizing Temperature (°C)
115 ~ 135
115 ~ 135
115 ~ 135
115 ~ 135
Steam Pressure Used(Mpa)
<0.78
<0.78
<0.78
<0.78
High Temperature Heated Time
4 ~ 6S
4 ~ 6S
4 ~ 6S
4 ~ 6S
Inlet Material Temperature (°C)
(added cooling pipe)
<45
<45
<45
<45
Outlet Material Temperature (°C)
<65
<65
<65
<65
Steam Consumption (Kg/L)
<0.12
<0.15
<0.15
<0.20
Motor Power (kW)
1.5
2.2
3
4
Outside Size (mm)
920*920*1400
1100*1100*1700
1200*1200*1800
1400*1400*2000
Floor Area (m2)
0.8
1.0
1.5
2.0
weight (kg)
280
380
550
700
Application
Use Range: Dairy products, Fruit, Drink, Syrup, Sauce,
