• Model NO.：SLG65-III
• Material：Stainless Steel
• Motro Brand：Siemens Motor
• Inverter：Delta Brand
• Size：15.0*5.0.*5.0
• Snacks Raw Material：Corn Wheat Flour, Rice Flour......
• Model Name：Stainless Steel Puffed Snack Production Line
• Processing：Extrusion
• Transport Package：Woodcase
• Trademark：Jinan Datong Machinery Company
• Origin：Jinan
• HS Code：84361000
• Production Capacity：200-250kg,H

Basic Info.

Model NO. SLG65-III Material Stainless Steel Motro Brand Siemens Motor Inverter Delta Brand Size 15.0*5.0.*5.0 Snacks Raw Material Corn Wheat Flour, Rice Flour...... Model Name Stainless Steel Puffed Snack Production Line Processing Extrusion Transport Package Woodcase Trademark Jinan Datong Machinery Company Origin Jinan HS Code 84361000 Production Capacity 200-250kg/H

Product Description

Puffed Corn Rice Snacks Food Extruder/Machines/Corn Puff Snack line
Datong Company Info:

Jinan Datong Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.Our company congregates an exceptional food machine engineering team, personal customer service center and highquality manufacturing capabilities have evolved exponentially,We are working hard on explore constantly not only in the research of extrusion technology, but also in food technics to benefit our clients producing newfangled food in their markets. It making us become one of the preeminent providers of reliable extrusion equipment world-wide.

Product Certificate   1. Description of Puff Corn Snack Production Line /Food snack extruder machine:
Corn Snacks Food Extruder Machinery adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
2. Snacks Raw materials:
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.
3. Snacks food Products shapes:
Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
4.Snacks extruder machine Capacity:
    60-80kg/h 100-150kg/h, 200-240kg/h, 500kg/h 800kg/h

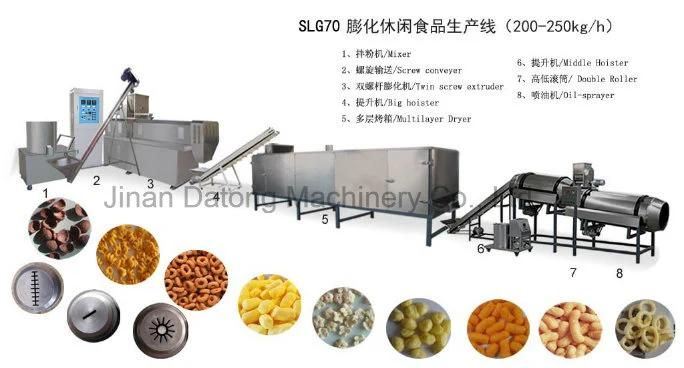

5. Corn snacks processing line Flow chart:
Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system

6. China standard industrial Voltage for the machine:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v 480v...).

Model/Name	SLG65-III snacks extruder	SLG70-III Snacks machine	SLG85-III snacks processing line
Output(kg/h)	100-150	200-250	300-500
Install Power	50.00kw	70.00kw	150.00 kw
Line size	20.0*4.0*5.0	25.0*4.0*5.0	30.0*4.0*5.0



Double screw food extruder Features:

1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.

Screw Parameter:

Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Wear sleeve and screw sleeve are made of high wear-resistant alloy steel, to reduce abrasion and prolong service life.



Machine Parts: dryer

1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
5. Adjustable transit speed of net belt with accurate temperature control device.
6. Suitable to dry non-fried extrusion snacks, nutritional powder, bread crumb, pet food, soybean protein, etc.

Name: Flavouring system

1. Plant oil or other nutritious additives are sprayed on the surface of the pellets to improve palatability and conversion rate of feed.
2. Adopting drum pattern and oil atomization spraying system together with continuous and automatic operation.
3. Widely used for spraying fat, vitamin, substrate and medication onto the surface of extrusion feed.



Vertical packing machine:

1.It can packing 36-50g per bag snacks pellet.

2.Please let me know your require bag size and kilo,we can recommend u some model for you.

3.we can help u adujst the packing machine together.

Packing Details:

Packing: inside plastic bag, outside wooden case for Extruded Food Wheat Corn Snack Pellet Making Machine (Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Transportation: shipping, train, express or upon clients' demands.

Datong Service

1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Extruded Food Wheat Corn Snack Pellet Making Machine.
