• Transport Package：Export Standard Wooden Case
• Model NO.：fta
• Trademark：chengli
• Origin：China
• Production Capacity：100kg Per Hour to 300ton Per Day

Basic Info.

Model NO. fta Transport Package Export Standard Wooden Case Trademark chengli Origin China Production Capacity 100kg Per Hour to 300ton Per Day

Product Description

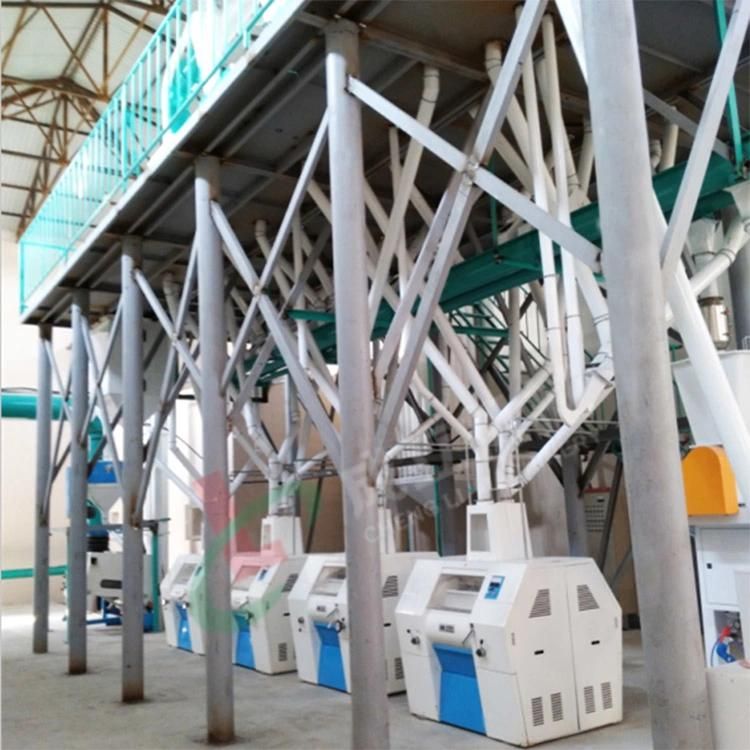

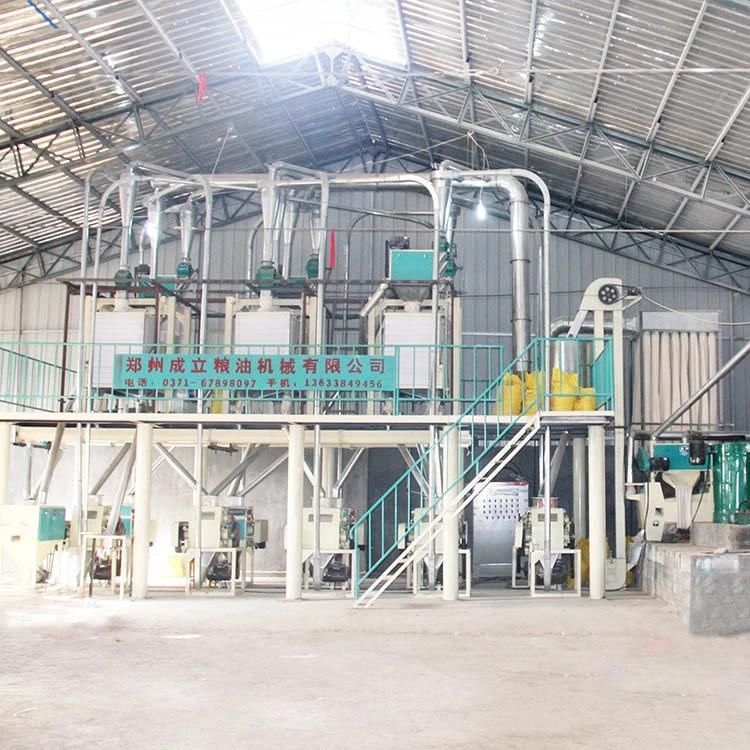

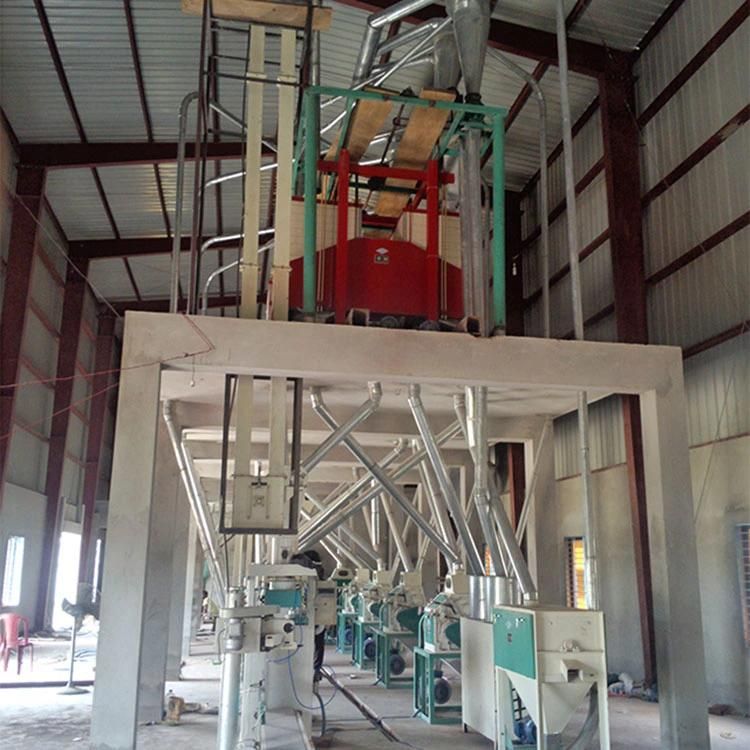

50-60tpd wheat flour mill plant is very popular in many countries,,this type flour mill machine is middle size flour mill plant, clients can install themselves under our guide, if clients insist, we can send our engineers to install it.
It is suitable for industrial business to process supplied material of grain. With high productivity and low power consumption, it functions well and is easy to maintain.
Henan grain and Oil Machinery Co., Ltd. is a grain equipment manufacturer. It produces flour processing machinery, complete set of flour processing machinery, complete set of flour processing equipment, complete set of flour processing equipment and flour processing equipment, and adopts advanced flour processing technology.
50tpd wheat flour mill plant technical data:

1. capacity: 50 ton of input of wheat per 24hours
2. flour extraction rate: standard flour 75%-78%
3. Power supply: about 149kw, 380v/50Hz.
4. power consumption: 60 kw/h in processing one ton of wheat
5. workshop style and dimension: triangle-framed workshop with 20 m long, 8m wide and 7.8 m under the beam

Processing technology
1. technology of cleaning parts: one set of vibrating sieve, one set de-stoner, two sets of raw wheat scourer, one set of washer-stoner, one set of clean wheat scourer and one set of plane revolve sifter, consists of twice screening, twice de-stone, twice scouring, once washing and twice air separation.
2. Technology of flour milling parts: ten sets of 6F 2250 roller mill, consists of 4B (breaking system) and 4R (reduction system) and 1S (Scratch system).


Technical parameters of 60 ton flour mill
1, Cleaning room process: three sieves, two hits, two stone removal, one wheat washing, two magnetic separation, two dedusting and three lifting are adopted. The cleaning effect of the process is good, with high output, low power consumption, good dust removal effect and dust free dust.

1. The process of pulverizing room: adopting four skins and five cores, one slag, one tail, one cleaning powder and two magnetic separation. The classification adopts in screen classification and one brush of bran; the screening powder adopts two high square flat screen, which has good classification effect, high production efficiency and convenient maintenance; the pulverizer adopts pneumatic pulverizer, double roller feeding, synchronous belt transmission, high milling precision, stable performance, high production efficiency, low noise, no dust and easy maintenance.

Application and After-Sales Service


Warranty: one year after successful commissioning
Training: we offer free training of your workers

Expected installation time: about 60 working days for 1 engineers;
