• Model NO.：XGF
• Transport Package：Wooden Export Package
• Specification：ISO9001
• Trademark：NC
• Origin：Jiangsu, China
• Production Capacity：12 Sets,Month

Basic Info.

Model NO. XGF Transport Package Wooden Export Package Specification ISO9001 Trademark NC Origin Jiangsu, China Production Capacity 12 Sets/Month

Product Description

Bottles Water barrel bottling machine with CE Standard
Features
1). This machine operates easily, with compact structure, perfect control system and high level of automation.
2). The filling process of different types of bottles can be reached only by changing the star-wheel
3). The parts contacting with product is made of quality SUS, anti-corrosive, and easy to clean.
4). By adopting high speed filling valve, the liquid level is precise and no waste is to increase. That guarantees the demand of modern filling technology.
5). The capping head adopts constant torque magnetic device to guarantee capping quality, without any damage to the cap.
6). This machine has a highly efficient cap arranging system, perfect cap feeding and protection device.
7). By adopting overload protection system, it can ensure the protection of safety of the operator and equipment.
8). The operating system bears the function of production speed control, cap-shortage checking, production suspension when bottles-blocked, and counting of outputs.
9). The electric equipment and pneumatic parts are of brand name of the world.

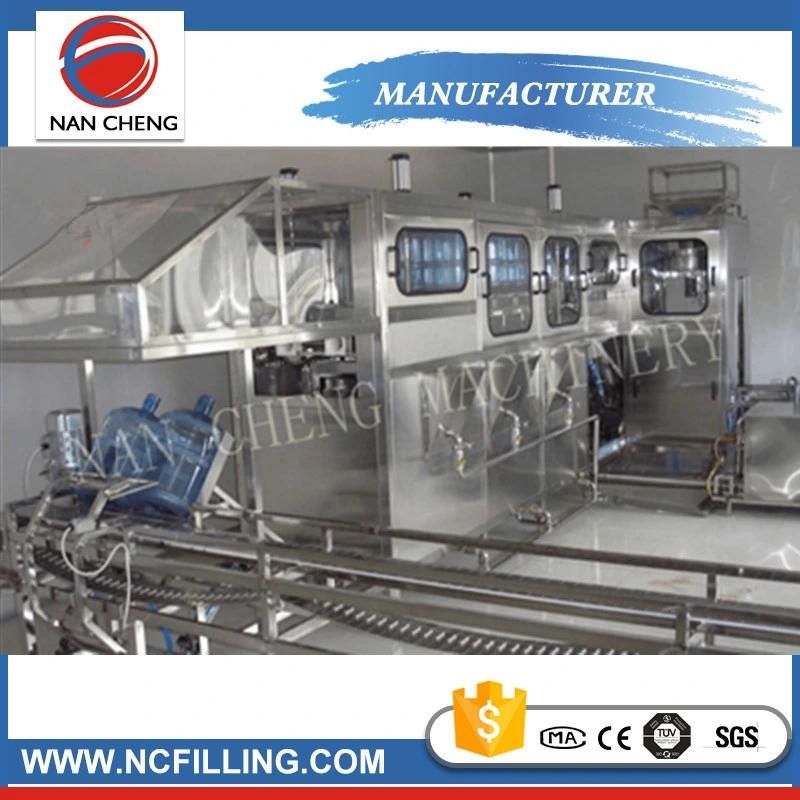

Small Business 5 Gallon Water Bottling Plant/ Filling Machine



This filling line specially productes 3-5 gallons barreled drinking water, with type 120 type, 150 type, 200 type, 300 type, 450 type, 900 type and 1200 type. It integrates bottle washing, filling and capping into one unit.





1. water treatment

2. Outside Barrel Washer

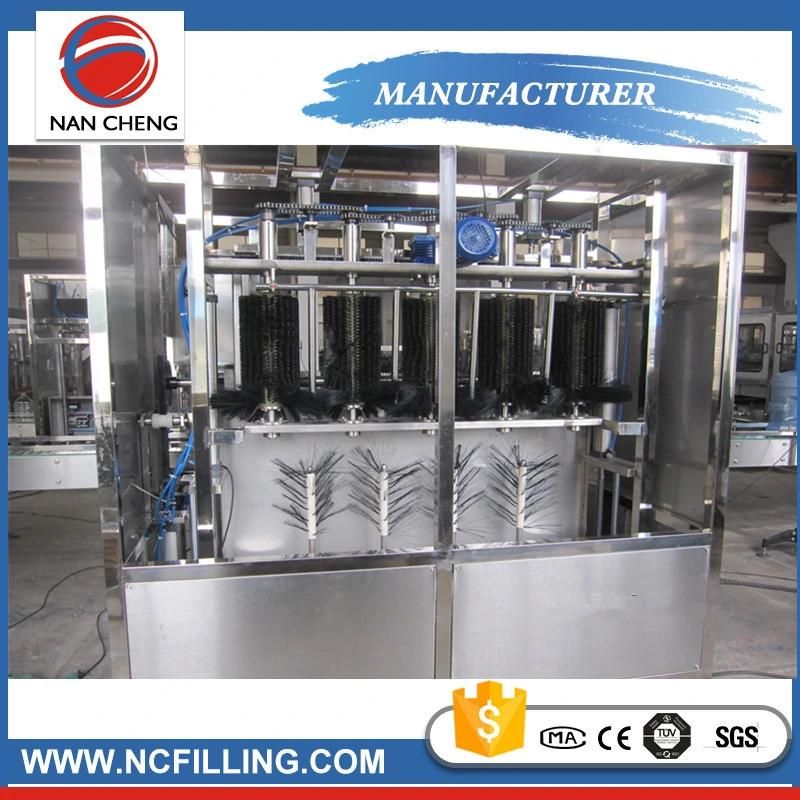

3. Inside Barrel Washer

4. Decapper

5. Automatic barrel Loading Machine

6. Rinser/Filler/Capper Monoblock

 7. Heating Shrink Tunnel

 8. Conveyor System

 9. Complete Line Control System

10.Bottle blowing machine



1) The empty barrels get into the machine by transmission chain automatically. After two times inspection by count sensor, the barrels will be blocked by blocking cylinder. At the same time, rear de-cap cylinder down to cover the cap; rear cap grabbing cylinder up to grab cap. Then the de-cap cylinder reset to de-cap the cap.

2) After several seconds, the two de-cap cylinders reset, then cap grabbing cylinder down to release caps. Meanwhile, the cap blowing electromagnetic valve starts to blow caps. The barrels that have no cap get out of the decap machine automatically. After two times inspection by count sensor, de-cap and blocking cylinder reset.

3) After inside and outside brushing, the empty barrels get into the automatic feeding system.

4) When the number of barrels reaches 4, the blocking cylinder will stop the barrels

5) rear barrel pushing cylinder reset after pushing barrels on barrel turning shelf

6) rear barrel reversing cylinder turn barrels to flat and be ready to get in.

7) The rear barrel pushing cylinder push barrels into barrel washing base then reset.

8) Barrel washing spindle works, then barrels moves a working position to be inverted by the action of conveyor chain

Service Advantage:
1.Competitive price with good quality.
2.ODM/OEM service available.
3.In-time delivery guarantee.
4.One year warranty for whole machine.
5.One year spare parts free of charge.
6.Engineers available for installation and setting up.
7.Training of workers to handle operation.
