3A Sanitary Hygienic Lobe Pump for Milk Dairy Oil
Donjoy Technology Co., Ltd.- Condition：New
- Voltage：AC110V, 220-240V, 360-400V, 420-460V, 630-690V, 50
- Composition：Rotary Lobe Pump
- End Connections：Butt-Weld, Tri-Clamp, Thread, Flange
- Body Material：AISI 304 (1.4301), AISI 316L (1.4404),Iron Gear
- Body Types：Horizontal Type (Tul) & Vertical Type (Tur)
Base Info
- Mechanisal Seal：Single Seal (Standard), Double Mechanical Seal (Op
- Maximum Temperature：150degree,302f
- Product Name：3A Sanitary Hygienic Lobe Pump
- Keyword：3A Sanitary Hygienic Lobe Pump
- Transport Package：Wooden Case
- Trademark：DONJOY
- Origin：China
- HS Code：8413810090
Description
High Purity, Low Noise
High pressure to 12 bar

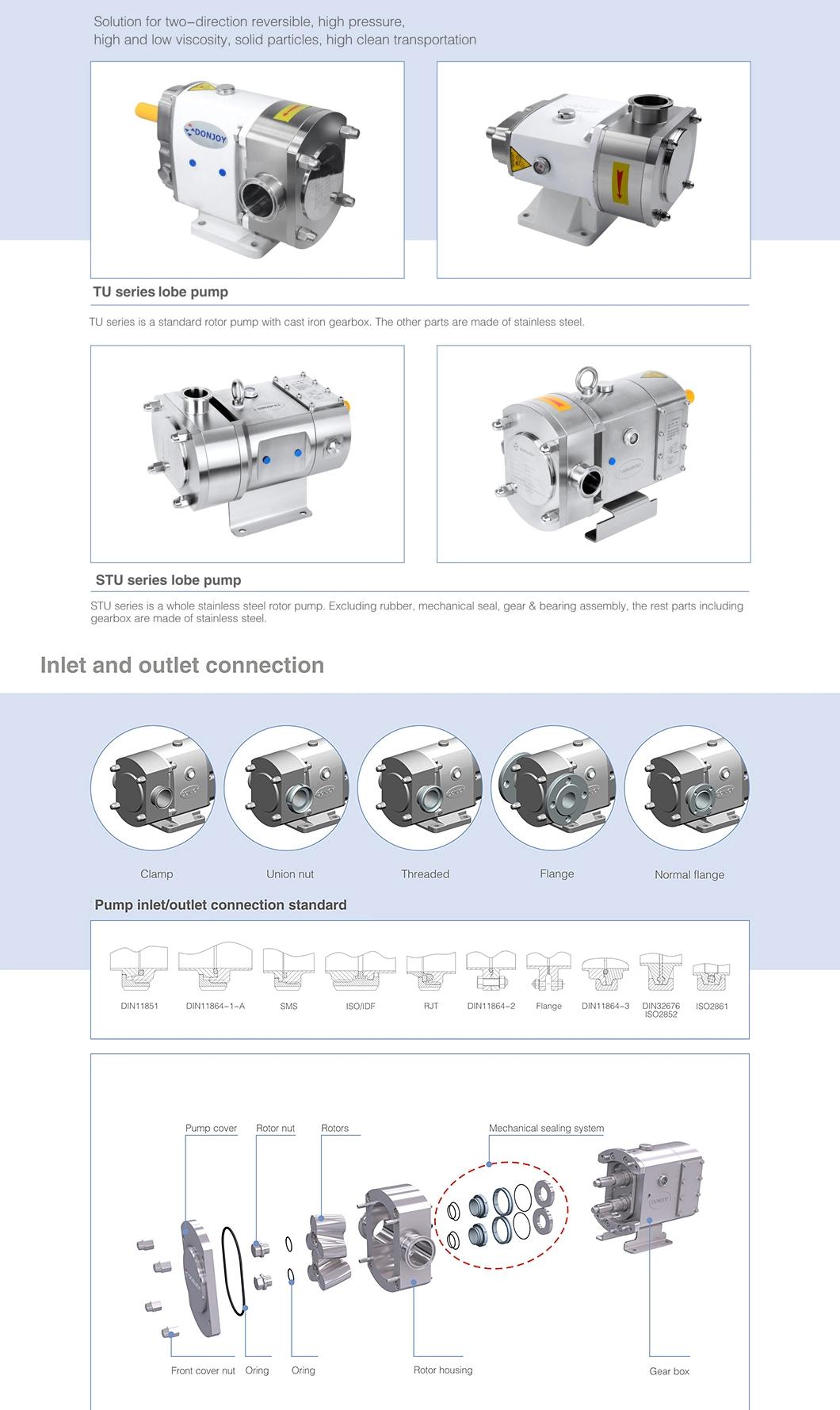

Horizontal Type (TUL) & Vertical Type (TUR)

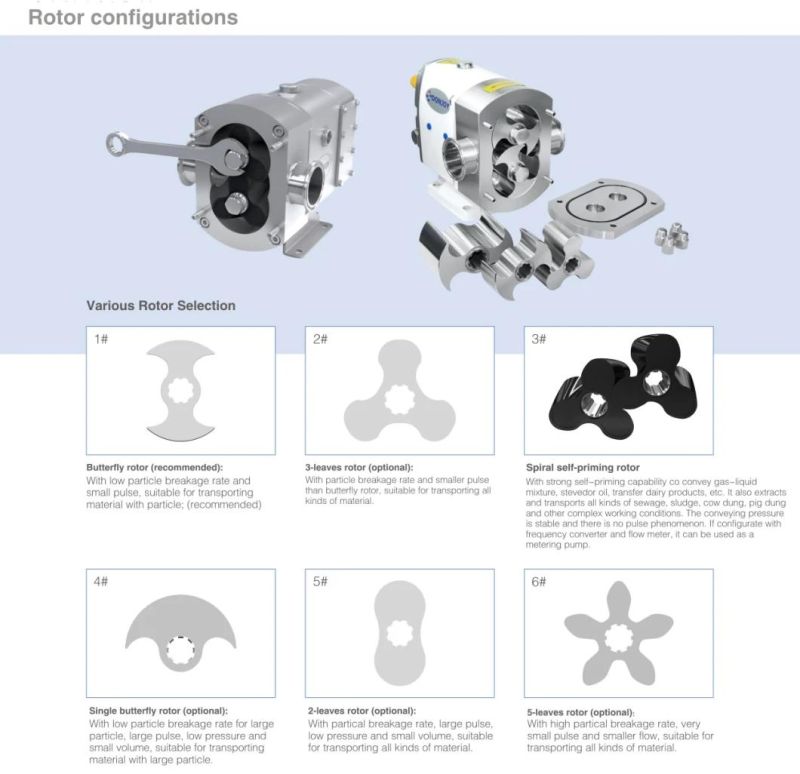

Variety of lobe options: butterfly, single, bi-wing, and tri-lobe.
Hygienic designed according to 3A standard

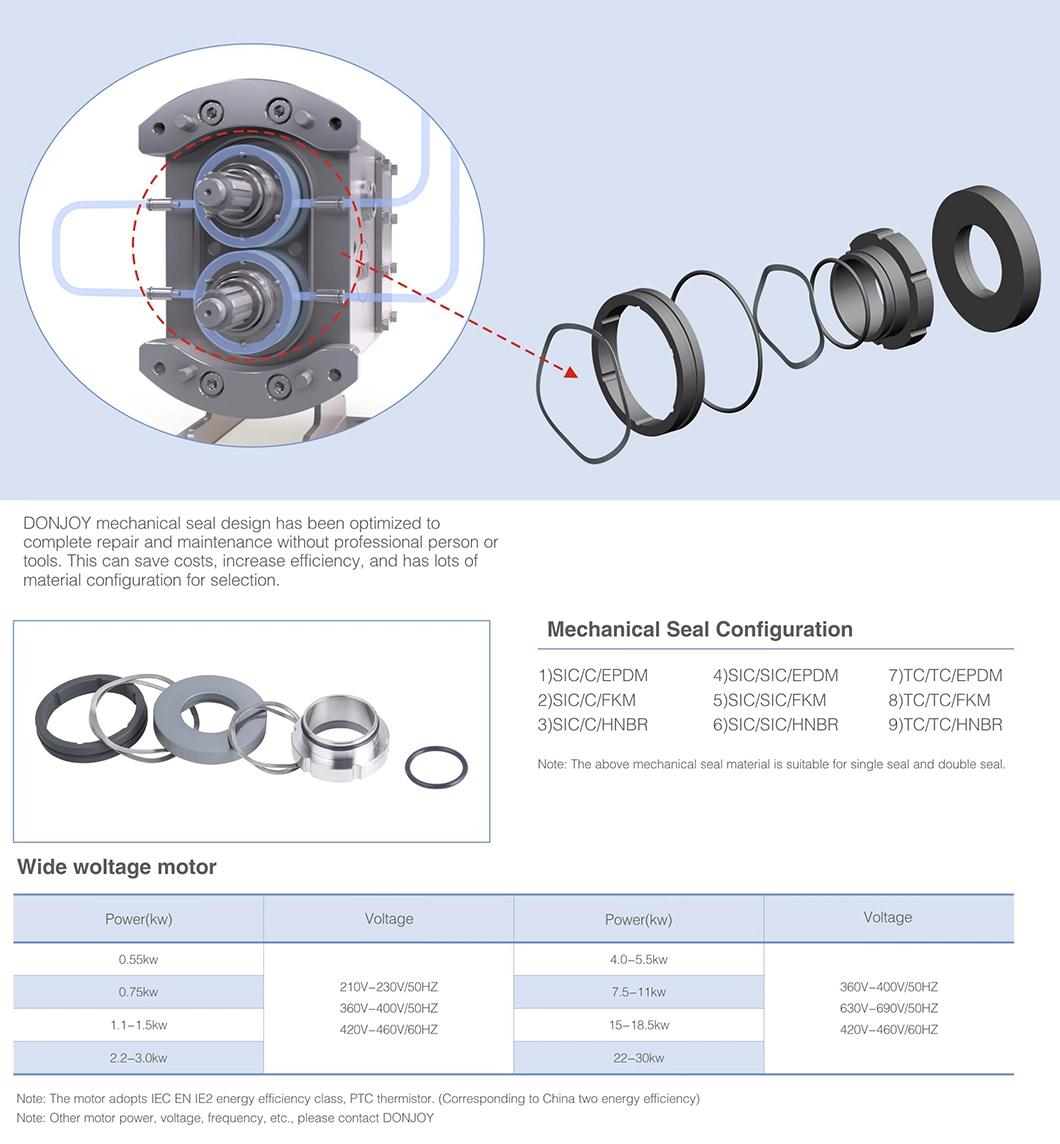

Sanitary mechanical seal, easy cleaning and maintenance
Applied to CIP cleaning and SIP sterilization

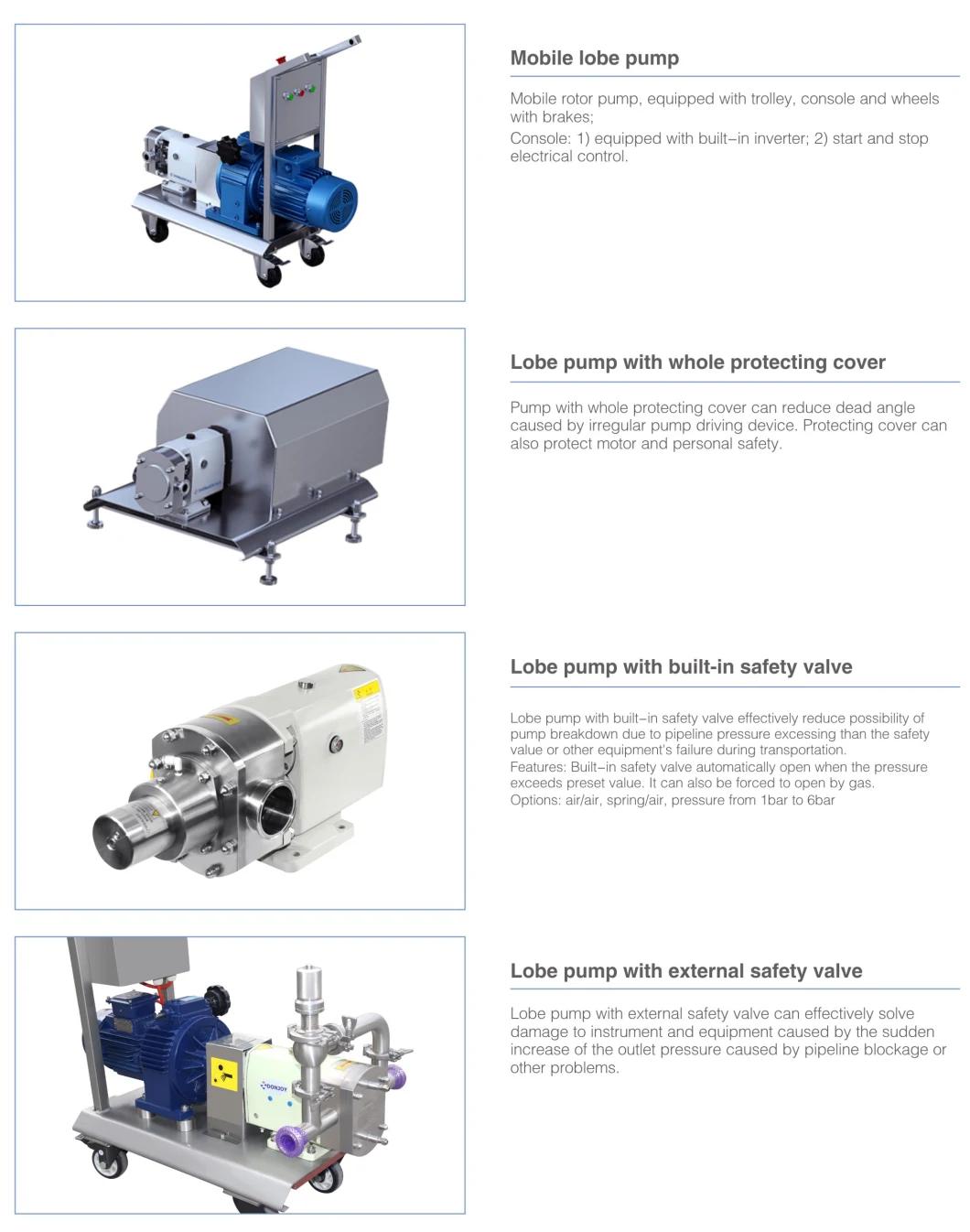

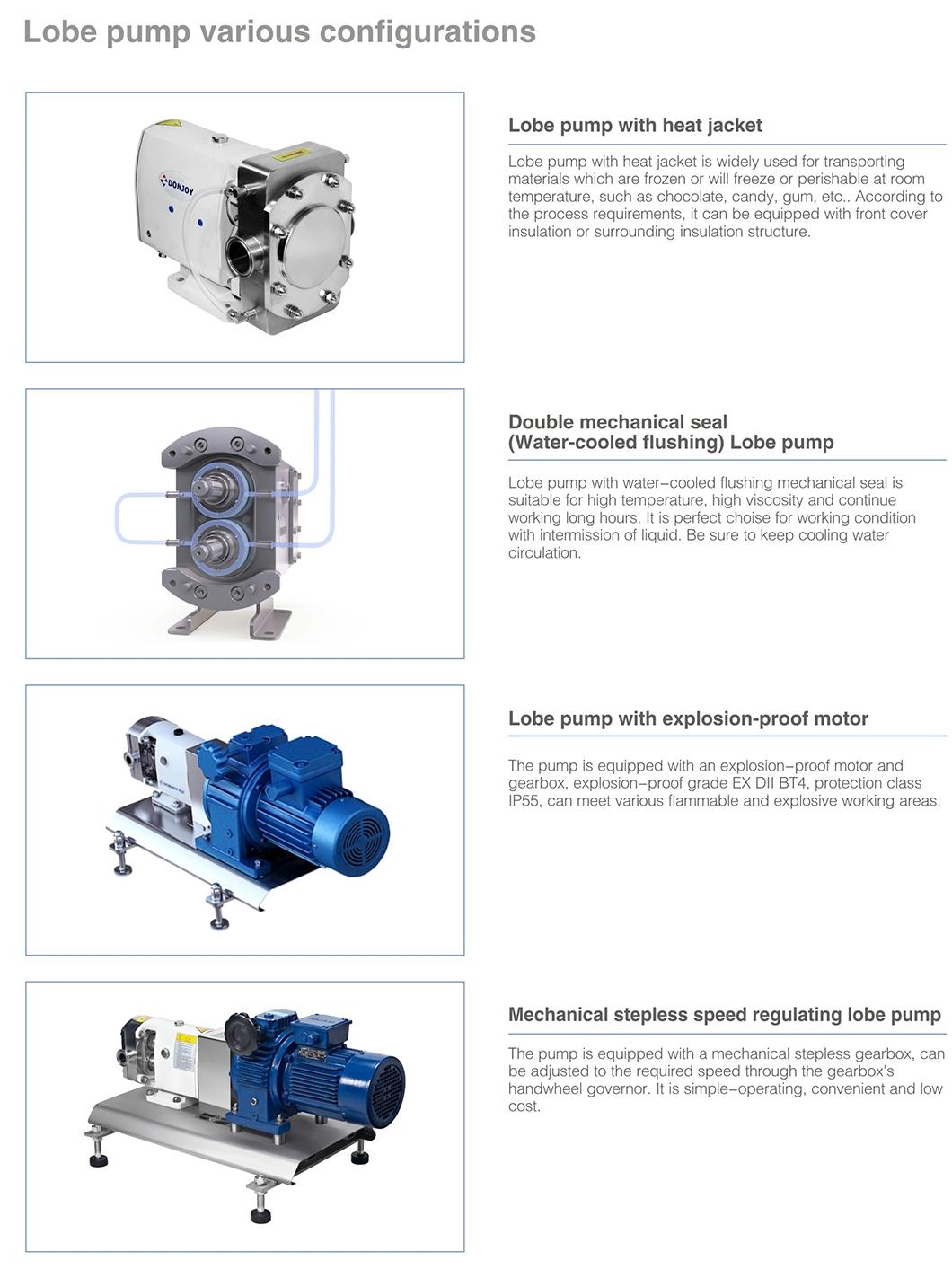

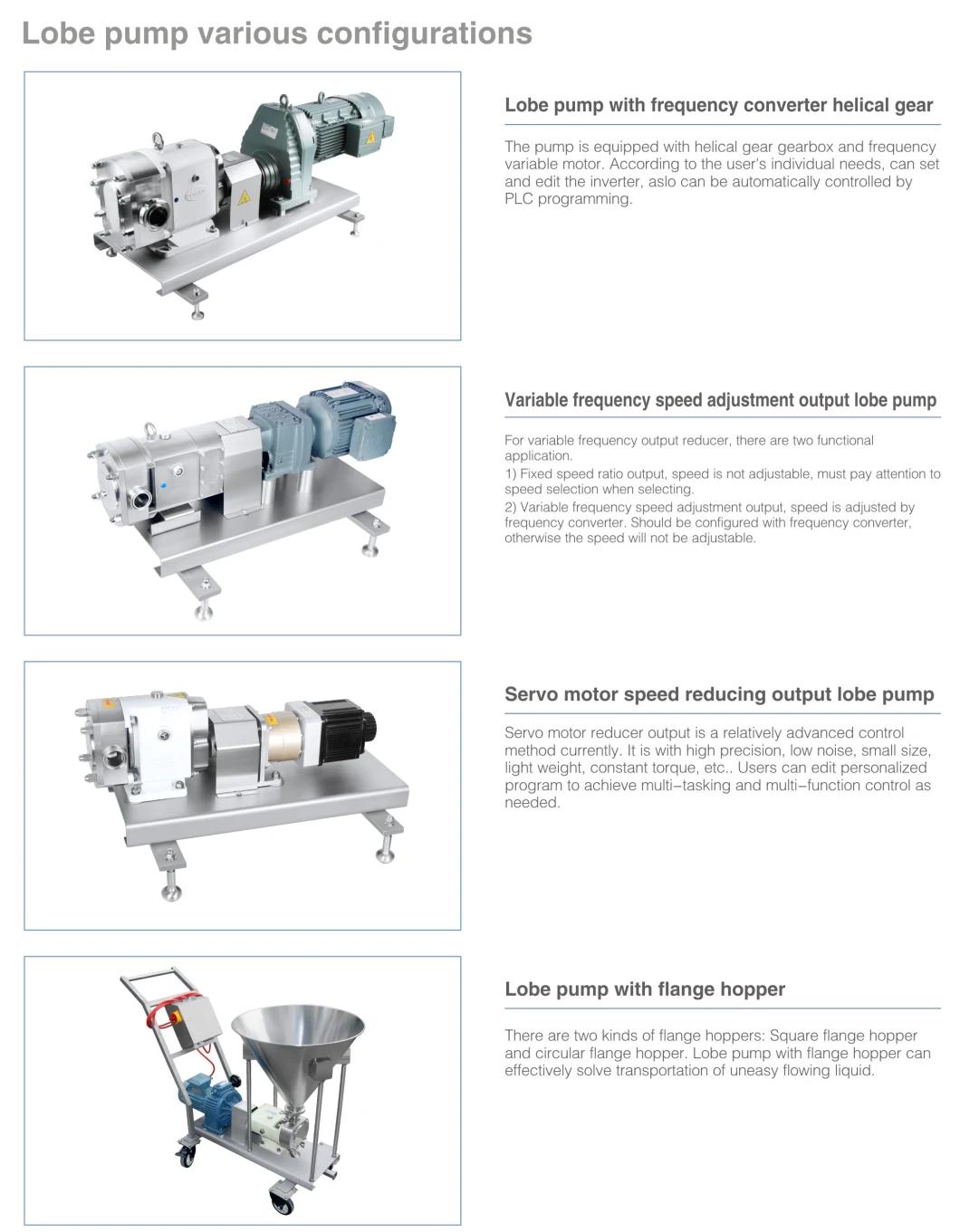

Different drives and devices
1) Manual adjustment, continuously variable transmission
2) Variable - frequency motor adjustment
3) Fixed speed output transmission
Motor utilize the IEC EN IE2, PTC thermistor.
If you have any inquiry, please leave message below and "Click Send "
