Candy Depositing Production Line
Ningbo Youlu Machinery Technology Co., Ltd.- Certification：CE
- Power Source：Electric
- Process：Syrup Pouring
- Automatic Grade：Automatic
- Application：Candy
- Customized：Customized
Base Info
- Model NO.：CANDY DEPOSITING PRODUCTION LINE
- Capacity：150-600kg,H
- Material：Stainless Steel
- Transport Package：with Wooden Case
- Specification：16000x2000x2500mm
- Trademark：YOULU
- Origin：China
- HS Code：8438900000
- Production Capacity：50sets,Year
Description
Basic Info.
Model NO. CANDY DEPOSITING PRODUCTION LINE Capacity 150-600kg/H Material Stainless Steel Transport Package with Wooden Case Specification 16000x2000x2500mm Trademark YOULU Origin China HS Code 8438900000 Production Capacity 50sets/YearProduct Description

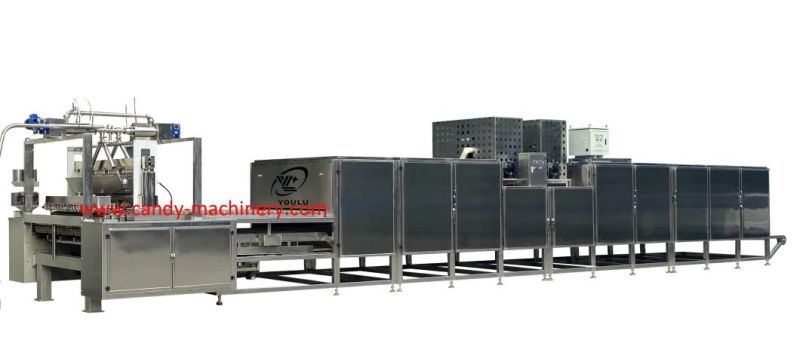

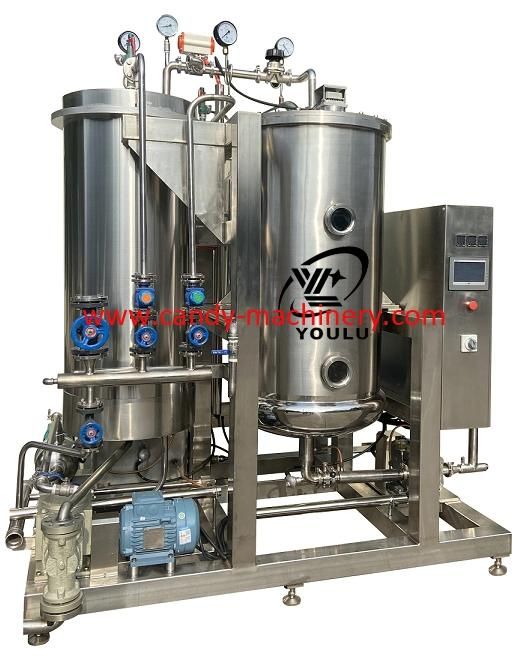

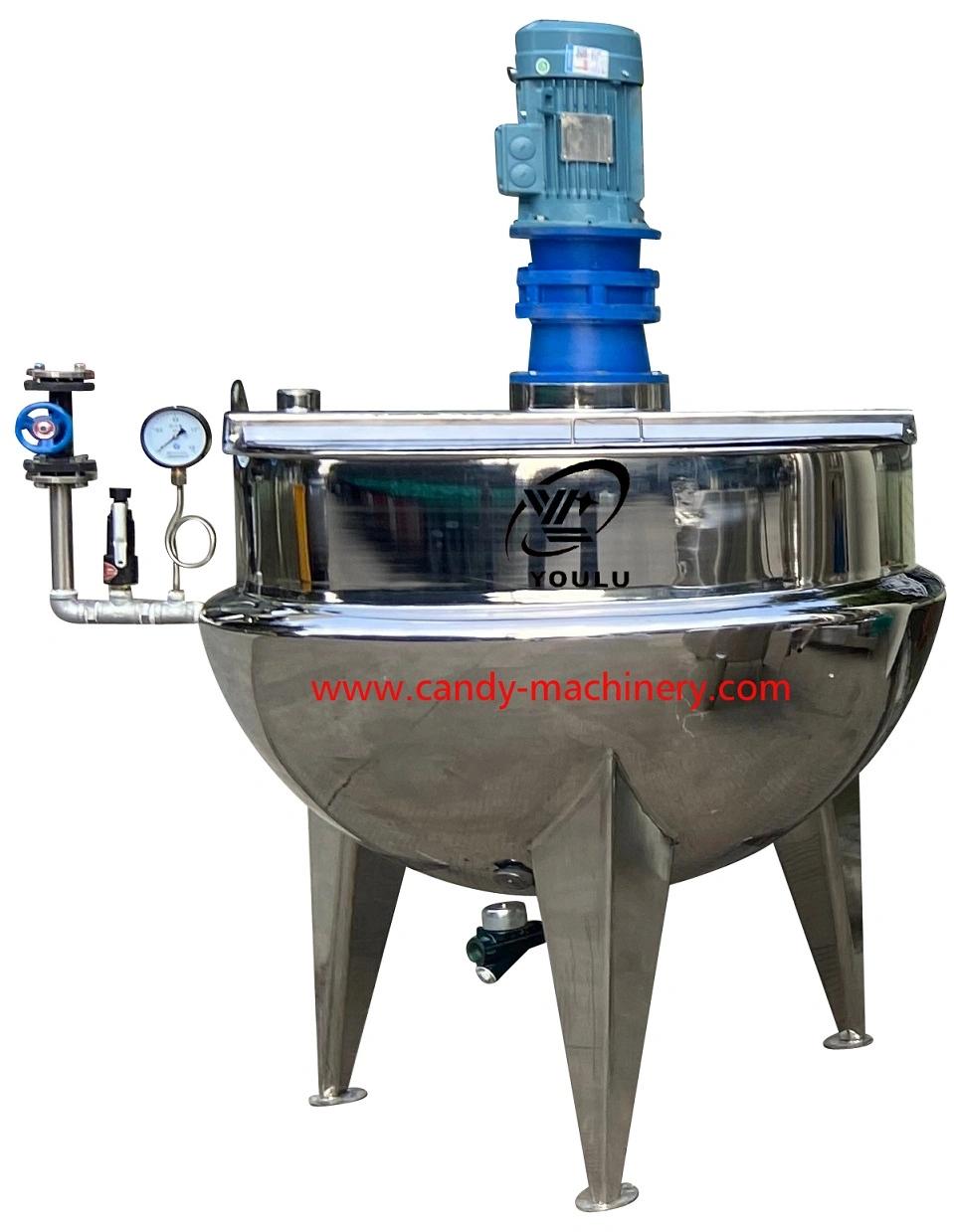

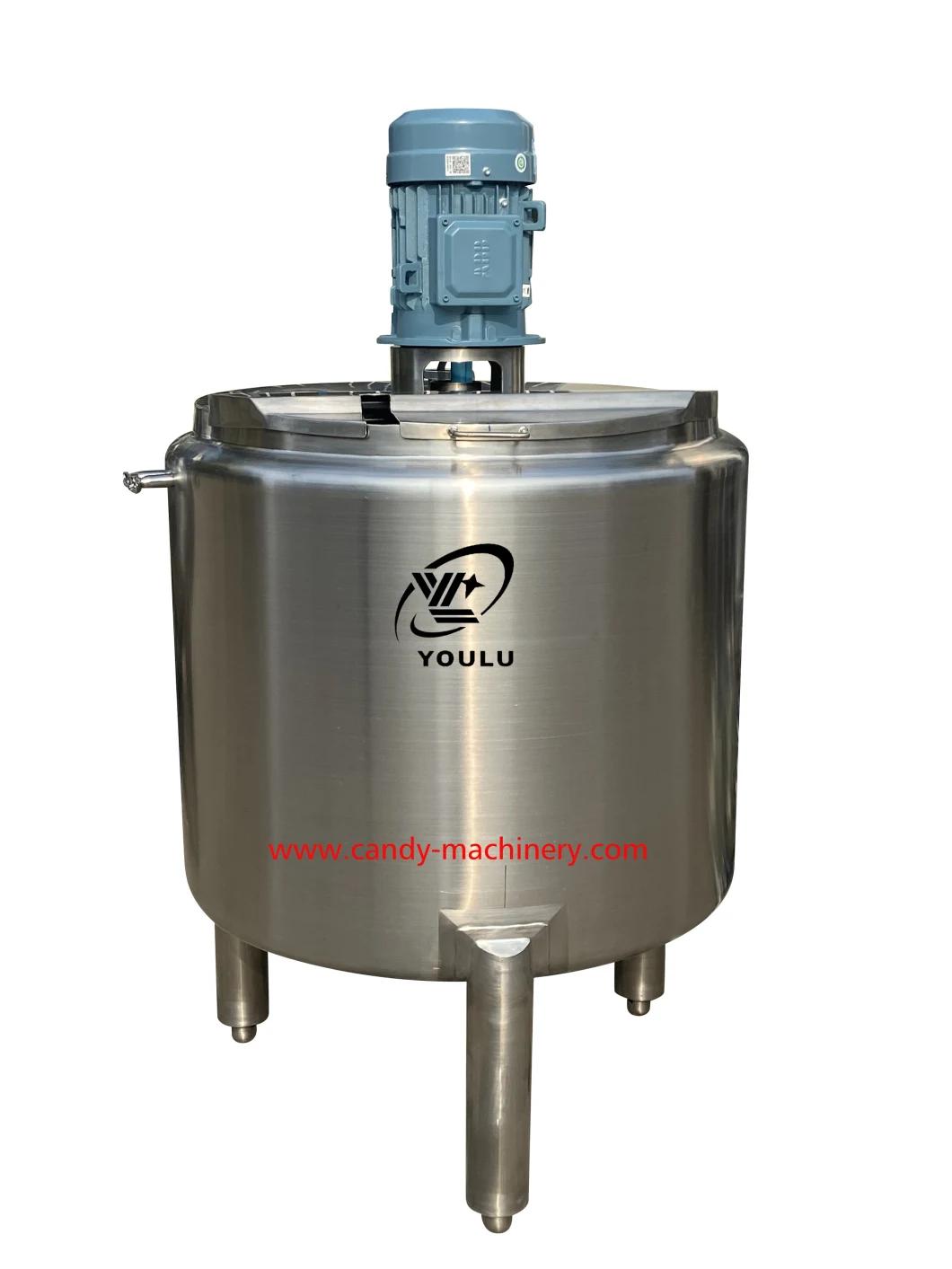

ApplicationThe machine is the most advanced equipment for producing jelly candy . It can be produce single color, two color jelly candy and jelly candy with center filling .The machine has high quality ,high output and it can be produce high quality jelly candy . The machine consists of dissolving tank, gear pump,storage tank, vacuum cooker, Depositing machine with cooling tunnel .The finished candy make from this machine have transparent and smooth surface and good taste.
The machine with servo driver and control the every action by Motion Intelligent Control card to Achieve precise depositing, high performance
Technical Details
| Model | YL-JCM-I | YL-JCM-II | YL-JCM-V | YL-JCM-V |
| Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
| Power | 30kw | 45kw | 60kw | 75kw |
| Air Consumption | 0.5m3/min | 0.5m3/min | 0.5m3/min | 0.5m3/min |
| Steam Consumption | 450kg/h | 450kg/h | 450kg/h | 450kg/h |
| Steam Pressure | P<0.7Mpa | P<0.7Mpa | P<0.7Mpa | P<0.7Mpa |
| Water Consumption | 2200L/h | 2200L/h | 2200L/h | 2200L/h |
| Humidity | 55% | 55% | 55% | 55% |
| Dimension | 1600X1500X2700mm | 1600X2000X2700mm | 1600X2360X2700mm | 1600X2720X2700mm |
| Weight | 6000kg | 7500kg | 8500kg | 9500kg |
