• Model NO.：SH -500L- 20000L
• Name：Customized Sanitary Stainless Steel Storage Tank
• Material：Stainless Steel 304 ,316 ,316L
• Wall：Single Wall ,Double Wall ,Jacketed Wall
• Packing：Wooden Box
• Mixer：with Mixer ,Without Mixer
• Warranty：One Year
• MOQ：1 Set
• Delivery：10 Days
• Cusomize /OEM：Yes
• Heating：Yes ,No
• Transport Package：Wood Box
• Specification：840x1000x2250
• Trademark：KAIQUAN
• Origin：China
• HS Code：73090000
• Production Capacity：50000PC Per Year

Basic Info.

Model NO. SH -500L- 20000L Name Customized Sanitary Stainless Steel Storage Tank Material Stainless Steel 304 /316 /316L Wall Single Wall /Double Wall /Jacketed Wall Packing Wooden Box Mixer with Mixer /Without Mixer Warranty One Year MOQ 1 Set Delivery 10 Days Cusomize /OEM Yes Heating Yes /No Transport Package Wood Box Specification 840x1000x2250 Trademark KAIQUAN Origin China HS Code 73090000 Production Capacity 50000PC Per Year

Product Description

Storage tank

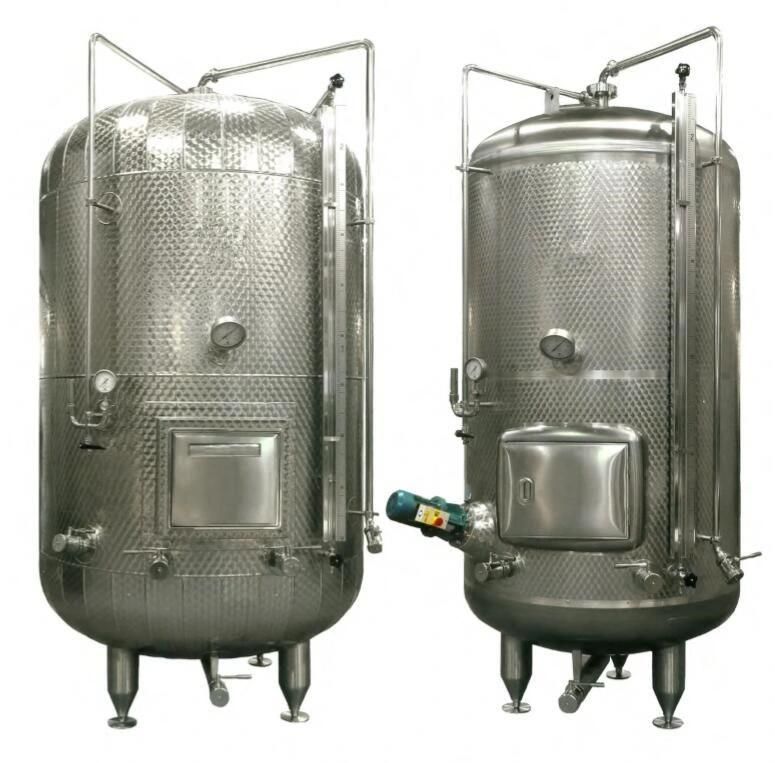

Customized Sanitary Stainless Steel Storage Tank




This series of stainless steel storage tank is vertical type with single-layer sanitary container equipment. It is the used buffer and liquid storage facilities in the pharmaceutical, biotechnology, food, beverage, wine, spices, chemicals, oil and other industries.
Storage tank usage
1. This tank can be used as liquid storage tank, mixing tank, temporary storage tank, water storage tank and so on.
2. It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
Storage tank characteristics
1. It is suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤ 0.4µ M); The welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.

Volume(L)	Dimension(mm)	Total height(mm)	Inlet and outlet(mm)	Insulation(mm)
500	840 x 1000	2250	38	50
600	920 x 1000	2300	38	50
700	990 x 1000	2300	38	50
800	950 x 1220	2500	38	50
900	1010 x 1220	2500	38	50
1000	1060 x 1220	2550	51	50
1500	1160 x 1500	2850	51	50
2000	1340 x 1500	2900	51	50
3000	1410 x 2000	3400	51	50
4000	1620 x 2000	3450	51	50
5000	1810 x 2000	3500	51	50
6000	1980 x 2000	3550	51	50
7000	1930 x 2440	4000	51	50
8000	2060 x 2440	4000	51	50
9000	2180 x 2440	4050	51	50
10000	2300 x 2440	4050	51	50
12000	2270 x 3000	4600	51	50
15000	2530 x 3000	4700	51	50
20000	2640 x 3660	5400	51	50

Customized Sanitary Stainless Steel Storage Tank
