• Model NO.：KQ Series
• Application：Milk, Yogurt, Milk Powder, Cheese
• Customized：Customized
• Name and Description：500L to 15000L Milk Cooling Tank Horizontal Milk C
• Volume：100L-50000L
• Product Material：Stainless Steel 304 ,316
• Cooling Temperature：-4 Degree
• Material：Stainless Steel 304,316
• Power(W)：3kw to 30kw
• Product Certification：CE
• Power Supply：3 Phase 380-420V 50Hz
• Compressor：USA Copeland
• Delviery：10 Days
• Cleaning：CIP Spray Ball
• Motor Brand：Siemens ,ABB ,China Brand
• Spare Parts：Available
• Packing：Wooden Box
• Control Box：Yes
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：847982009
• Production Capacity：1000 Units,Month

Type
KQ-1T

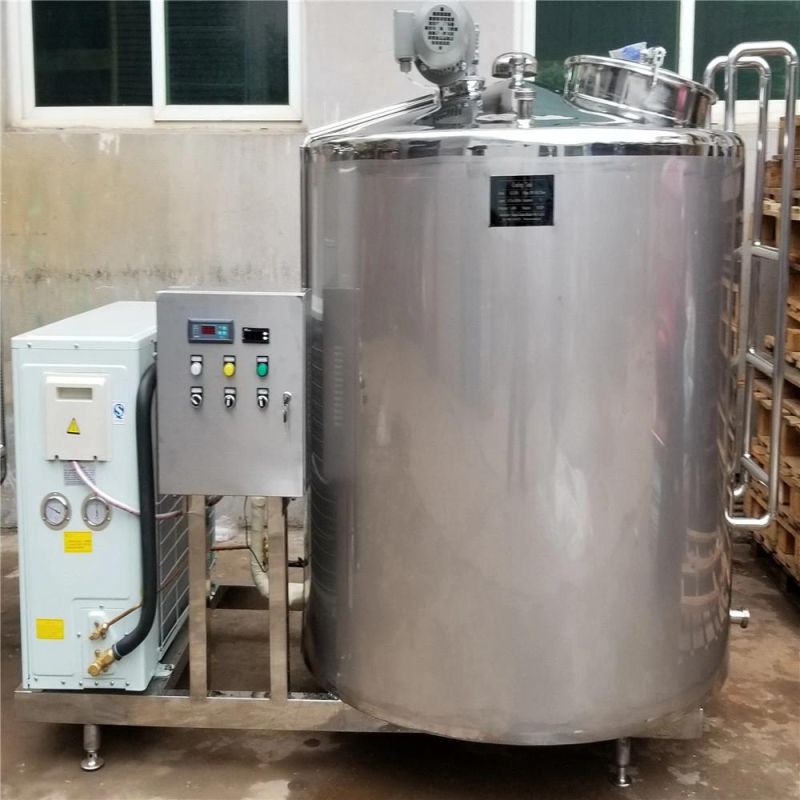

Vertical type
KQ-2T
Laying type
KQ-3T
Laying type
KQ-5T
 Laying type
KQ-6T
 Laying type
KQ-8T
 Laying type
KQ-10T
 Laying type
Capacity(L)
1000
2000
3000
5000
6000
8000
10000L
Refrigerating Output(W)
9000
15000
22000
37000
38000
55000
74000
Refrigerating  Fluid(R)
R404/R22
R404/R22
R404/R22
R404/R22
R404/R22
R404/R22
R404/R22
Insulating Property
≤1C/4h
≤1C/4h
≤1C/5h
≤1C/5h
≤1C/5h
≤1C/5h
≤1C/6h
Agitator Speed
36r/min
36r/min
36r/min
36r/min
36r/min
36r/min
36r/min
Power (Kw)
3.8
5.9
7.5
10.5
11
13
19.2
Voltage
380V/50Hz,3phases
380V/50Hz,3phases
380V/50Hz,3phases
380V/50Hz,3phases
380V/50Hz,3phases
380V/50Hz,3phases
380V/50Hz,3phases
Dimension(mm)
1800*1200*1500
3400*1550*1750
3600*1700*1900
3900*2050*2150
4500*2050*2150
6300*2050*2250
8000*2100*2400
Weight(Approximately)
0.6T
 0.75T
0.9T
1.1T

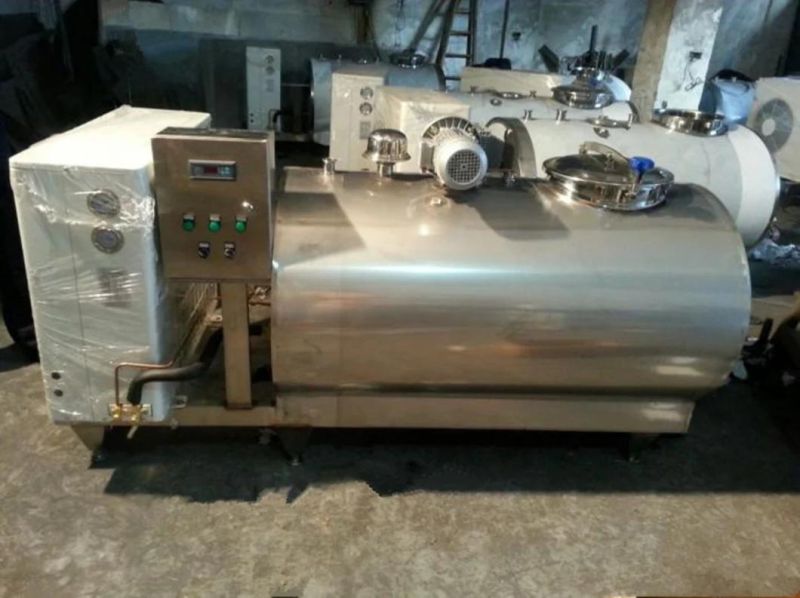

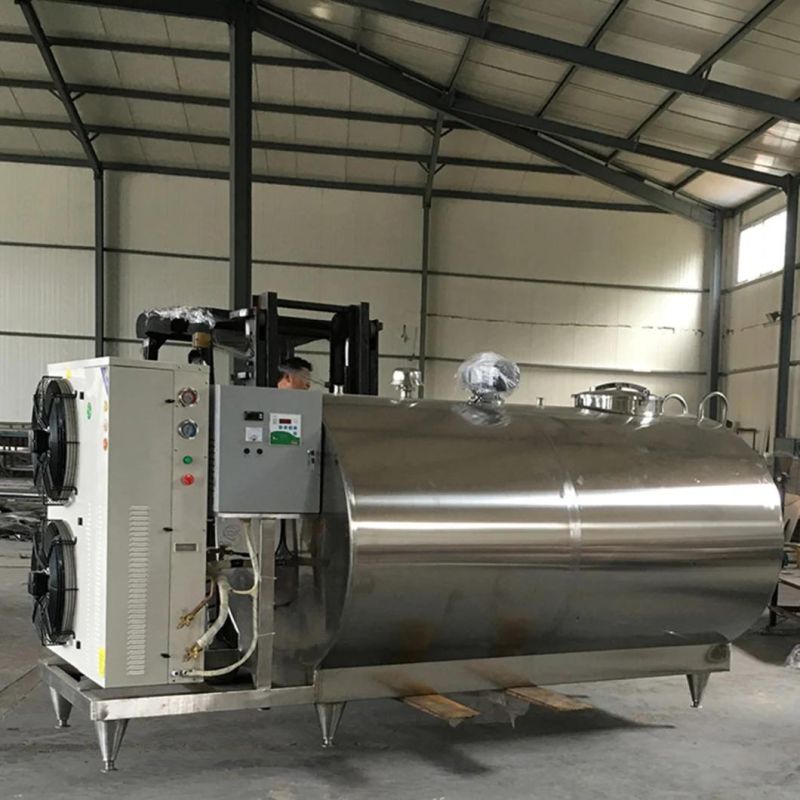

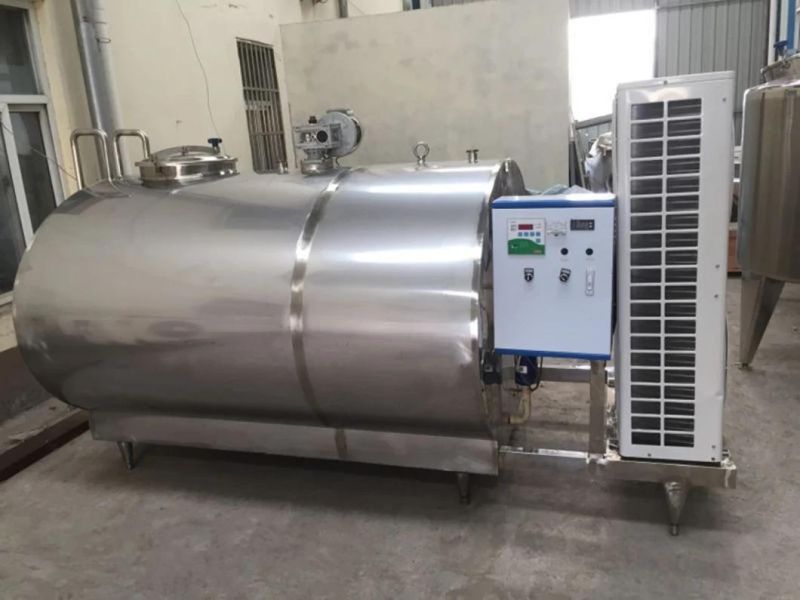

SS 304/316 Milk cooling tank, easy to cool the fresh milk temperature down to 4centigrade
Best Equipment for storage the fresh milk
We also can help you to desigh and plan the tank according to your requirement

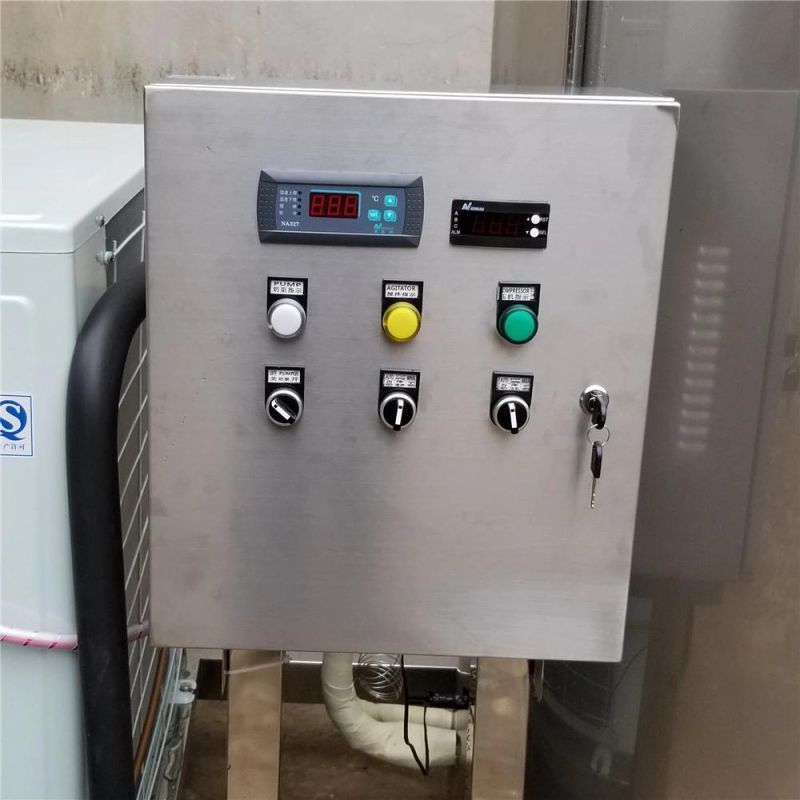

(1)The temperature controller's lower temperature limit is 4° Cand the higher temperature limit is 6° C. The machine will auto-stop only when the temperature is drop to 4° C, and the machine will auto-start only when the temperature is up to 6° C. Approved CE test already
Easy to operate, best quality best price
 Cooling milk tank is mainly used in cooling to storage sweat milk or other liquid.
It absorbs international advanced technology, adopts improving compress machine
And safety and protection system, micro computer monitor, imported advanced technique
And equipment such as polyurethane bubbling, honeycomb board evaporator.

500L to 15000L Milk Cooling Tank Horizontal Milk Cooling Vat Price
