• Model NO.：KQ-1000L, KQ-5000L
• Mixing Speed：36rpm, 48rpm,96rpm, 2900rpm
• Heating Source：Electric,Hot Water
• Working Life：More Than 10years
• Delivery：10 Days
• MOQ：Time and Temperature Record
• Voltage：Follow Your Request
• Motor Brand：ABB , Siemens,China Brand
• Spare Parts：Available
• Voltage ,Hz ,Phase：Make It to Your Order
• Packing：Wooden Box
• Control Box：Yes ,No
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：100sets Per Month

Basic Info.

Model NO. KQ-1000L, KQ-5000L Mixing Speed 36rpm, 48rpm,96rpm, 2900rpm Heating Source Electric/Hot Water Working Life More Than 10years Delivery 10 Days MOQ Time and Temperature Record Voltage Follow Your Request Motor Brand ABB / Siemens/China Brand Spare Parts Available Voltage ,Hz ,Phase Make It to Your Order Packing Wooden Box Control Box Yes /No Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 100sets Per Month

Product Description

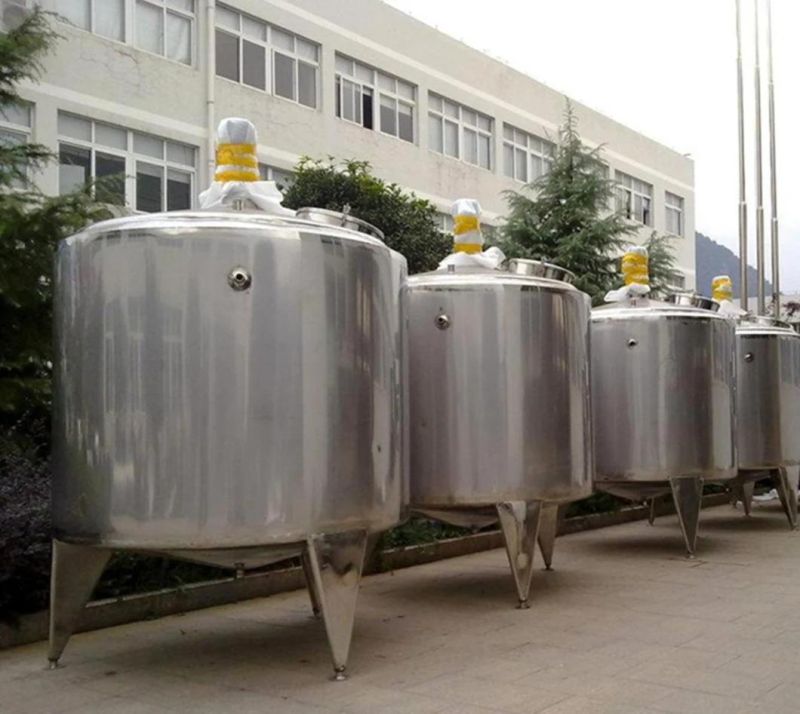

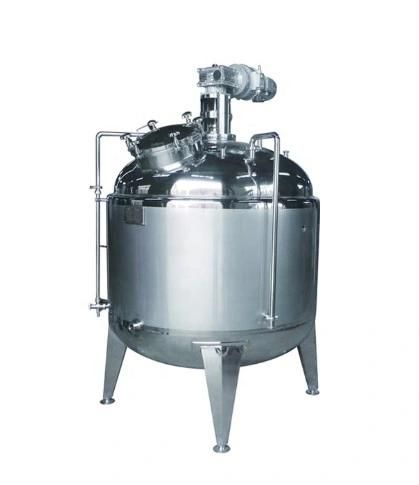

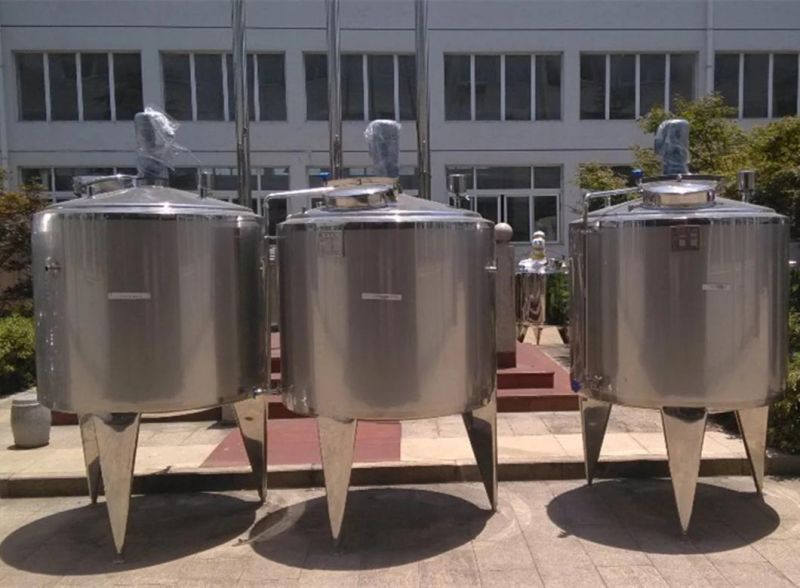

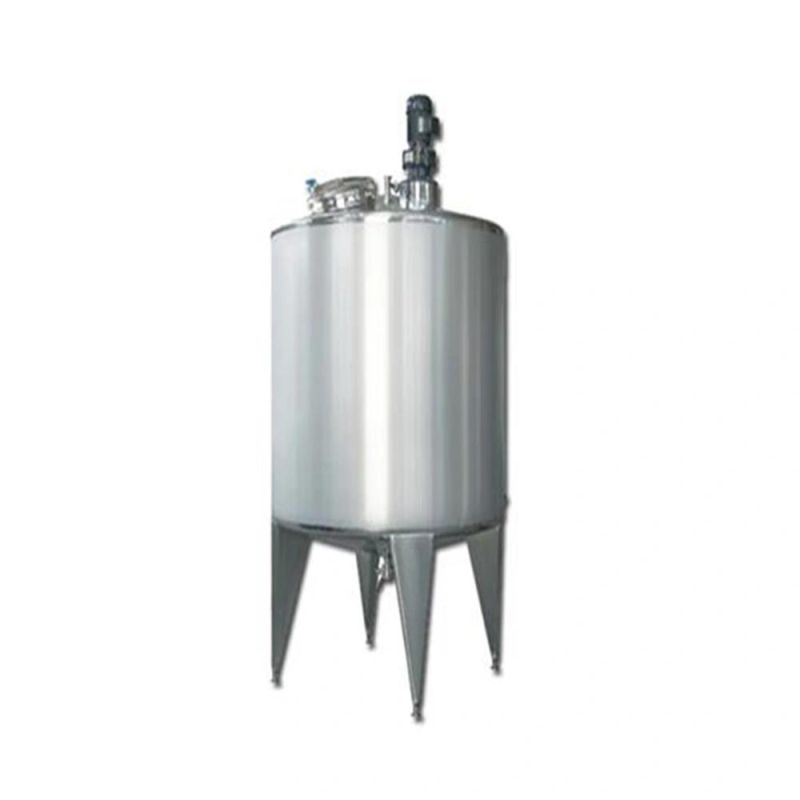

Stainless Steel Dairy Beverage Juice Heating Fermentation Mixing Blending Tank


Shanghai Kaiquan Machine Valves Co.ltd offers the broadest range of tank heating solutions in the electric heatingindustry. .... jacketed vessel application is the heating of chocolate

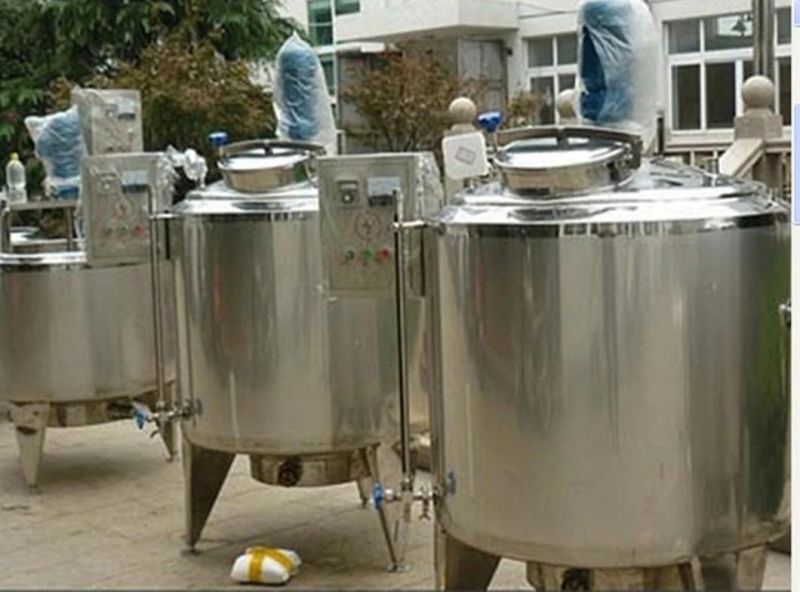

ELECTRIC HEATING MILK BATCH PASTEURIZER
200l, 300L, 400L ,500L, 600L JUICE PASTEURIZER, MILK PASTEURIZER.

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

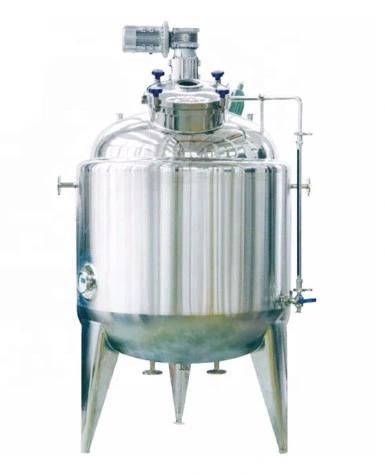

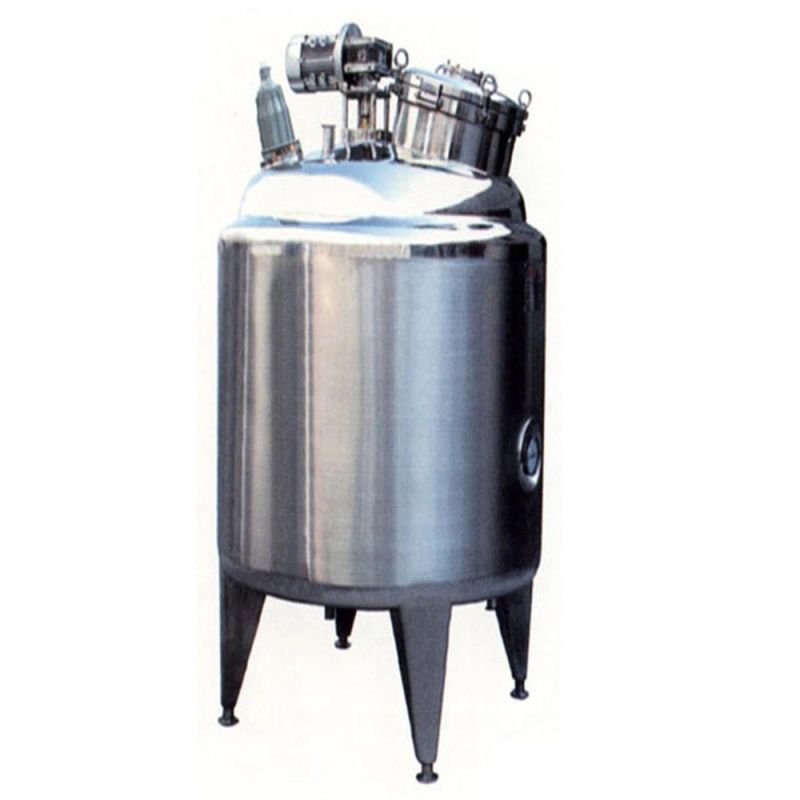

Newest electric double jacketed heating cable for tank
Heating by Electric(380V, 50Hz)
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down
* Accessories:
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) CIP cleaning ball,
(6) Heating tube, (7) Electric cabinet, (8) Reduction gears, (9) Rack & blender etc. (10)The electric motor(2.2KW, 380V, 50Hz)

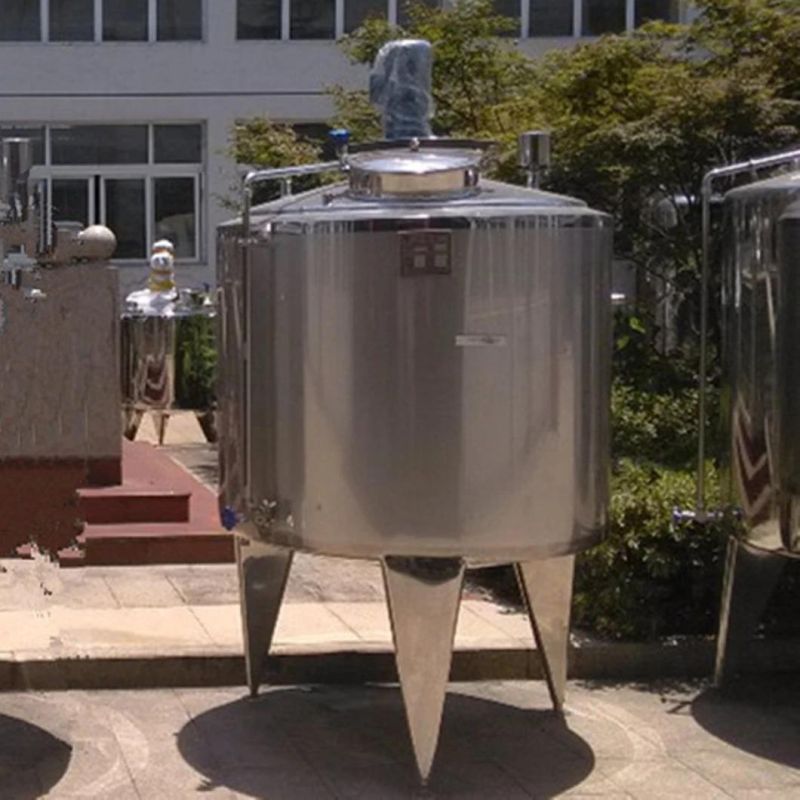

Stainless Steel Dairy Beverage Juice Heating Fermentation Mixing Blending Tank
