• Model NO.：ZYD-P10
• Voltage：380V
• Power：18kw
• Customized：Customized
• Name：Vegetable Blanching Machine
• Function：Blanching and Cooking
• Item：Vegetable Blanching and Steaming Machine
• Feature：High Efficiency and Speed
• Color：Silver
• Usage：Food Factory,Hotel,Restaurant
• Products：Vegetables,Nuts,Chips,Fries,Fish,Seafood
• Material：304 Stailnless Steel
• Water Capacity：120L
• Work Type：Batch
• Transport Package：Wrapped with Film
• Specification：1090*600*1000mm
• Trademark：Ambitious
• Origin：China
• HS Code：8438600000
• Production Capacity：200pieces,Year
• Package size per unit product：110.00cm * 70.00cm * 120.00cm
• Gross weight per unit product：110.000kg

Basic Info.

Model NO. ZYD-P10 Voltage 380V Power 18kw Customized Customized Name Vegetable Blanching Machine Function Blanching and Cooking Item Vegetable Blanching and Steaming Machine Feature High Efficiency and Speed Color Silver Usage Food Factory/Hotel/Restaurant Products Vegetables,Nuts,Chips,Fries,Fish,Seafood Material 304 Stailnless Steel Water Capacity 120L Work Type Batch Transport Package Wrapped with Film Specification 1090*600*1000mm Trademark Ambitious Origin China HS Code 8438600000 Production Capacity 200pieces/Year

Packaging & Delivery

Package size per unit product 110.00cm * 70.00cm * 120.00cm Gross weight per unit product 110.000kg

Product Description

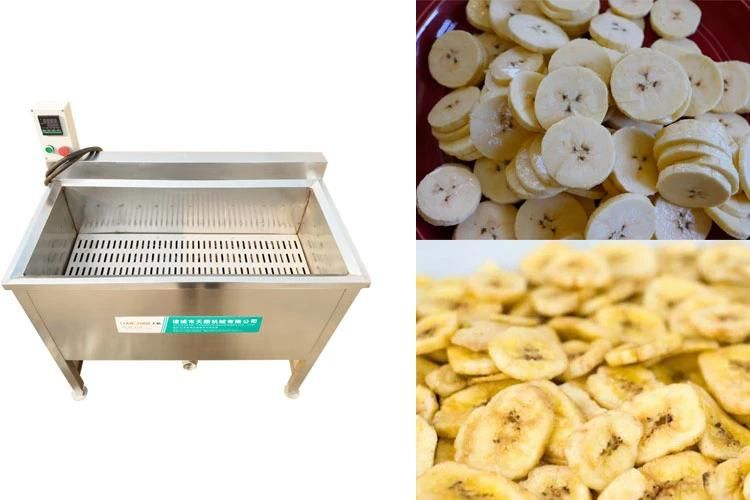

Batch Blancher Hot Water Pre-Cooking Plantain Blanching Machine



1. -Machine Introduction

Basket Type Blanching Machine is made of high quality food grade SUS304 stainless steel, it works with electric heating for blanching and cooking the vegetable products. Temperature could be adjusted according to the products requirements.

Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.


Working Principle:

The blanching machine has the characteristics of quick green removal, enzyme inhibition, color protection, dehydration and cooling in time, so as to keep the original natural color of fruits and vegetables. Through this machine, the activity of enzymes in fruits and vegetables is stopped, so as to keep the fresh color of fruits and vegetables, the bad odor of vegetables is removed and the fragrance is retained, at the same time, the softness of cells are improved, the evaporation of water is facilitated, and lay a good foundation for the next process requirements-drying and dehydrating.


Features:

1. The blanching machine is easy to operate and has high output. It is all made of stainless steel, automatic temperature control and double insulation.

2. Fast heating, high temperature blanching and short working time.

3. Low labor intensity, high efficiency, easy operation, reduces labor costs. Safe and reliable.

4. Small volume so fits for wide range of places, including food factories,school kitchen,big company kitchen,etc.



2. -Technical Data

No.	Item	Value
1	Model	ZYD-P10
2	Heating Method	Electric
3	Temperature	100 ° C or less
4	Blanching Time	4-20Min
5	Overall Dimensions	1090*600*1000mm
6	Effective Size	1000*450*280mm
7	Power	18KW
8	Water Capacity	120L

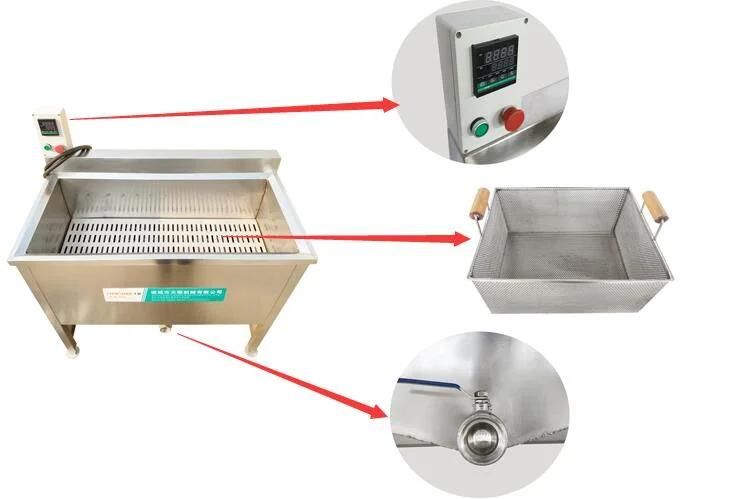

3. -Details




4. -Suitable For Products

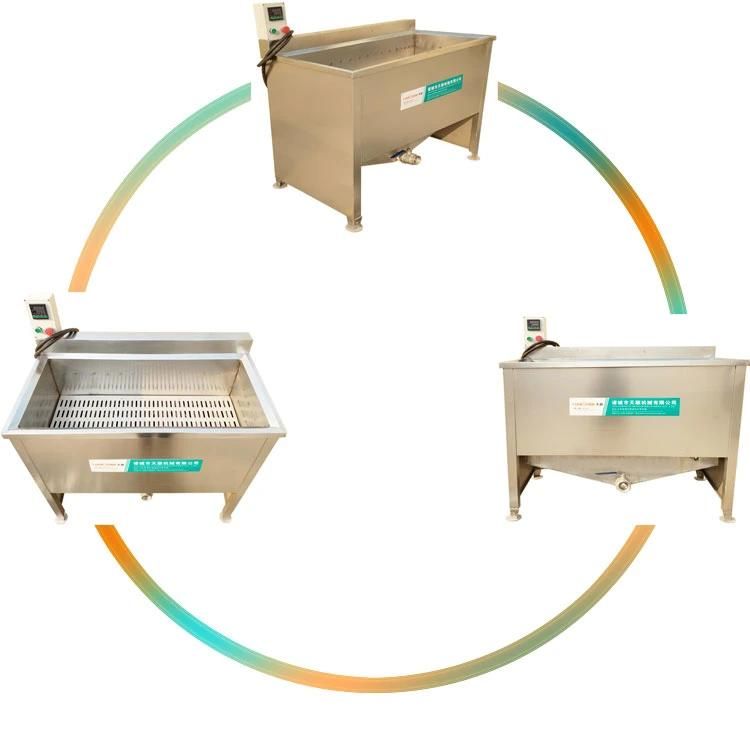

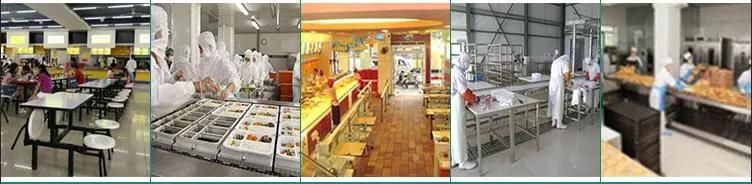

5. -Using Scene

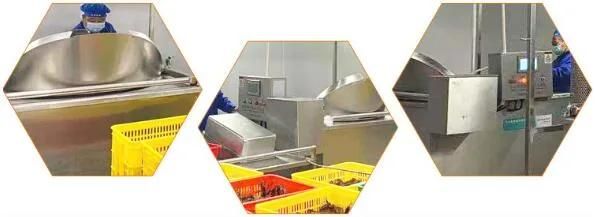

6. -Applications

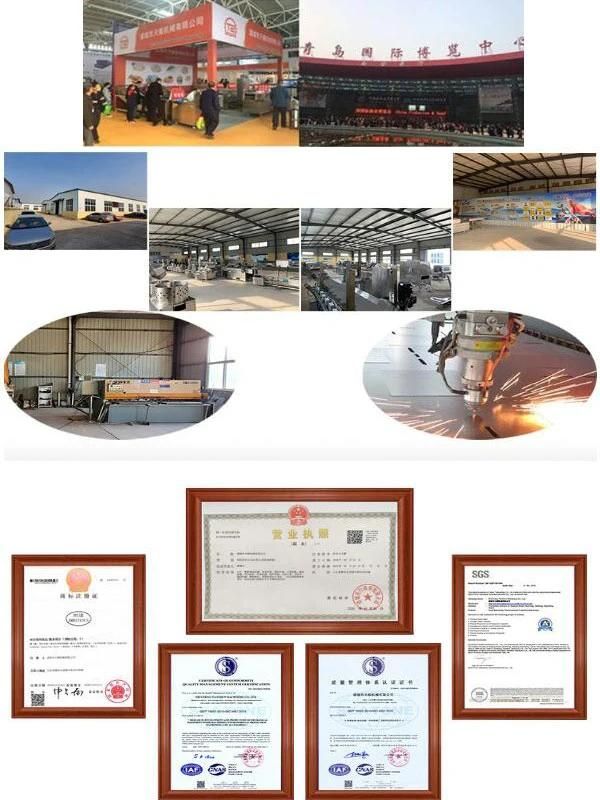

7. -Company Profile


Zhucheng Tianshun Machinery Co., Ltd. is a modern food machinery manufacturer integrating R&D, manufacturing, marketing and after-sales.

Main products including food processing machinery, including:

Vegetable/fruits washing machines;
Vegetable peeling machines;
Frying machines;
Coating&blender equipment;
Flavouring machines;
Blancher;
Hot/cool air drying machines;
Vacuum packaging machines;
Vegetable/fruits cutter;
Pasteurizer equipment;
Vacuum fryer;
Freeze dryer;
Liquid nitrogen freezer;
Complete production lines,potato chips/french fries production line,plantain chips line,vegetable/fruits processing line,etc.

They are mainly used for processing vegetable, fruits, pickled foods, chicken, meat, seafood, and so on. All of the products could be customized produce in individual or a complete line.


8. -Our Clients



9. -Packing And Shipment
