• Feed Type：Grain
• Customized：Customized
• Transport Package：Wooden Box
• Origin：Shanghai China
• HS Code：84381000
• Production Capacity：200set,Year

Quality assurance:

Machine Brief Introduction:

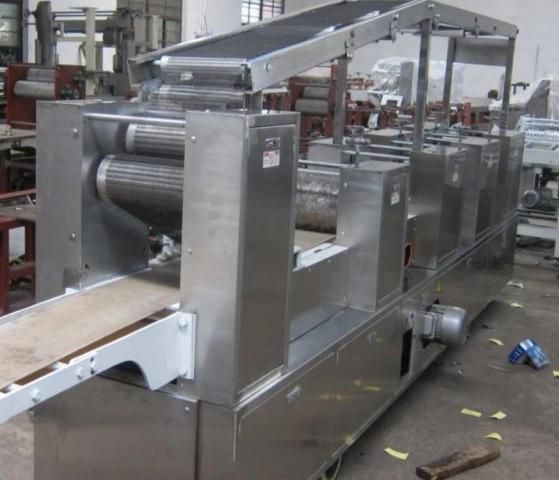

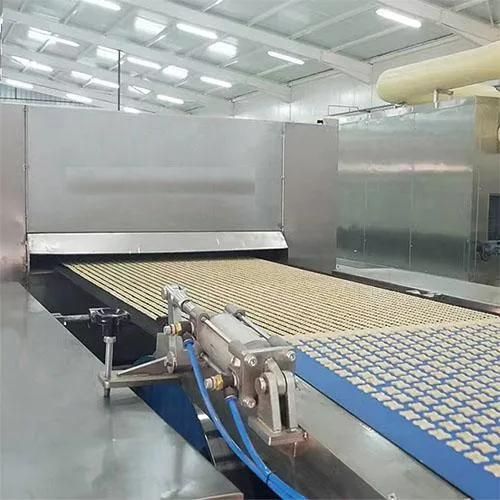

Biscuit production line, mainly for the production of kinds of biscuit, from feed to  forming, transport, waste recycling, cooperate with tunnel baking. Spray cooling all mechanical and electrical integration, automatically, arbitrary adjustable thickness of biscuits, mechanical regulated speed can be fast can slow the infinite adjustment, and with automatic temperature control and a series of advanced equipment. Can be any combination of biscuit technology. These all can reach the ideal effect.The biscuit production line adopts the imported electrical components, frequency control, energy saving, reliable and single control, from spreading.
Note: this equipment can produce interlinear notes cream, jam and so on a variety of flavors of high-quality biscuits.(need to match the cream sandwich machine)

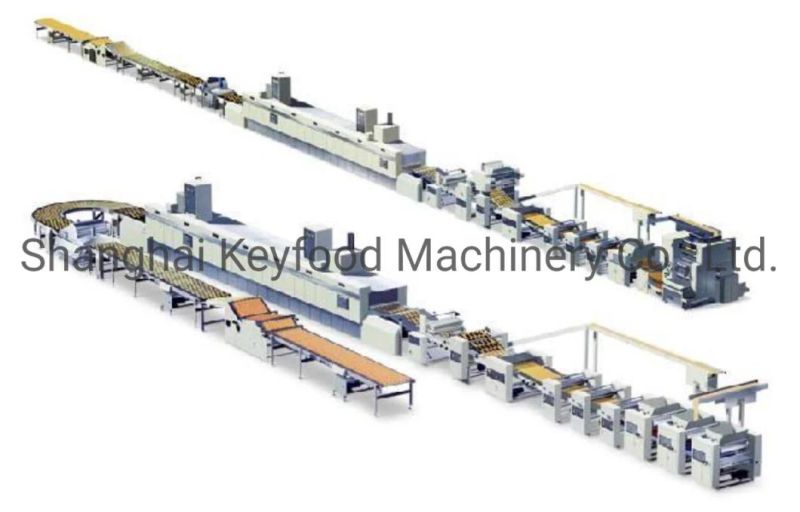

Biscuit prduction process flow:

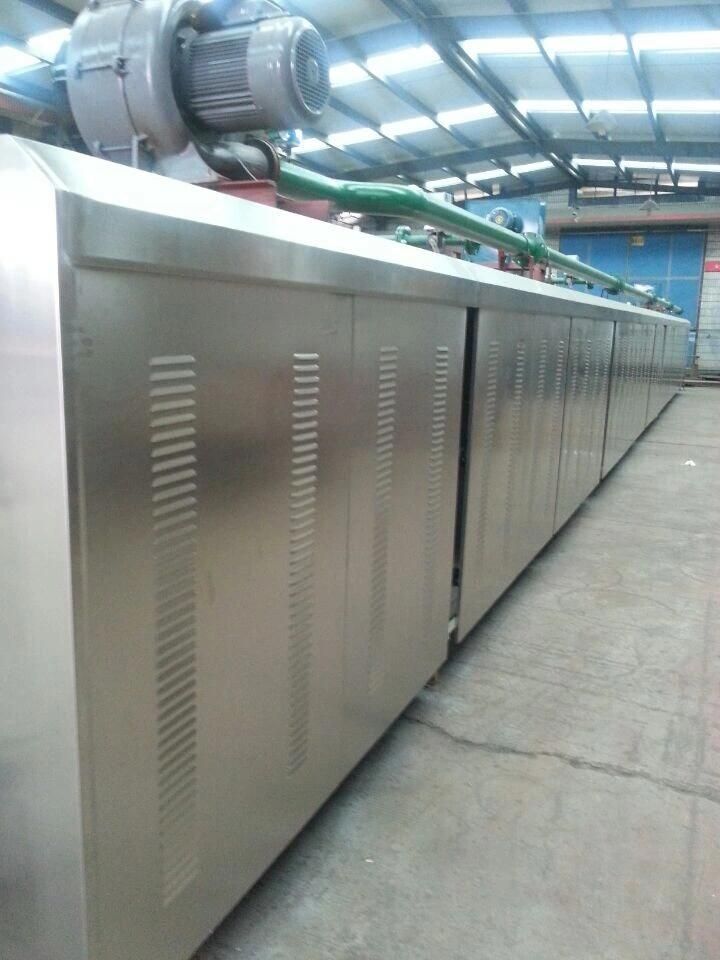

1. Flour mixer - 2. Roll cut biscuit forming machine - 3.Roll print biscuit forming machine - 4.Tunnel oven - 5.180degree Turning machine - 6.Oil spraying machine - 7.Cooling line - 8.Biscuit stacking machine - 9.Biscuit sandwich machine - 10.Biscuit packing machine

Model

KFD-280

KFD-400

KFD-600

KFD-800

KFD-1000

Capacity

100

250

500

750

1000

Total Length(mm)

29600

64500

85500

92500

125000

Baking Temp.(ºC)

190-240

190-240

190-240

190-240

190-240

Electric Power Needed (kw)

65

190

300

380

700

Gross Weight (kg)

6000

12000

20000

28000

40000
