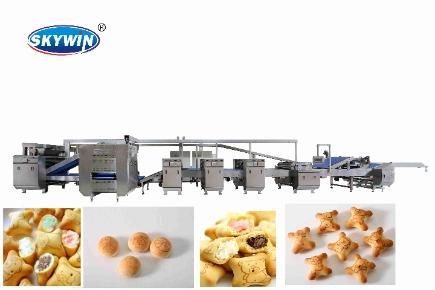

Automatic Soft and Hard Biscuit Machine for Biscuit Line

Foshan Shunde Skywin Foodstuff Machinery Co., Ltd.
  • Certification：CE, UL, ISO9001
  • Process：Thermal Processing
  • Automatic Grade：Automatic
  • Application：Biscuit
  • Customized：Customized
  • Applicable Industries：Manufacturing Plant, Food & Beverage Factory

Base Info

  • Model NO.：model-400
  • Warranty：1 Year
  • After-Sales Service Provided：Field Installation, Commissioning and Training
  • Burner：Germany Brand Weishaupt Burners
  • Voltage：380V,60Hz
  • PU Belt：Germany Brand Siegling Food Grade PU Belt
  • Main Control Apparatus：French Brand Schneider
  • Control Panel：Germanry Brand Siemens
  • Motor：Germanry Brand Sew
  • Bearing：Japanese Brand NSK
  • Power：Depends on Model
  • Material：304 Stainless Steel
  • Transport Package：Super Stronger Woodern Box
  • Specification：Depends on Models
  • Trademark：skywin
  • Origin：Guangdong, China (Mainland)
  • HS Code：8438100010
  • Production Capacity：100-1500kg,H

Description

Products Description1200 - 1500 A. Horizontal Dough mixer(For Both Hard Dough and Soft dough)
Automatic Soft and Hard Biscuit Machine for Biscuit Line 1). Speed from 25r/min to Max. Speed60r/min, frequency speed
2). SEW/Chinese Brand motor & gearbox3). Full stainless steel 304#
4). with one Tub capacity 150kgs.
5). Tub thickness 5mm and 8mm.
6). Newest design touch screen
Siemens PLC control system.  B. Dough Cutting and Feeding System
Automatic Soft and Hard Biscuit Machine for Biscuit Line   C. Hard Biscuit Forming System
Automatic Soft and Hard Biscuit Machine for Biscuit LineThree Roller Combination Pre-Sheeter1). With Feeding Hopper,304 Stainless steel
2). Gauge roller 3pcs
3). Roller diameter 350mm
4). Food grade PU belt , PU belt has guides groove
5). Groove type feeding roller
6). Siemens inverter PLC touch screen
7). Dough sheeting thickness can adjust.
8). Digital display sheet thickness B/C/D Roller1). Machine cover 304 Stainless steel
2). Wallboard thickness 30mm

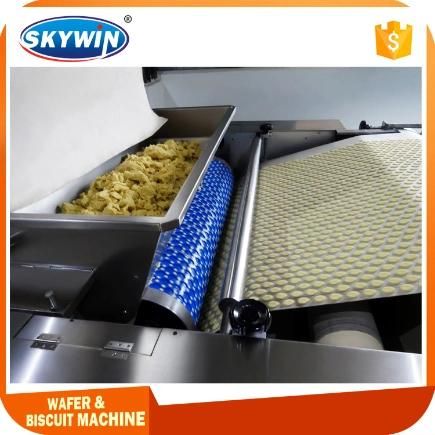

3). Dough sheeting thickness can be adjust Minumun thickness is 0.1mm Twin type Rotary Cutter Panda Biscuit, Cracker Biscuit ... ect1). with independent driver speed control
2). Forming mould can be installed printing mould and cutting mould separately
3). Rotary cutting mould diameter 200mm
4). Siemens inverter and PLC touch screen
5). Machine cover 304 Stainless steel

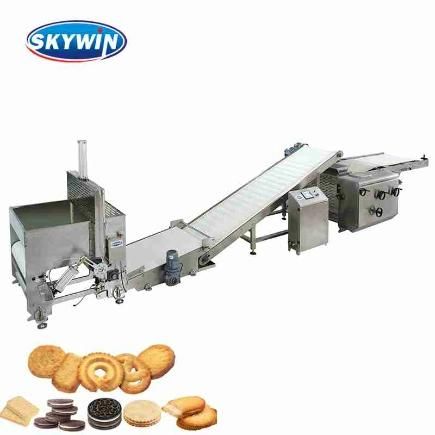

6). Wallboard thickness 30mm D. Soft Biscuit Forming PartYou can changing the biscuit shapes by changing the biscuit moulds.
Automatic Soft and Hard Biscuit Machine for Biscuit LineRotary Moulder for Soft Biscuit 1) Mould working width 400-1500mm
2) Speed control by frequency inverter
3) Siemens inverter PLC touch screen
4) Main driver Chinese Brand motor&gearbox

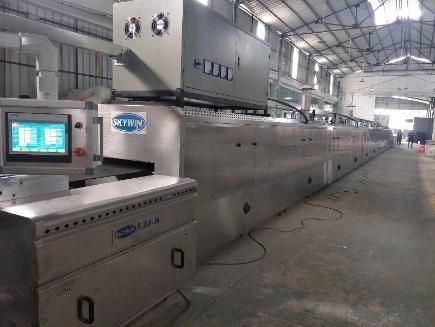

5) Main bearing NSKE. Biscuit Gas/Electric Baking Tunnel Oven
Automatic Soft and Hard Biscuit Machine for Biscuit LineHybrids Direct Gas and Indirect Gas circulation Tunnel oven 1). Temperature 5 zones
2). 9m pre-heating mesh belt
3). 65m divided into 5 temperature zone
4). Siemens inverter PLC touch screen
5). Air blower for hot wind circulation system
6). Pneumatic automatic tracking and adjust belt and tension
7). Oven cover by 304 Stainless steel
8). Heat resistant material: rock woolF. Cooling Conveyor & Packing Machine
Automatic Soft and Hard Biscuit Machine for Biscuit LineCooling Conveyor1. Food grade PU belt
2. Independent frequency inverter control and adjust
3. Siemens inverter and Schneider electric
4. Main driver SEW motor and gearbox
5. Main bearing NSK Automatic Horizontal Packing Machine Model SKY-320 High Speed Flow Packing Machine,conveyor length 2.5m
1) Included packing conveyor
2) Servo Motor machine, film width 320mm
3) included date printer
4) Speed: 50 to 300 packs/minute
5) Max width of the packing film: 380mmAdvantage
Automatic Soft and Hard Biscuit Machine for Biscuit Line
