• Model NO.：100L-500L
• Material：SS304,SS316L
• Transport Package：Wooden Box
• Specification：50L-500L
• Trademark：Tianlong
• Origin：Wenzhou, China
• Production Capacity：1000 Sets Per Week

Volume L100200300400500Main Body Diameter800mm900mm1000mm1100mm1200mmSize L*W*H1700*1400*15501900*1800*16001950*1850*15502000*1950*16502050*2000*1750Mixing TypePlanet/ScraperRising Arm TypeAuto/HydraulicHeating TypeElectromagnetism/gas
Application :
Applied for cooking food such as sugar, pharmaceutical,dairy ,beverage,can food , meat dish, frying filling , sauce and condiment , can be also used for frying , cook gruel , halide food in  large restaurant , group meal , canteen .

Principle :
Can be choosed for electromagnetism heating , gas heating .

Eelectromagnetism heating : fast heat up , no naked flame , no smoke, won't explosion , no harmful gas , save energy , safety .
Heat efficiency can reach 98% . Outside the cooker is not in high temperature in case any scald .

Structure :

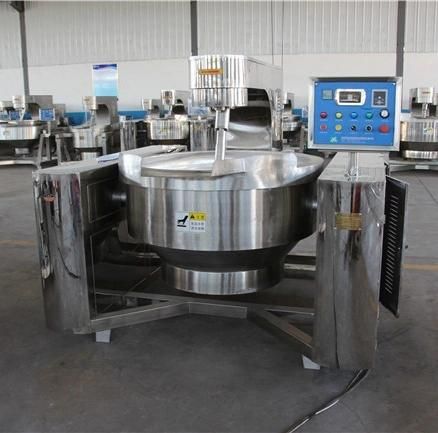

The equipment consist of cooker body , frame , mixer , heating system , adjustable speed regulator , mixing shaft, tilting system

The dome end is one time fast pressuring , there is very tiny error on sizes .

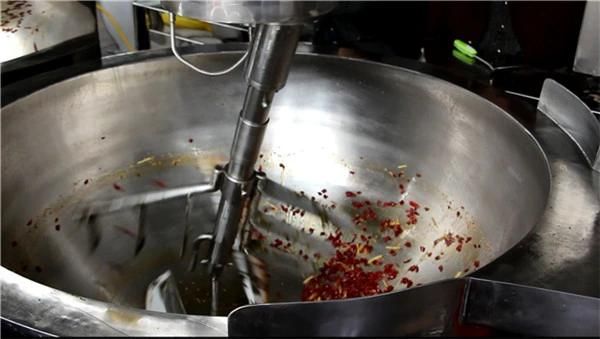

The scraper will be highly fitted with cooker body , so the food can be scraped thoroughly , and won't be pasted .

The scraper adopts high strength PTFE, can bear high temperature , non-toxic,food grade .

PLC auto control , can better control the mixing time and mixing style .

Characteristic :

It is variable frequency , combined with rotation and revolution .drive ratio is non-integer transmission ratio to confirm every position will be scraped .

Planet Mixing type : mixer will be abundant touch with cooker body , wont be caked mass or coke , easy operation ,the residue not easy stick to pot .

Hydraulic type : can be tilt discharge food after separate mixer with cooker body . it reduces labor intensity .

Details pls contact David :0086-15868559136
