• Model NO.：WSLX
• Key Word 2：Fruit Extruder
• Key Word 3：Juicer Making Machine

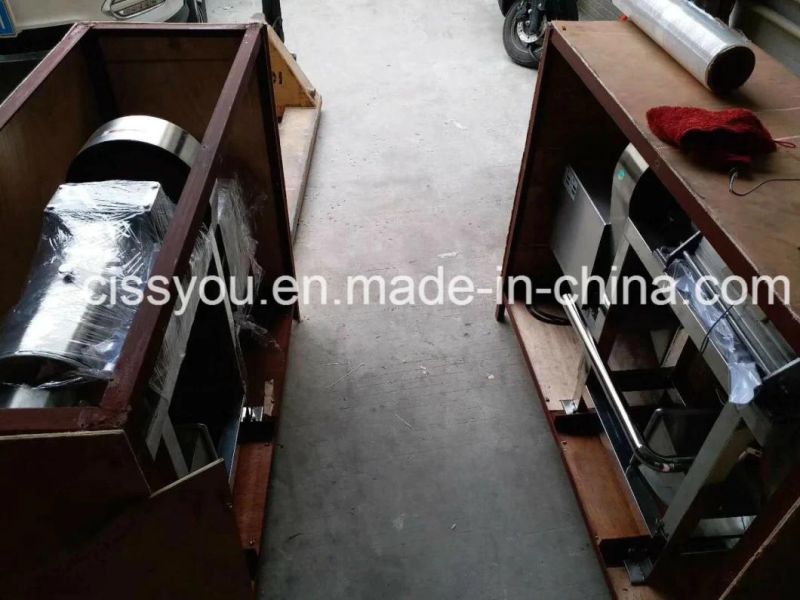

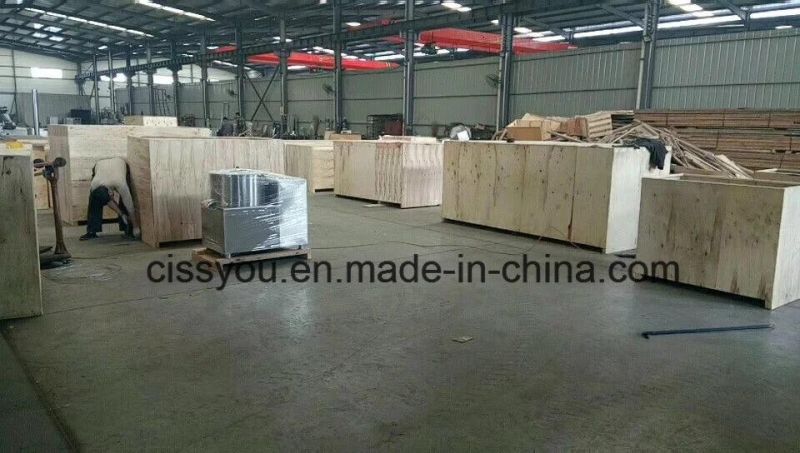

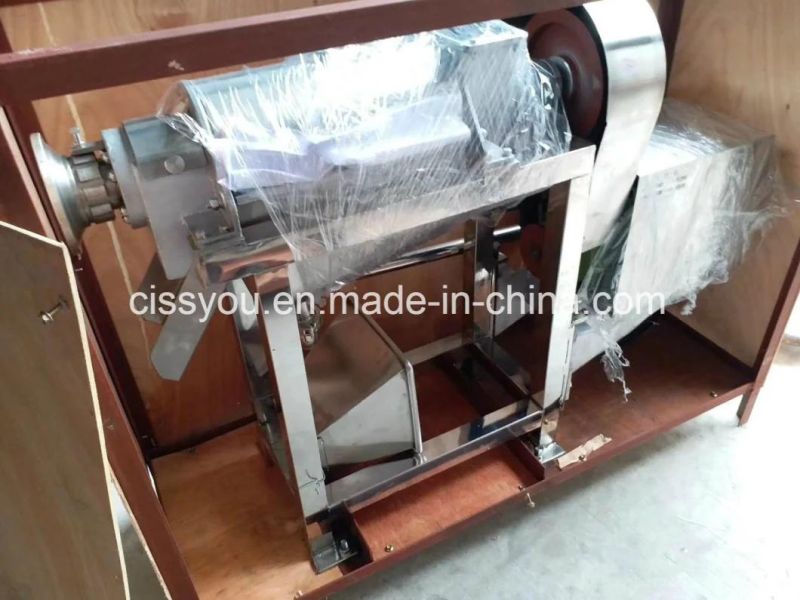

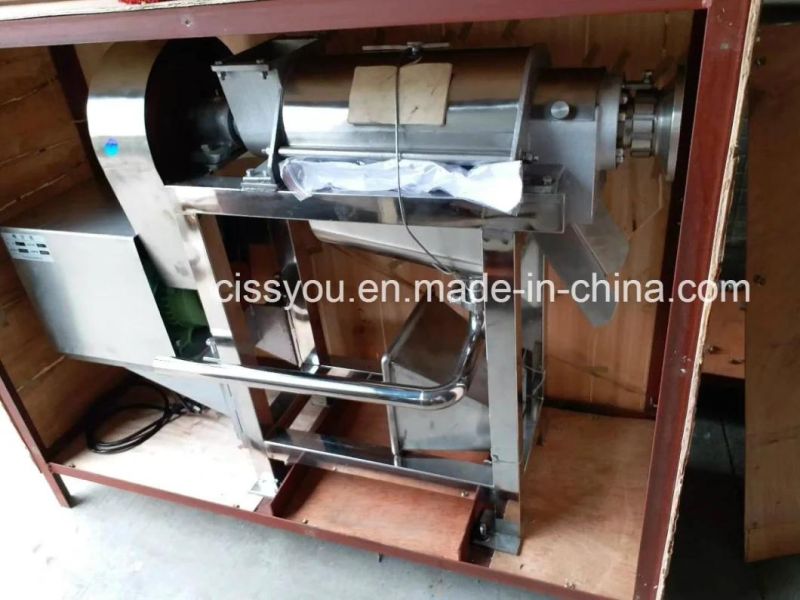

• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：8474900000
• Production Capacity：1500-10000kg H

Basic Info.

Model NO. WSLX Key Word 2 Fruit Extruder Key Word 3 Juicer Making Machine Transport Package Export Wooden Cases Specification ce co ccc Trademark GMEC Origin Zhengzhou HS Code 8474900000 Production Capacity 1500-10000kgH

Product Description

     Industrial lemon orange squeezer press machine fruit vegetable crusher and juicer machine








Specification
This machine is Double screw juicer, suitable for industrial fruit and vegetable juice production, many kinds of fruit and vegetables like apple, pear, orange, grape, guava, ginger, jujube, spinach etc.

Product Description
Application:
Spiral Juice Extractor is applicable to tomato, pineapple, carrot, apple, aloe, cactus, fruit and vegetable juice press. By the axis of the screw propulsion type extrusion, with juice, discharging function. The material of wet part is high quality stainless steel

Description:
The Component of the machine included: Front support, hopper, spiral shaft, Filter net, juice holding device, back support, Out slag notch and so on. Screw shaft is supported on the bearing seat, the right end is supported on the wheel bearing seat, motor by a pair of belt wheel drives the screw shaft through operation.

Working way:
Screw shaft clockwise rotation along the direction of the Slag outlet, bottom diameter slowly become big but the Pitch narrows gradually, when material pushed by the screw shaft, Due to the spiral chamber narrows gradually, thus forming the material press. Fruit and vegetable products join the hopper,
The screw shaft propulsion and compression, by squeezing out the juice through a filter into the bottom of a juice holding device, and the slag by the axis of the screw and regulating head taper portion is formed between the annular gap discharge, pressure head can adjust the size of the gap, to adjust the slag resistance, can change the slag rate

Model	WSLX-1500	WSLX-5000	WSLX-10000
Productivity (kg/H)	1500	5000	10000
Motor power	5.5kw	7.5KW	11KW
Screw diameter	260mm	420mm	450mm
Sieve diameter	2 mm	2 mm	2 mm
weight	800kg	2000KG	2445KG
Dimension	2500X600X900 Mm	3500*1000*1480 mm	3740*1140*1785 mm


Should you have interest of items mentioned above? Kindly let us know by return mail. Meanwhile if you require the other merchandises made in China, pls feel free to contact me.

Looking forward to hearing from you soon.
