• Model NO.：KQ
• Application：Milk
• Customized：Customized
• Name：Stainless Steel Milk Yogurt Liquid Cooling Aging
• Milk Chilled Tank：1000L to 12000L
• Air Compressor：USA Copeland
• Refrigerant：R404
• Milk Tankapplication：Cooling and Storage Fresh Milk
• Milk Transportation Tank：Also Provided
• Milk Vat：with Air Compressor
• Milk Cooling Tank Mixer：Two Mixer 0.75kw
• Milk Tank：Cooling and Storage Fresh Milk
• Milk Cooling Tank：Work More Than 10years
• Material：Stainless Steel 304 ,316
• Motor Brand：Simemens ,ABB ,China Brand
• Voltage ,Hz,Phase：Make It to Your Order
• Drawing：We Can Make It to Your Drawing .
• Cleaning：CIP Spray Ball
• Transport Package：Wooden Box
• Specification：SANITARY, FOOD GRADE
• Trademark：Kaiquan
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：1000 to 10000L

TypeKQ-0.5T
Vertical typeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)50010002000300050006000800010000LRefrigerating Output(W)90009000150002200037000380005500074000Refrigerating  Fluid(R)R22/404AR22/404AR22/404AR22/404AR22/404AR22/404AR22/404AR22/404AInsulating Property≤1ºC/4h≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.83.85.97.510.5111319.2Voltage220V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15001800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T0.6T 0.75T0.9T1.1T1.3T1.8T2.05T

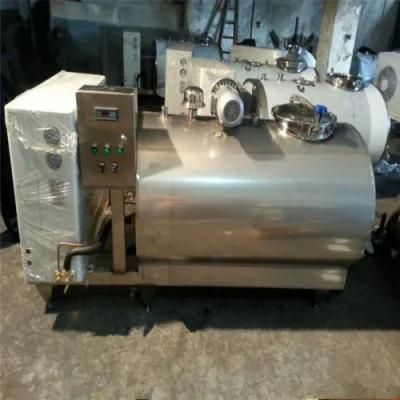

Milk cooling & storage. Milk cooling & storage cooling tank and control unit. Rapid and efficient milk cooling is essential for preserving milk qualityrefrigerant tank
Milk Vat from Milk Cooling Tank
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.


Stainless Steel Milk Yogurt Liquid Cooling Aging Storage Tank Factory .
