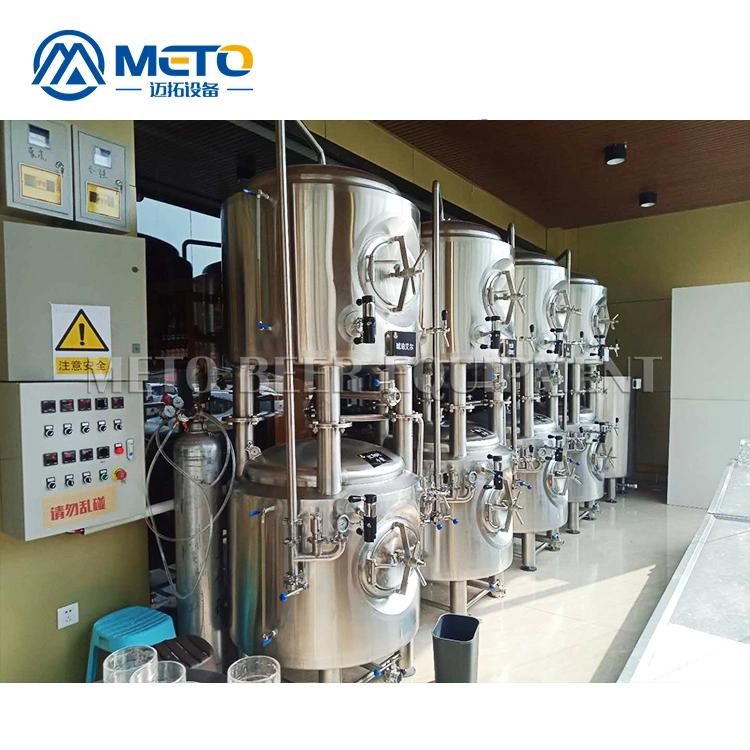

SUS304 Horizontal or Stand 500L Bright Beer Tank for Brewery
Shandong Meto Intelligent Equipment Co., Ltd.- Processing Material：Natural Ingredients, Water Malt Yeast Hops
- Application：Beer, Cerveza, Beer Brewing, Brasserie
- Customized：Customized
- Certification：CE, UL, ISO9001
- Power Source：Steam , Electric , Fire
- Automatic Grade：Semi-Automatic
Base Info
- Model NO.：MT-500L
- Condition：New
- Voltage：220V, 380V
- Material：Full Stainless Steel SUS304
- Welding：Arc Argon Protection
- Warranty：3 Years for Tank
- After Sales Service：Installation and Equipment Commission
- Technology：Offer Auto CAD and 3D Design Drawing
- Material Thickness：Inner Wallet 3mm Outer Wallet 2mm
- Electric Elements：up to Ce UL Standard
- Fermenter：Double Wallet with Dimple Cooling Jacket
- Cooling Unit：Chiller with Glycol Tank
- Control Unit：Temp. Controller, HMI , PLC or Touching Screen
- Insulation：Polyurethane Foam
- Polish Finish：0.4-0.6um
- Surface Finish：Brushed , Mirror , Pickled SUS304 or Copper
- Transport Package：Plywood Case by LCL or Container by FCL
- Specification：Customized
- Trademark：METO
- Origin：Jinan, China
- HS Code：8438400000
- Production Capacity：20 Sets Per Month
Description
Parameter of bright beer tankType Size Total Capacity Para 100L φ620×1900 147L Top manhole (external opening) 200L φ820×1700 260L Top manhole (external opening) 300L φ860×2100 375L Top manhole (external opening) 500L φ1060×2200 720L Top manhole (internal opening) 600L φ1160×2300 750L Top manhole (internal opening) 1000L φ1260×2750 1320L Side manhole 1500L φ1460×3000 1880L Side manhole 2000L φ1560×3000 2500L Side manhole 3000L φ1760×3850 3800L Side manhole 4000L φ1900×4000 5130L Side manhole 6000L φ2000×4800 7500L Side manhole 10000L φ2200×6000 12500L Side manhole 3BBL φ910×2050 4BBL Top manhole (external opening) 5BBL φ1060×2250 6BBL Top manhole (internal opening) 7BBL φ1160×2300 9BBL Top manhole (internal opening) 10BBL φ1360×2500 15BBL Side manhole 15BBL φ1460×3000 23BBL Side manhole 20BBL φ1660×3300 29BBL Side manhole 30BBL φ1660×3300 46BBL Side manhole 40BBL φ1760×3600 50BBL Side manhole 50BBL φ2200×4500 62BBL Side manhole 60BBL φ2200×4900 75BBL Side manhole 80BBL φ2200×5800 100BBL Side manhole 100BBL φ2200×6300 125BBL Side manhole
