• Model NO.：KQ 100---30000L
• Name：Milk Transportation Transport Tank Receiving Tank
• Material：Stainless Steel 304,316
• Transportation Tank Capacity：Customized
• Rated Volume：1000L-30000L
• Processing Types：Milk
• Weight：100kg-5000kg According to The Volume
• Certificate：Ce,ISO9001,PED,SGS
• Voltage：380V,3pH,50Hz or Customized
• Tank Contruction：Inside Wall, PU Insulation Wall
• PU Thickness：70mm
• Warranty：One Year
• MOQ：1set
• Motor Brand：Siemens ,ABB ,China Brand
• Spare Parts：Available
• OEM：1set
• Transport Package：Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：China
• HS Code：8479820090
• Production Capacity：100units,Month

Milk cooling tanks specificationModelCapacity(L)Cooling capacity(W)Stirring speed ( R/MIN)Match power(KW)dimension(L*M*H)MCT-0.5500350036(24)R/MIN1.52200*1350*1150MCT-11000690036(24)R/MIN32750*1150*1500MCT-1.515001000036(24) R/MIN43000*1350*1550MCT-220001300036(24)R/MIN53200*1500*1600MCT-330001780036(24)R/MIN6.53500*1650*1700MCT-550003400036(24)R/MIN134000*1950*2000MCT-660003400036(24)R/MIN134200*2200*2100MCT-880004200036(24)R/MIN184800*2400*2400MCT-10100006500036(24)R/MIN245000*2600*2500

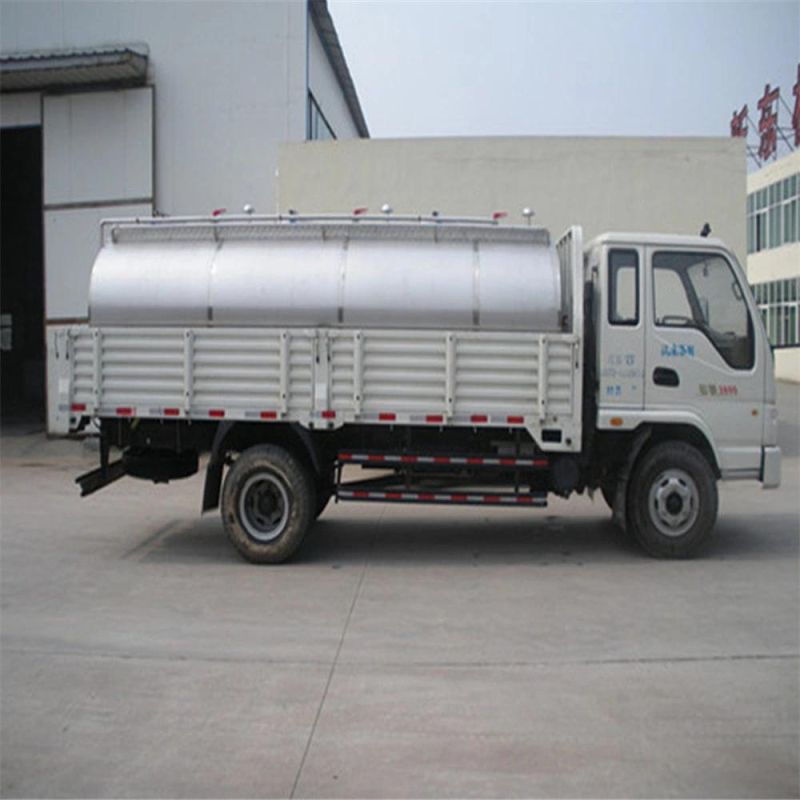

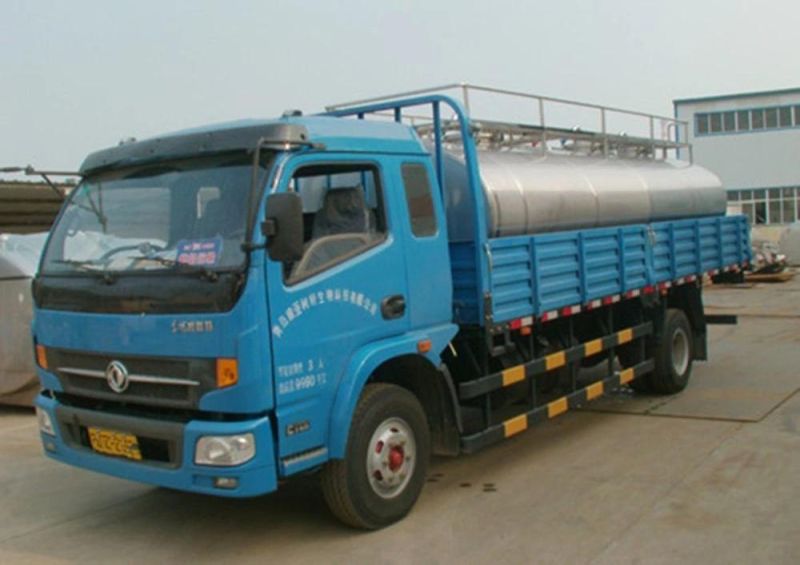

milk transport tank
 Features:
* Milk cooling fastest from +32ºC To +4ºC
* Space saving, easy to clean
* Adjustable legs giving slope for milk drain
* Paddle type agitator for foamless agitation even for small quantities of milk
* Excellent insulation to avoid temperature loss
* Precise temperature control with efficient refrigeration circuit and
* direct expansion type of evaporation-Gas R-404A
* Stainless steel frame for condensing unit for long life
* Electrical panel with all necessary safety with indication
* Entire cooler made of AISI-304 stainless steel well polished
* Out let dairy valve 38mm or 51mm.




Milk Transportation Transport Tank Receiving Tank
