• Model NO.：AM-C600
• Condition：New
• Customized：Customized
• Model：Am-C600
• Item：Grain Seeds Vibration Cleaning Equipment
• Advantage：The Screen Can Be Customized According to Your Nee
• Apply：Wheat, Rapeseed Rice, Corn, Soybean, Cotton and Va
• Power：220V-2.2kw Motor
• Motor Speed：1400r,Min
• Grain Output：800kg,H
• Product Size：1350*1150*650mm(L*W*H)
• Product Weight：100kg
• Transport Package：Wooden
• Specification：1350*1150*650mm(L*W*H)
• Trademark：ACME
• Origin：Chian
• Production Capacity：1000units,Week

Basic Info.

Model NO. AM-C600 Condition New Customized Customized Model Am-C600 Item Grain Seeds Vibration Cleaning Equipment Advantage The Screen Can Be Customized According to Your Nee Apply Wheat, Rapeseed Rice, Corn, Soybean, Cotton and Va Power 220V-2.2kw Motor Motor Speed 1400r/Min Grain Output 800kg/H Product Size 1350*1150*650mm(L*W*H) Product Weight 100kg Transport Package Wooden Specification 1350*1150*650mm(L*W*H) Trademark ACME Origin Chian Production Capacity 1000units/Week

Product Description

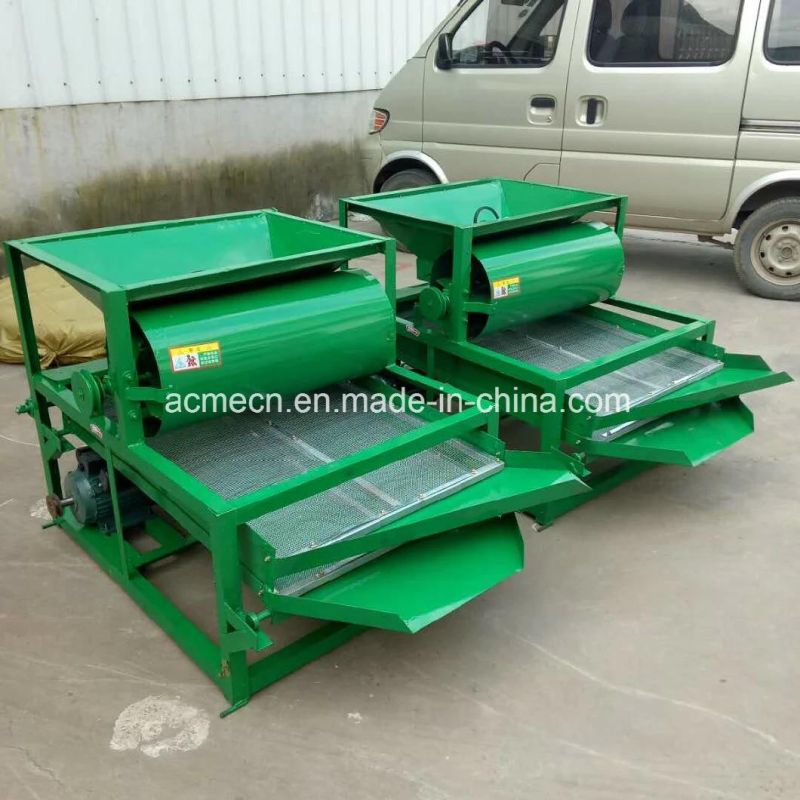

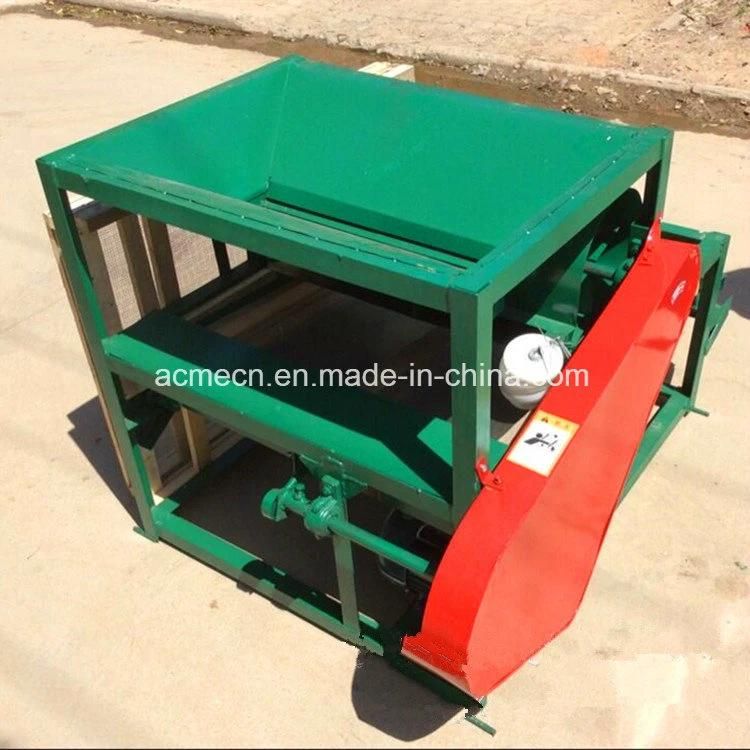

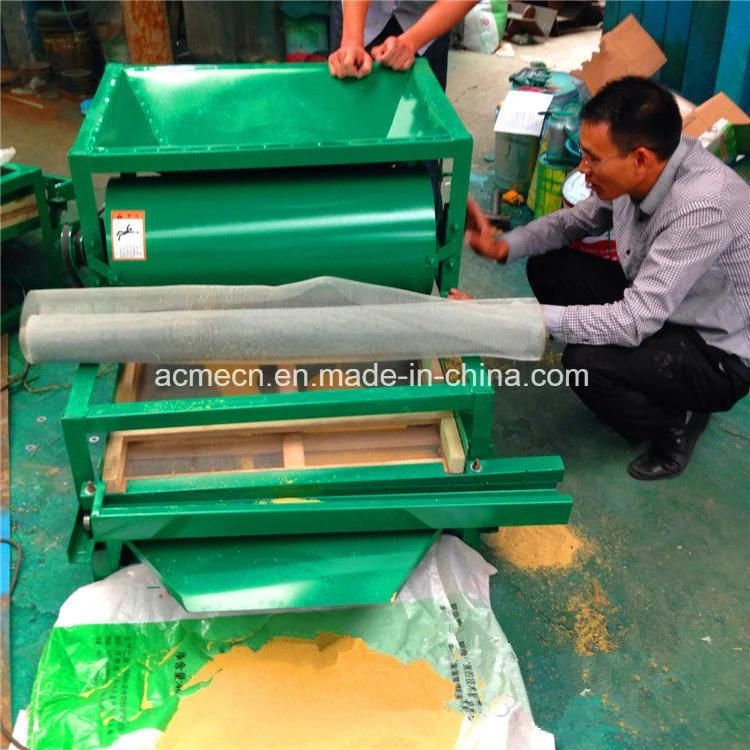

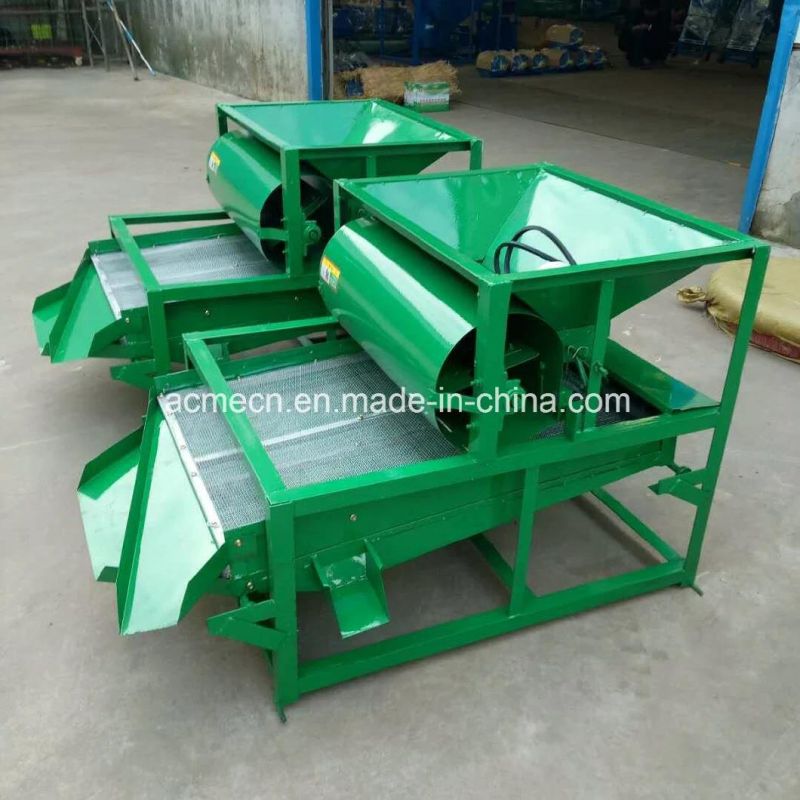

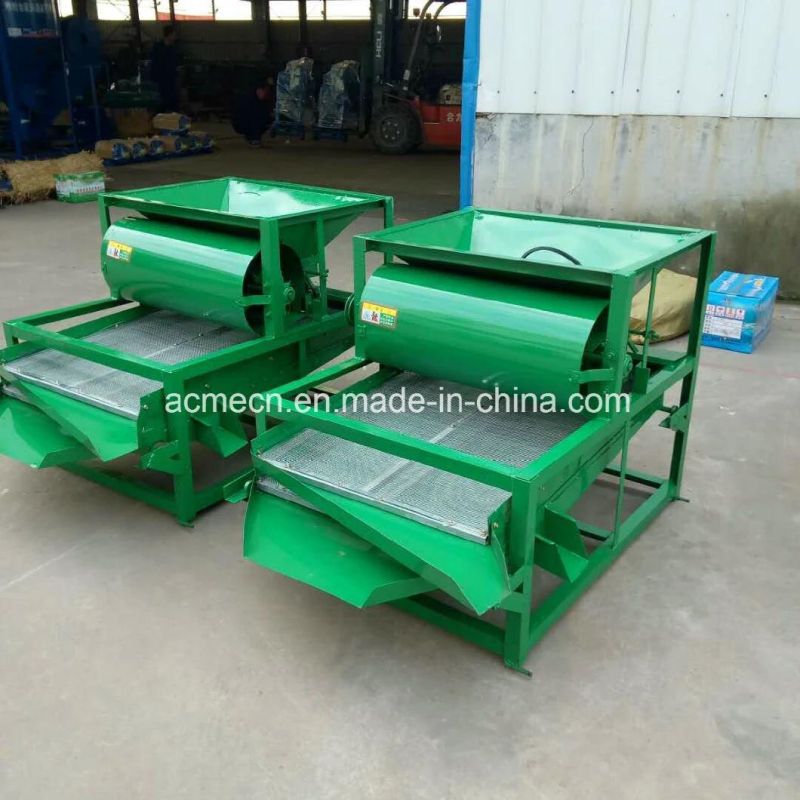

 Grain seeds vibration cleaner rice soybean maize seeds cleaning machine

Feature:
The food selection machine is often used in the selection, classification and division of wheat, rapeseed rice, corn, soybean, cotton and various oil seeds.It is suitable for all kinds of grain and feed processing plants.

It screened soybean and corn at 3 tons per hour, and screened wheat and rice at 2 tons per hour, and screened cotton seeds and oil seeds between 500-1000 kg per hour.Dust, debris, bad grain and small stones in food and oil, the screening rate is above 95%!

The choice of 220V-2.2kw motor can be used as the power source, and the selection and screening can be divided into one body, which can clean and thoroughly remove all kinds of impurities and dust in the seed of grain or oil.

Parameter:

Model	AM-C600
Item	Grain seeds vibration cleaning equipment
Advantage	The screen can be customized according to your need
Apply	wheat, rapeseed rice, corn, soybean, cotton and various oil seeds.
Item	Grain seeds vibration cleaning equipment
power	220V-2.2kw motor
Motor speed	1400r/min
Grain output	800KG/h
Product size	1350*1150*650mm(L*W*H)
Product weight	100kg



Advantages:

The sieving machine for the second screen, first through the inlet fan blowing, blow away the light weight of leaf directly or wheat straw, the upper sieve first screening again big miscellaneous clean, good food (seed) on the lower screen directly, the lower screen the noise in the grain (seed). The small stones. Defective food (seed) directly to miss, good food (seed) will come from the discharging mouth screening.The small cleaning machine solves the function of the winder and can't remove the stones effectively. The defects of the soil block can be cleaned. The net food (seed) can bring satisfactory results.The machine has a small area, easy to move, and it can be repaired. Besides, it has obvious advantages such as low energy consumption and simple use.

Technology:
Put the machine in the horizontal position, turn on the power, start the work switch, and make sure the motor is running clockwise to show the machine is in the correct working condition.The filtered material is then poured into the hopper, and the material is properly adjusted according to the size of the grain size to make the material into the upper screen evenly.In the meantime, the cylinder fan at the top of the sieve will be sent out to the screen.The air outlet at the bottom of the fan can also be connected directly to the lightweight waste in the bag.
In the lower part of the vibrating screen, there are four bearings which are fixed in the channel steel of the rack to reciprocate.The upper coarse sieve of the sieve is the large particle impurities in the cleaning material.
The whole process of selecting and removing miscellaneous is completed by the side of the selected machine, which is coordinated with the crankshaft or eccentric wheel driven by the movable connecting rod.
