Automatic Chocolate Production Line with Ce Certificates
Shanghai Keyfood Machinery Co., Ltd.- Certification:CE, ISO9001
- Power Source:Electric
- Process:Thermal Processing
- Automatic Grade:Automatic
- Application:Candy, Chocolate, Chips
- Customized:Customized
Base Info
- Model NO.:JZJ150, JZJ175, JZJ320, JZJ510
- Transport Package:Seaworthy Package
- Specification:16000X1000X1600mm
- Trademark:KFD
- Origin:Shanghai
- HS Code:84382000
- Production Capacity:1000sets Per Month
Description
Basic Info.
Model NO. JZJ150, JZJ175, JZJ320, JZJ510 Transport Package Seaworthy Package Specification 16000X1000X1600mm Trademark KFD Origin Shanghai HS Code 84382000 Production Capacity 1000sets Per MonthProduct Description

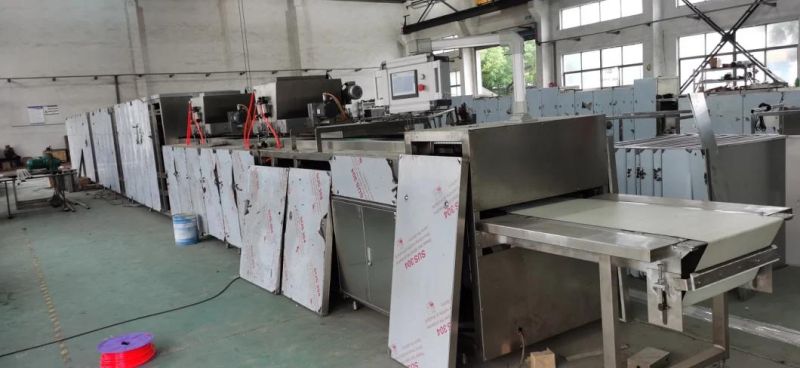

This chocolate making machine series can be used to produce single flavor, two flavors, triple flavors, pastes central filling, nuts central filling and other kinds of chocolates according to different configurations of the machines. This series has two major machine types; semi- automatic and fully automatic and its configurations can be customized according to production needs.![Automatic Chocolate Production Line with Ce Certificates](http://www.522996.com/uploads/image/2021/8a/0c/e0/c7/62f0bef7d497fc1d5c138fa394cd7ad3.jpg)
Technical parameters:
Type | Production capacity( moulds/minute) | Power(KW) | Mould number | Mould demensions(mm) | Weight (kg) | Outside dimension(mm) |
QJJ150 | 6-15 | 7.47 | 200 | 275*175*30 | 500 | 4000*520*1500 |
QJJ175 (single casting head) | 6--15 | 19 | 280 | 275*175*30 | 3500 | 16000*1000*1800 |
QJJ175( double casting heads) | 6-15 | 23 | 330 | 330*200*30 | 4100 | 16000*1000*1800 |
QJJ330-510 | 6-15 | 28 | 380 | 510*200*30 | 5300 | 18000*1200*1900 |
QJJ275 (3-steps depositing) | 6-12 | 38 | 410 | 275*175*30 | 6500 | 15420*5270*2100 |
QJJ1000 | 6-12 | 49 | 580 | ---------- | 8200 | 26800*3500*2550 |
![Automatic Chocolate Production Line with Ce Certificates](http://www.522996.com/uploads/image/2021/ac/f6/f1/ee/38d8cca7dc7726ff7a399aefdea455c0.jpg)
![Automatic Chocolate Production Line with Ce Certificates](http://www.522996.com/uploads/image/2021/2a/4e/ca/c0/716f2a7a9d2231e03e276a790bf47523.jpg)
Products samples:
![Automatic Chocolate Production Line with Ce Certificates](http://www.522996.com/uploads/image/2021/02/a7/3e/35/e33e0b90ea98fc8bd0139a01f624c7c1.jpg)
![Automatic Chocolate Production Line with Ce Certificates](http://www.522996.com/uploads/image/2021/e9/7b/83/fd/c0762af2ce4eec525ae42193efb83b7c.jpg)
![Automatic Chocolate Production Line with Ce Certificates](http://www.522996.com/uploads/image/2021/22/ca/ec/a6/75f739d4e92dfff2da1a4c764fdad992.jpg)
