• Press Materials：Edible Oil
• Model NO.：VIC-50A
• Press Series：Fourth
• Condition：New
• Customized：Customized
• Performance：Automatic
• Structure：Fixed
• Usage：Oil Refinery
• Materials：Stainless Steel
• English：Yes
• Delivery Time：7-10days
• Capacity：80 KG,TIME
• Power：7.47kw
• Transport Package：Wooden Fumigated Box
• Specification：CE, ISO
• Trademark：VIC
• Origin：China
• Production Capacity：100set,Month

Basic Info.

Model NO. VIC-50A Press Materials Edible Oil Press Series Fourth Condition New Customized Customized Performance Automatic Structure Fixed Usage Oil Refinery Materials Stainless Steel English Yes Delivery Time 7-10days Capacity 80 KG/TIME Power 7.47kw Transport Package Wooden Fumigated Box Specification CE, ISO Trademark VIC Origin China Production Capacity 100set/Month

Product Description

                   Mini Crude Oil Refinery Machine


Application:
This is mini oil refinery have the decolorizing port, refinery port, refined oil pot, with the auto temperature equipment, can achieve crude oil degumming, deacidification, drying and decolorization function.
The final oil reach national edible oil standard, directly filling to sale for small-scale processing and oil processing plant.

Advantages:
1.The machine is made of stainless steel, can achieved, dealkalization, dehydration function, according to user needs can also be heated bleaching.
2.Large-scale oil refining equipment miniaturization most economical, oil temperature artificially controlled, all displayed by the meter.
3.Work continuously and efficiently without stop
4.The operation is easy and safe with protector.
5.One process will take about 2.5-3 hours.

Technical data:

Model	VIC-50A	VIC-75B	VIC-75C
Capacity/ time	80kg	200kg	200kg
Required time/batch	3.5hours	3hours	2.5hours
Heating Power	2kwX3/6kw	3kwX6/18kw	3kwx9/27kw
Size	1.5x0.58x1.35m	3.12x0.83x1.55m	3.9x0.83x1.550m
Weight	140kg	300kg	350kg
Gas pump power	1.1kw	1.1kw	1.1kw
Mixer power	0.25X1/0.25kw	0.25X2/0.5kw	0.25X3/0.75kw
Oil pump power	0.37kw	0.75kwx2	0.75kwx3

More pictures and details

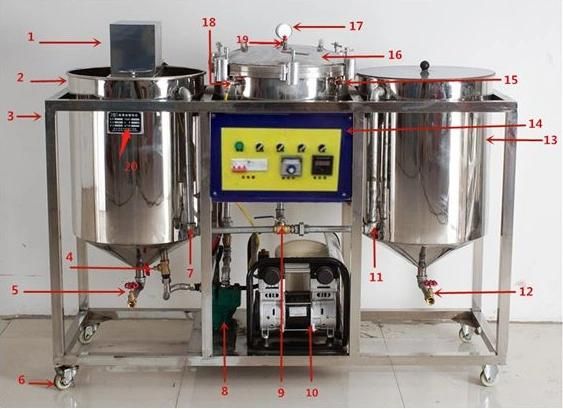

Product structure:

1	Mixing motor	2	Mixing tank
3	Machine frame	4	Oil pump inlet oil valve
5	Discharge degumming valve	6	Moving wheels
7	Filtering tank oil recycling pipe	8	Gear oil pump
9	Three way valves	10	Gas pump
11	Finished oil inlet pipe	12	Discharge degumming valve
13	Finished oil tank	14	Control panel
15	Discarge gas valve	16	Filter tank
17	Filter tankPressure meter	18	Air in valve
19	Safe air out valve	20	Product marks

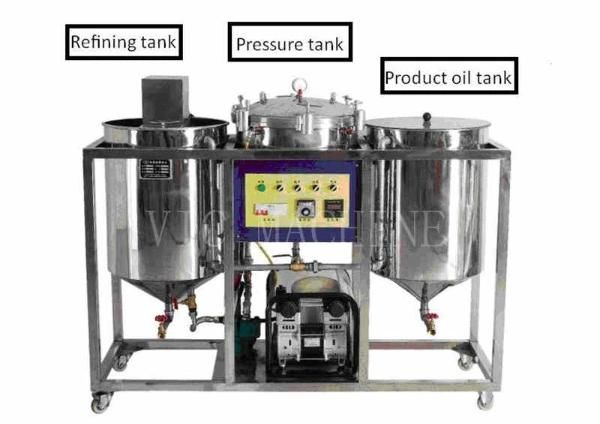

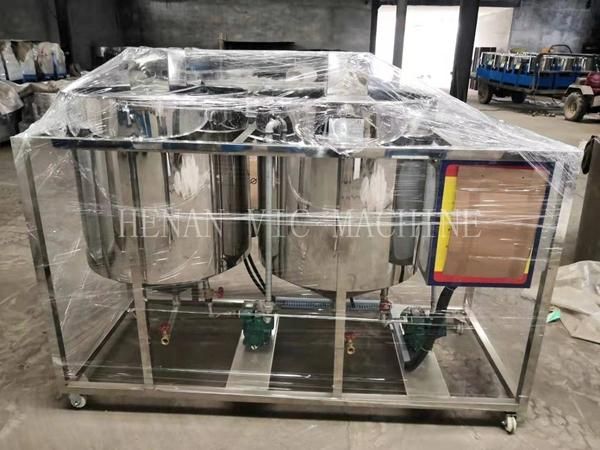

VIC-50A oil refienry


Control system

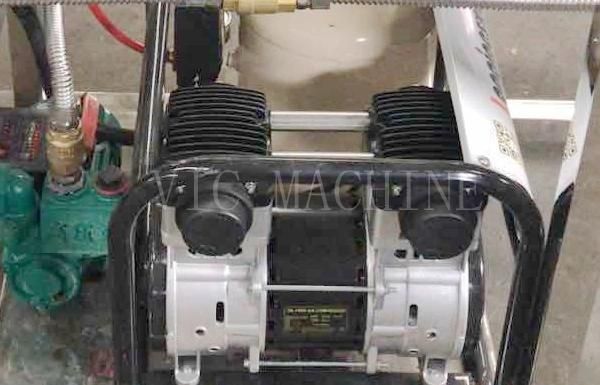

Air pump

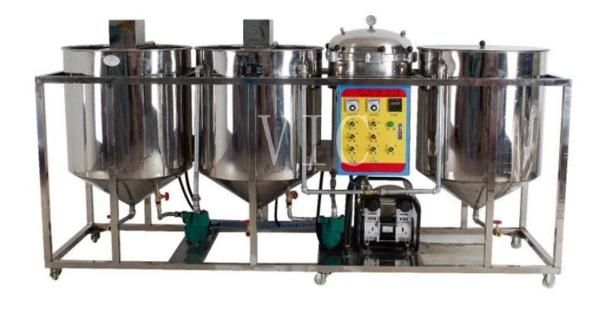

VIC-75B oil refinery machine

VIC-75C oil refinery

Final oil

Package picture

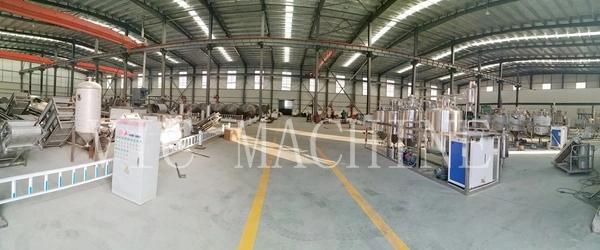

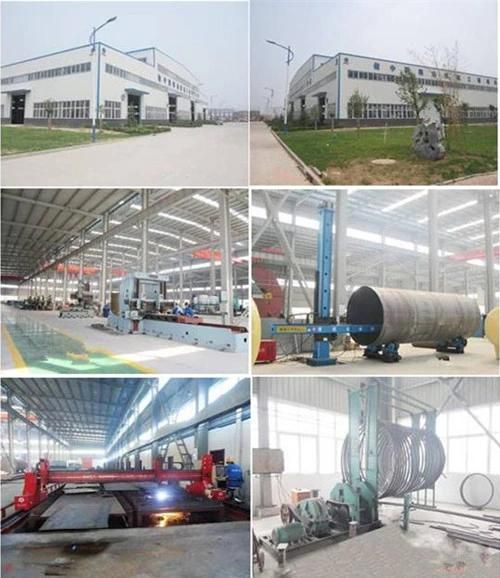

Factory view

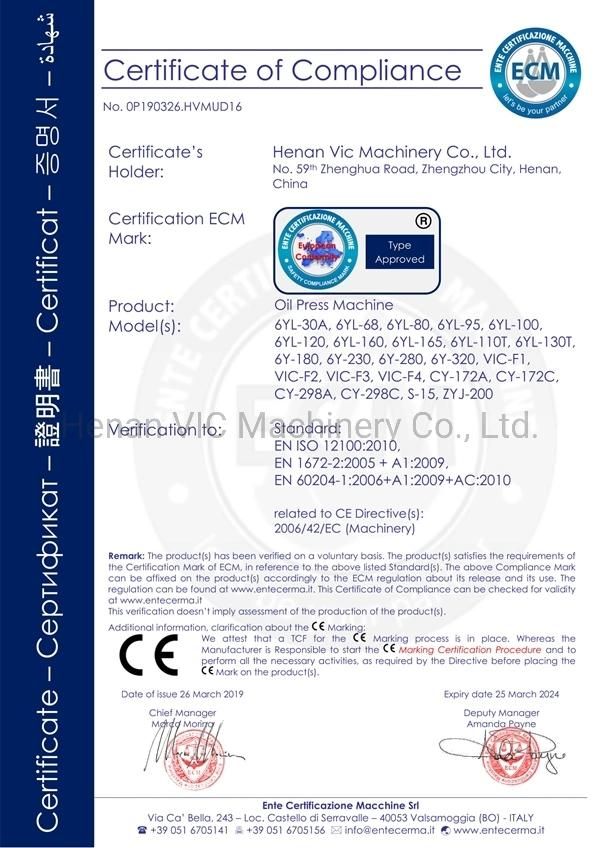

Company certification
