• Model NO.：WY-100
• Working Pressure：0.09 MPa
• Test Pressure：0.15 MPa
• Stirring Speed：36 R,Min 0.75kw
• Heating Method：Electric Heating
• Heating Power：24 Kw
• Transport Package：Wooden Case
• Specification：SUS304
• Trademark：Wanyuan
• Origin：Wenzhou China
• HS Code：8479819000
• Production Capacity：5000

Basic Info.

Model NO. WY-100 Working Pressure 0.09 MPa Test Pressure 0.15 MPa Stirring Speed 36 R/Min 0.75kw Heating Method Electric Heating Heating Power 24 Kw Transport Package Wooden Case Specification SUS304 Trademark Wanyuan Origin Wenzhou China HS Code 8479819000 Production Capacity 5000

Product Description

Heating and cooling tank for Pasteurized Milk
1. Heating, cooling, mixing and heat preservation
2. Mixing speed can be fixed or variable or VFD
3. Conical bottom or slope bottom

Heating and cooling tank description

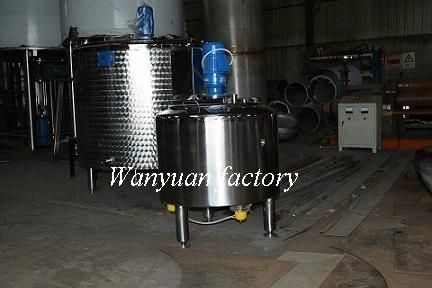

Heating and cooling tank is a kind of stainless steel mixing tank with function of heating, cooling and mixing, as well as heat preservation. We also call it hot and cold urn, or you can call it stainless steel mixing tanks.

How does this cooling and heating tank work

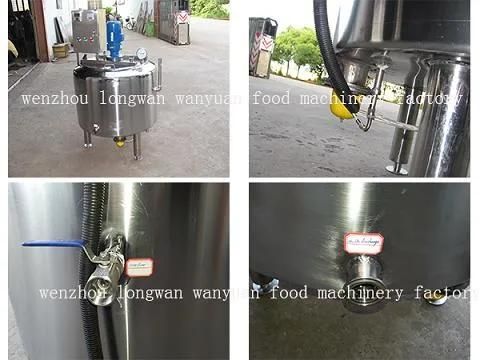

Heating and cooling tanks usually heated by electric, steam or hot water. There is a jacket between the inne layer and out layer of the cooling and heating tank. This jacket can be dimple jacket or gap jacket. Hot water runs in the cooling and heating tanks jacket from bottom, and being drainaged out from the top of the jacket. The mixer for the cooling and heating tank is used to accelerate cooling and heating speed.



volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
