• Model NO.：LQ3A-20
• Power：Electric
• Transport Package：Wooden Case
• Origin：Wenzhou China

Basic Info.

Model NO. LQ3A-20 Power Electric Transport Package Wooden Case Origin Wenzhou China

Product Description

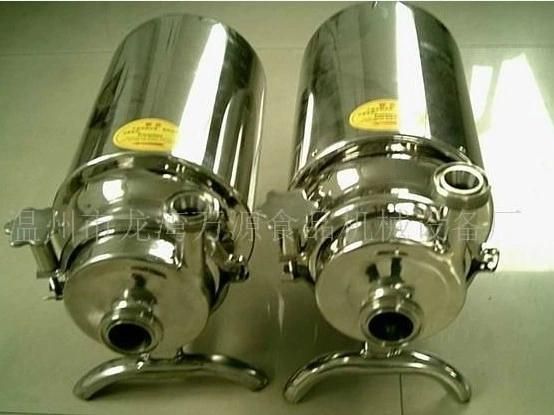

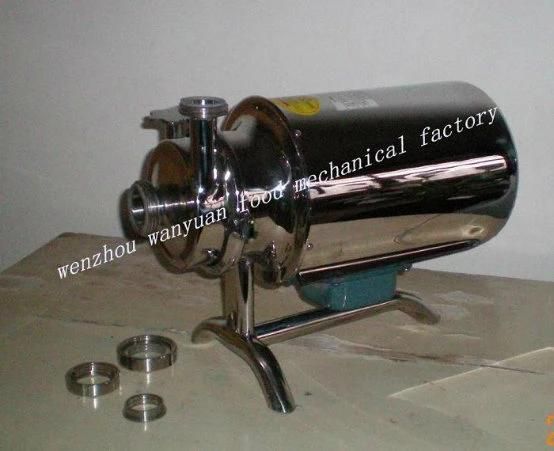

2HP Sanitary Centrifugal Pump For Milk And Juice
SpecificationsStainless Steel Food Grade Sanitary Pump1. Low noise2. Can be disassembled and cleaned easily3. Stable work4.Best price

sanitary centrifugal pump,beverage pump,sanitary centrifugal pump1.type:sanitary centrifugal pump2.material:stailess steel 304,316L3.standard:SMS,DIN,3A,IDF4.power:0.75-11kw&1HP-15HP5.FLUX:3-40T6.head lift:18-50m7.application:it,s used for foodstuff,dairy,food,beverage,pharmacy,power metally these hygiene fields.with super quality & competitive price. sanitary beverage pump/sanitary water pump/sanitary centrifugal pump 1.standard:3A,ISO,DIN,SMS,IDF2.material:stainless steel:(316,304,316L.304L)3.motor:ABB4.suction lift:8m,total lift:19-34m5.flux:5-30T
2HP Sanitary Centrifugal Pump For Milk And Juice
sanitary beverage pump-sanitary water pump-sanitary centrifugal pump

 sanitary beverage pump features:

1. It is suitable for transporting high viscosity, ensity and any medium containing particle.

2. The rotational speed is low, generally keep already existing quality not changing , any physics and chemistry properties won't be changed.

3. LQ3A Stainless Steel  stainless steel food grade Pump can be also called colloidal pump. All liquid flowing parts are made of stainless steel. It can transmit high viscosity, thickness and with particle medium.

4. High pressure of out let makes sure the long distance and high resisitance transportation with stable capacity used widely in health ,food ,chemical, industial areas .

5. Suitable temperature: -30 °C to 200 °C

Wenzhou wanyuan food machinery factory——sanitary beverage pump

Here below the Sanitary Centrifugal Pump specification

Model	Discharge Capacity per 100r  (L)	Speed range (rpm)	Flow (L/H)	Motor power (kW)
LQ3A-6	6	200~500	650~1600	1.5
LQ3A-8	8	200~500	850~2160	1.5
LQ3A-12	12	200~500	1300~3200	2.2
LQ3A-20	20	200~500	2100~5400	3
LQ3A-30	30	200~400	3200~6400	4
LQ3A-36	36	200~400	3800~7600	5.5
LQ3A-52	52	200~400	5600~11000	5.5
LQ3A-66	66	200~400	7100~14000	7.5
LQ3A-78	78	200~400	9000~18000	7.5
LQ3A-100	100	200~400	11000~22000	11
LQ3A-135	135	200~400	15000~30000	11
