• Model NO.：XZD-116
• Operation：Continuous
• Energy：Heat Sterilization
• Property：Chemical Sterilization
• Type：Induction Electronics Sterilization Equipment
• Capacity：Customized
• Color：Customized
• Function：High Temperature Steam
• Power：Customized
• Voltage：220~240V 50Hz
• Warranty：1 Year
• Transport Package：Standard Packaging
• Specification：Stainless Steel
• Trademark：Evertech
• Origin：Shandong, China (Mainland)
• HS Code：84778000
• Production Capacity：5 Set,Sets Per Year

Basic Info.

Model NO. XZD-116 Operation Continuous Energy Heat Sterilization Property Chemical Sterilization Type Induction Electronics Sterilization Equipment Capacity Customized Color Customized Function High Temperature Steam Power Customized Voltage 220~240V 50Hz Warranty 1 Year Transport Package Standard Packaging Specification Stainless Steel Trademark Evertech Origin Shandong, China (Mainland) HS Code 84778000 Production Capacity 5 Set/Sets Per Year

Product Description

Price gas steam high quality autoclave with processing fibers and composites in China



Packaging&delivery

Packaging Details   Standard packaging & according to the customers' needs

Delivery Time    Shipped in 30 days after payment

Product Description

Glass reaction vessel plays a vital role for the production of laminated glass, the glass are bonding together using heat, pressure and cooling. The equipment consist of kettle body with heating and cooling system and control system.

This Autoclave is able to achieve  temperature, pressure, vacuum , cooling, process parameters such as the timing of the cycle , real-time online control system equipment, consisting mainly consists of the following subsystems :
( 1 ) tank : the tank , the tank door mechanism , motor temperature , duct board insulation layer to form a high pressure , high temperature of the tank ;
( 2 ) Safety interlock device: automatic interlock by the pressure , manual interlocking , high pressure alarm device components.
( 3 ) Open the door device: Open the door manual electric dual-use design , the normal power outage shut down the tank door opens , the door is the most advanced way .
 ( 4 ) sealing device : cans door using silicone inflatable seals , high pressure 400 °. Never worn.
( 5 ) Pressure system : the compressor , tank , pressure control valves, piping, pressure transmitters and pressure gauges and other components transmission and control systems ;
( 6 ) Heating system: stainless steel heating pipes , heat fan , duct board , insulation , temperature control system components, the maximum temperature of the heating power to meet the requirements of the cavity and the heating rate requirements ;
( 7 ) Temperature cycling system: circulating fan , the air guide plate , the shroud component , accelerate heat transfer and circulation , a uniform temperature field ;
( 8 ) Vacuum system: vacuum pumps, piping, vacuum gauge and vacuum valve composed for the package provides composite preform vacuum conditions ;
( 9 ) Automatic control system: Siemens PLC control system, pressure , temperature, cooling the whole process parameters such as high-precision control and real-time recording .



Item	800	1200	1500	1700	2000
Inner diameter(mm)	800	1200	1500	1700	2000
Canister length(mm)	22000	3000	3000	4000	5000
Number of lid sawtooth	12	12	14	14	16
thickness of lid (mm)	10	10	10	10	16
Thickness of the tank body(mm)	10	10	10	10	12
Working pressure(MPa)	0.8	0.8	0.8	0.8	0.8
Dimensions(mm)	22766*1445	4010*1575	3960*2150	4925*2162	6200*2590
(length*width*height)	*1170	*1670	*2050	*2070	*2424
Weight(Kg)	5580	2017	2950	3835	650





Packaging & Shipping



We usually pack our products by standard export cartons as master carton.

We always choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

Our Services



First-class per-sale service:



*your inquiry related to our equipment or price will be replied within 24 hours

*well-trained and experienced staff will answer all your inquiries in English of course

*OEM&ODM projects are highly welcomed

*We have strong R&D team here to help

*Your business relationship will be confidentiality to any third party



First-class after-sale service:

*1 year warranty period,please don't hesitate to contact us if you have any question with the equipment.



Company Information
Qingdao Evertech Industry Co. Ltd. is professional manufacturer of D1,D2 pressure vessel,Xinzhengda has complete qualification,advanced equipment,strong technical power,well-found detection means perfect-stable quality assurance system.we has long been committing to manufacture pressing and curing equipment for composite materials.We creat the new composite autoclave company with numerous colleges,scientific research units,military enterprises joint to design R&D in the aerospace,electronic communications,defense weapon,rail transportation,high performance racing,sailing,wind turbine,vacuum processing, wood modification,building reinforcement,the equipment are widely used in many fields.What's more,the device get good results.At the same time ,we can design a reasonable solution for customers according to their requirements.And we also provide the product's design,manufacturing,installation,commissioning,maintenance in the whole service line so as to provide qualified products to customers.FAQ



why to choose our autoclave ?



1.Our ram material is national government pointed famous steel factory ,and standard pressure vessel special plate .Each steel is tested before leaving factory .It have good bear pressure.
2.heating area is uniform ,according to your working technology to design inside heating system ,we have special design heating sink ,,it is arranged in the up side ,bottom ,left side ,right side .

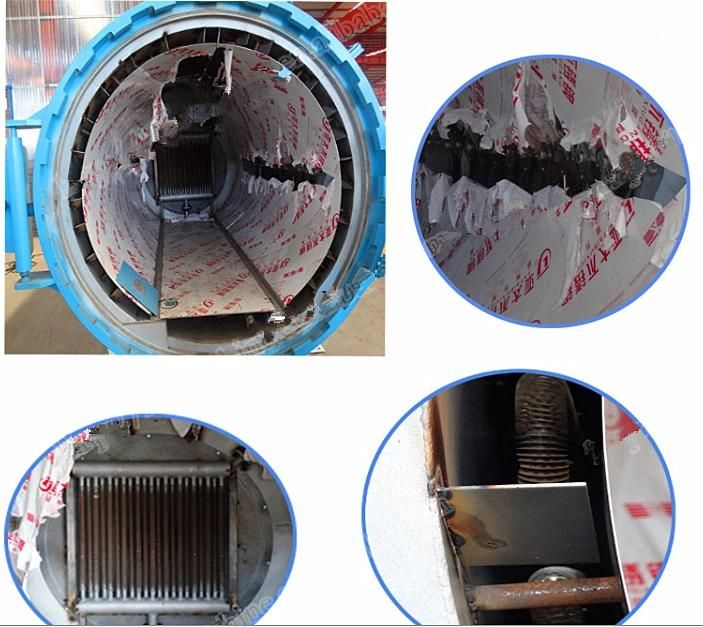

3.Adopt external insulation ,the galvanized sheet is welded around the tank (it wont rust within 10 years),inside are 80mm insulation cotton ,heat insulation head add 60mm thermal insulation , then add fixed bolt .To make inside heating value  can be used enough ,and reduce consumption , save cost . and it is easy for transportation.( see below photos ).
