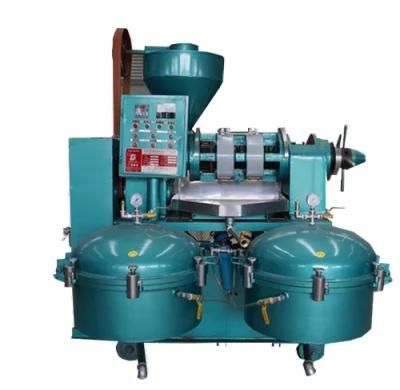

3tpd Peanut Oil Mill Machine Temperature Controlled Oil Pressers

Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.

Type：Spiral Oil Press
Application：All
Voltage：380V
Appearance：Horizontal
Press Materials：Peanut
Press Series：Fourth

Base Info

Model NO.：YZYX90WK
Condition：New
Customized：Non-Customized
Processing Capacity：3 Ton Per Day
Motor Power：5.5kw
Oil Content of Dry Cakes：Less Than 7.8%
Spiral Axes Rotate Speed：32-42 Rpm
Weight：285kg
Measurement(L*W*H)：1250*690*1140mm
Advantages：High Oil Output and Easy Operation
Temperature Control Power：2kw
Main Shaft Heating Power：2kw
Transport Package：Export Wooden Case
Specification：YZYX90WK
Trademark：GUANGXIN
Origin：China
HS Code：84792000
Production Capacity：600sets,Month

Description

Processing capacity(ton per 24 hrs)3Motor power (kw)5.5Oil content of dry cakes(%)less than 7.8Spiral axes rotate speed(rpm)32-42Temperature control power (kw)2Main shaft heating power(kw)2Weight(kg)285Measurement(L*W*H)(mm)1250*690*1140

Oil Pressing Site

Our Advantages

Our Company

Our Production Process

Our Certificate

Exhibition all over the world

Packing and Delivery

ANSWER AND QUESTIONS
