3A Positive Displacement Rotary Lobe Pump

Donjoy Technology Co., Ltd.
  • Condition：New
  • Voltage：AC110V, 220-240V, 360-400V, 420-460V, 630-690V, 50
  • Composition：Rotary Lobe Pump
  • End Connections：Butt-Weld, Tri-Clamp, Thread, Flange
  • Body Material：AISI 304 (1.4301), AISI 316L (1.4404),Iron Gear
  • Body Types：Horizontal Type (Tul) & Vertical Type (Tur)

Base Info

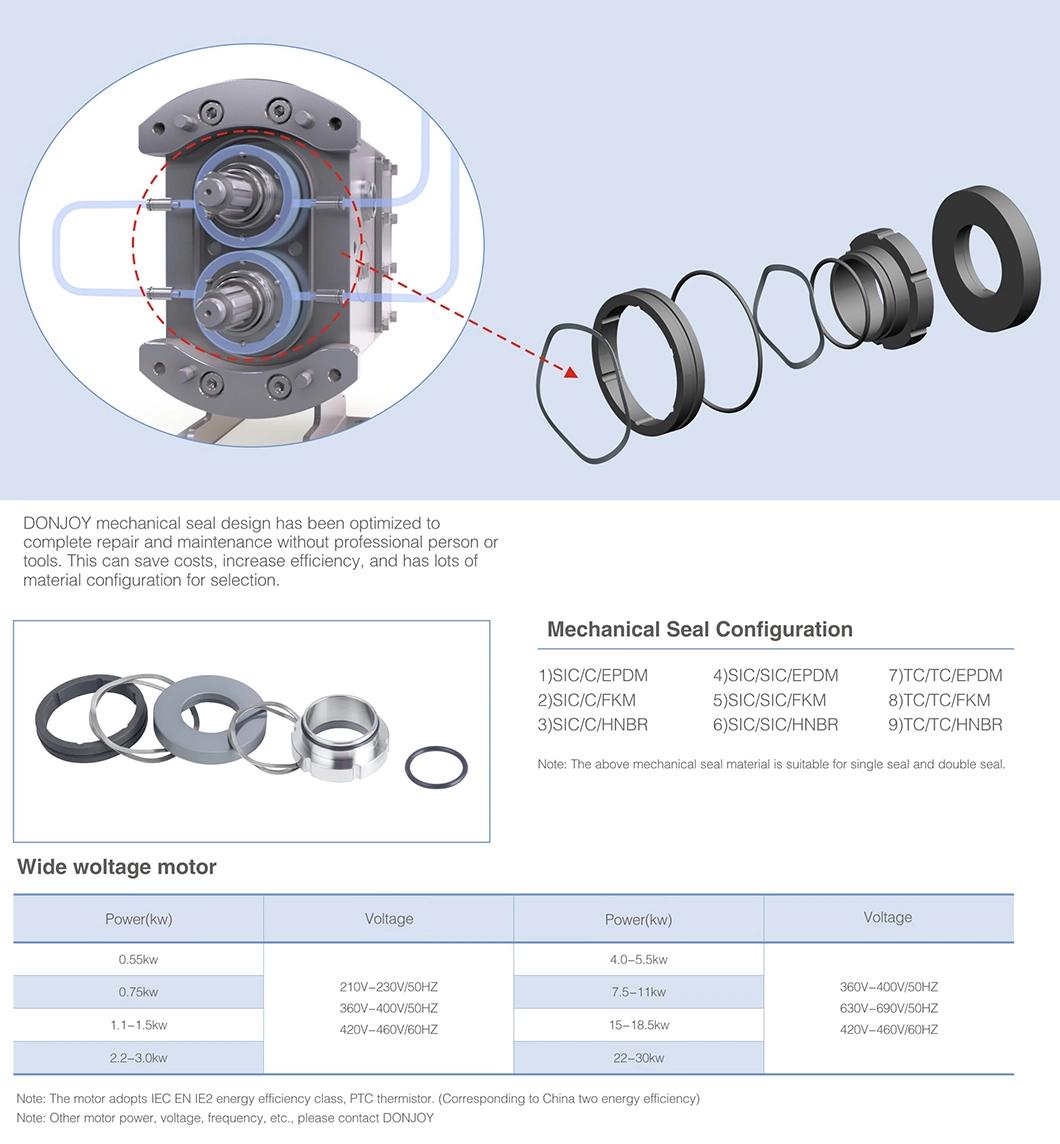

  • Mechanisal Seal：Single Seal (Standard), Double Mechanical Seal (Op
  • Maximum Temperature：150degree,302f
  • Product Name：Positive Displacement Rotary Lobe Cam Pump
  • Keyword：Positive Displacement Rotary Lobe Cam Pump
  • Transport Package：Wooden Case
  • Trademark：DONJOY
  • Origin：China
  • HS Code：8413810090

Description

Inlet & Outlet Sizes1″-4″ (DN25-DN100)End Connectionsbutt-weld, tri-clamp, thread, flangeBody MaterialAISI 304 (1.4301), AISI 316L (1.4404)Body TypesHorizontal Type (TUL) & Vertical Type (TUR)Mechanisal Sealsingle seal (standard), double mechanical seal (option), SIC/C, SIC/SICPower Supply0.75KW-15KWVoltageAC110V, 220-240V, 360-400V, 420-460V, 630-690V, 50/60HzMaximum Flow Rate90 m³/h, 395 GPMMaximum Pressure174psi, 12baMaximum temperature150ºC/302°FMaximum Revolution1450 RPMInternal FinishRa 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.External FinishRa 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.3A Certified Stainless Steel Sanitary Rotary Lobe Pump for Beverage Food Processing Pharmaceutical

High Purity, Low Noise
High pressure to 12 bar

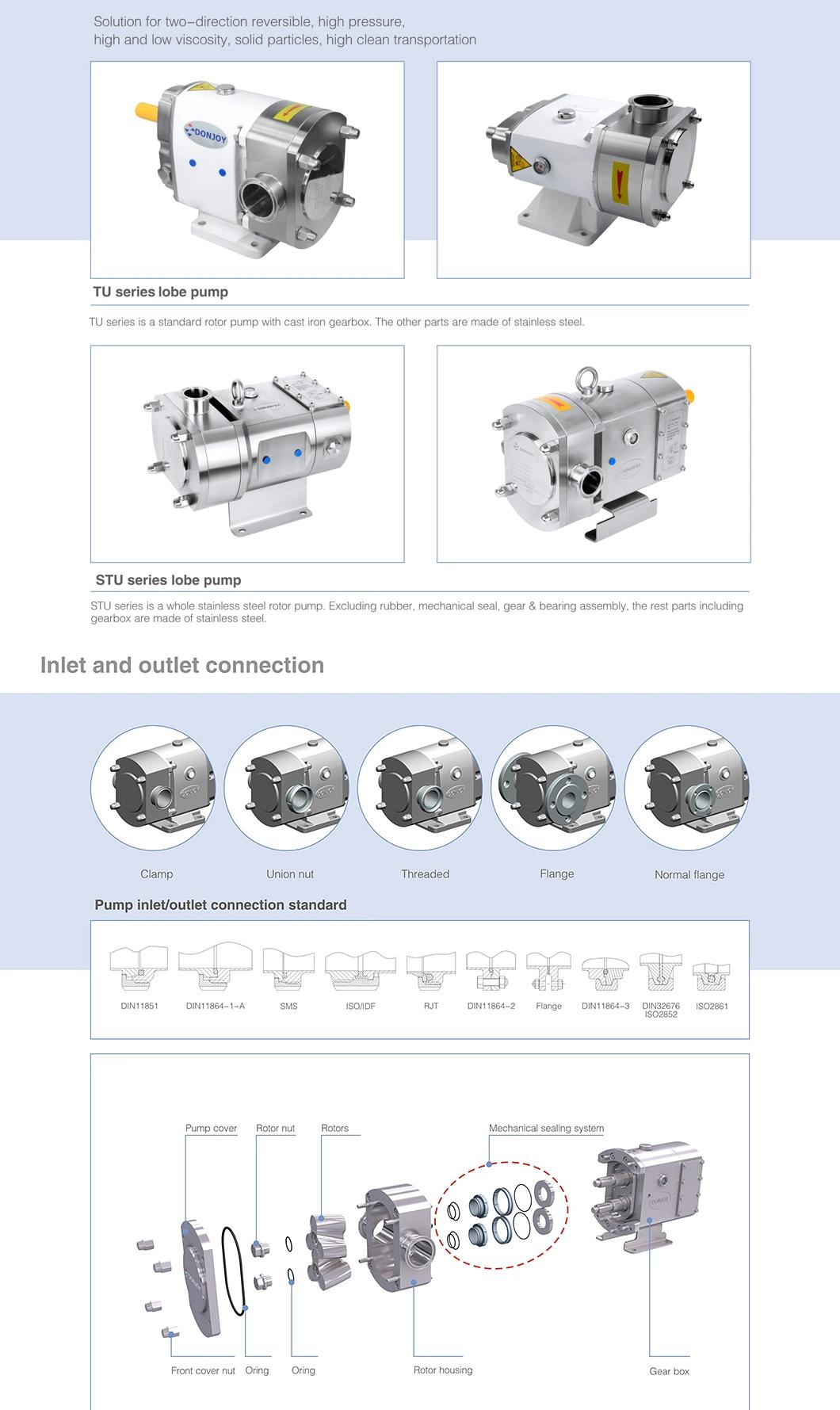

Horizontal Type (TUL) & Vertical Type (TUR)

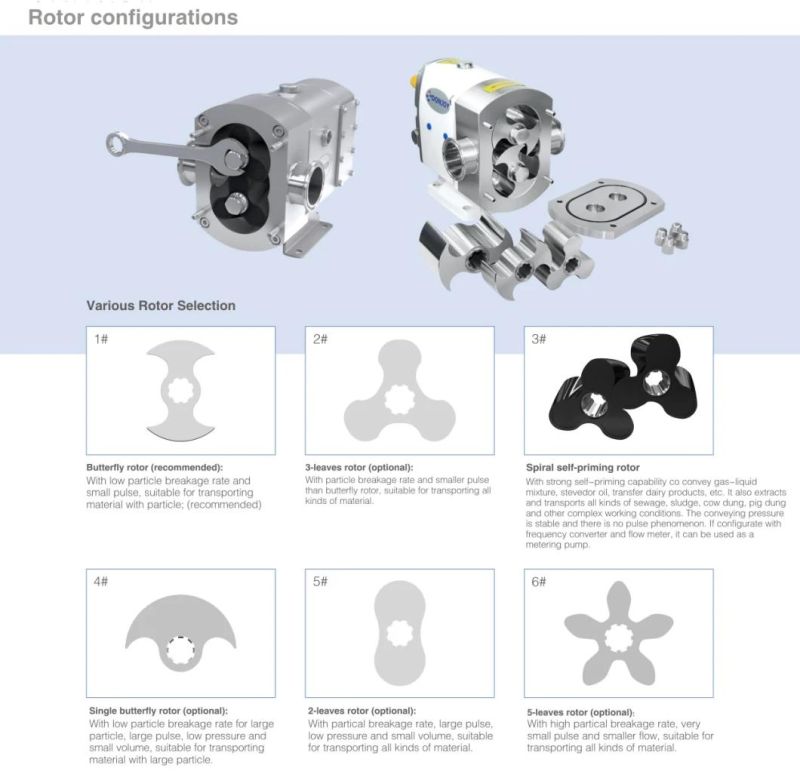

Variety of lobe options: butterfly, single, bi-wing, and tri-lobe.
Hygienic designed according to 3A standard
Sanitary mechanical seal, easy cleaning and maintenance
Applied to CIP cleaning and SIP sterilization

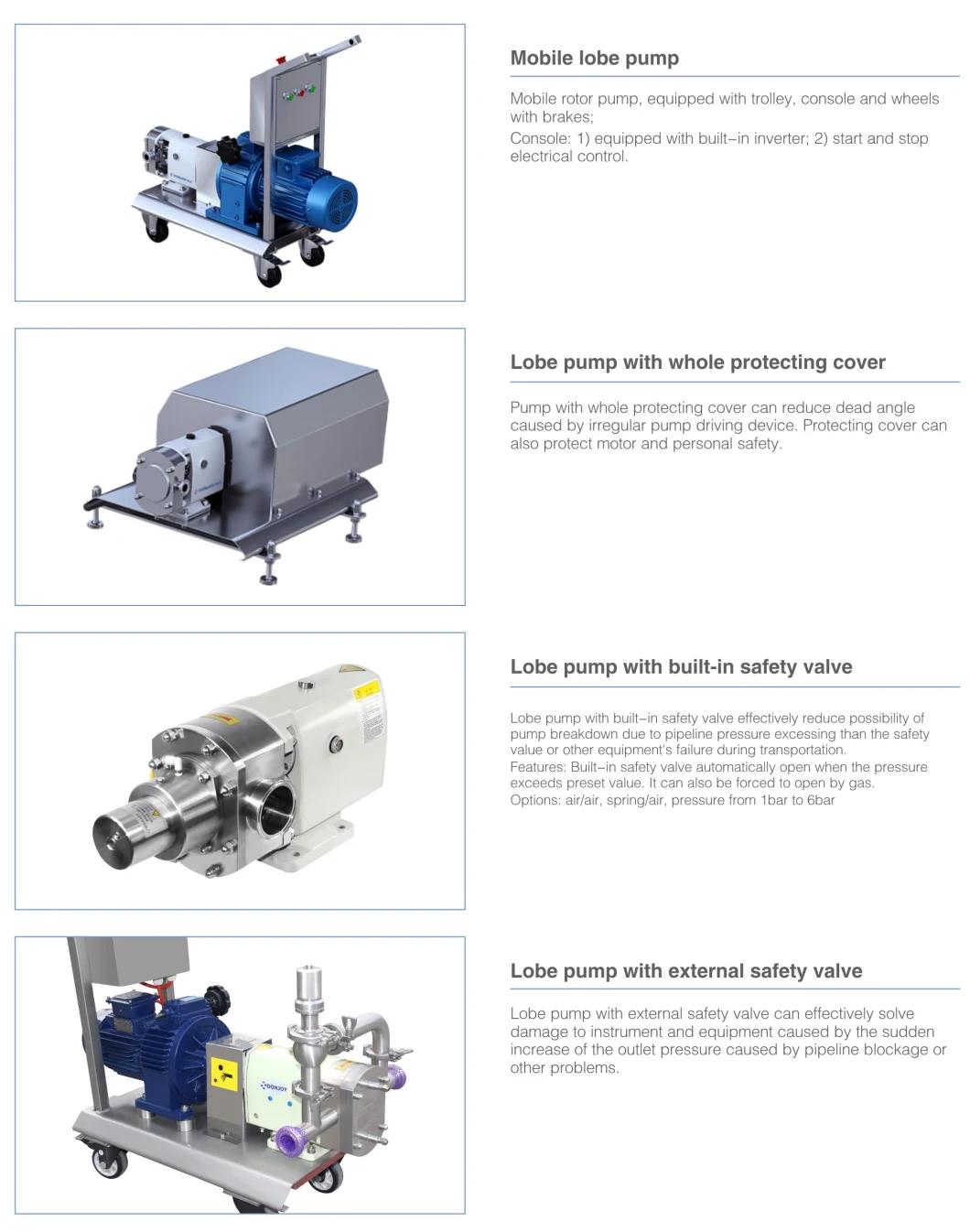

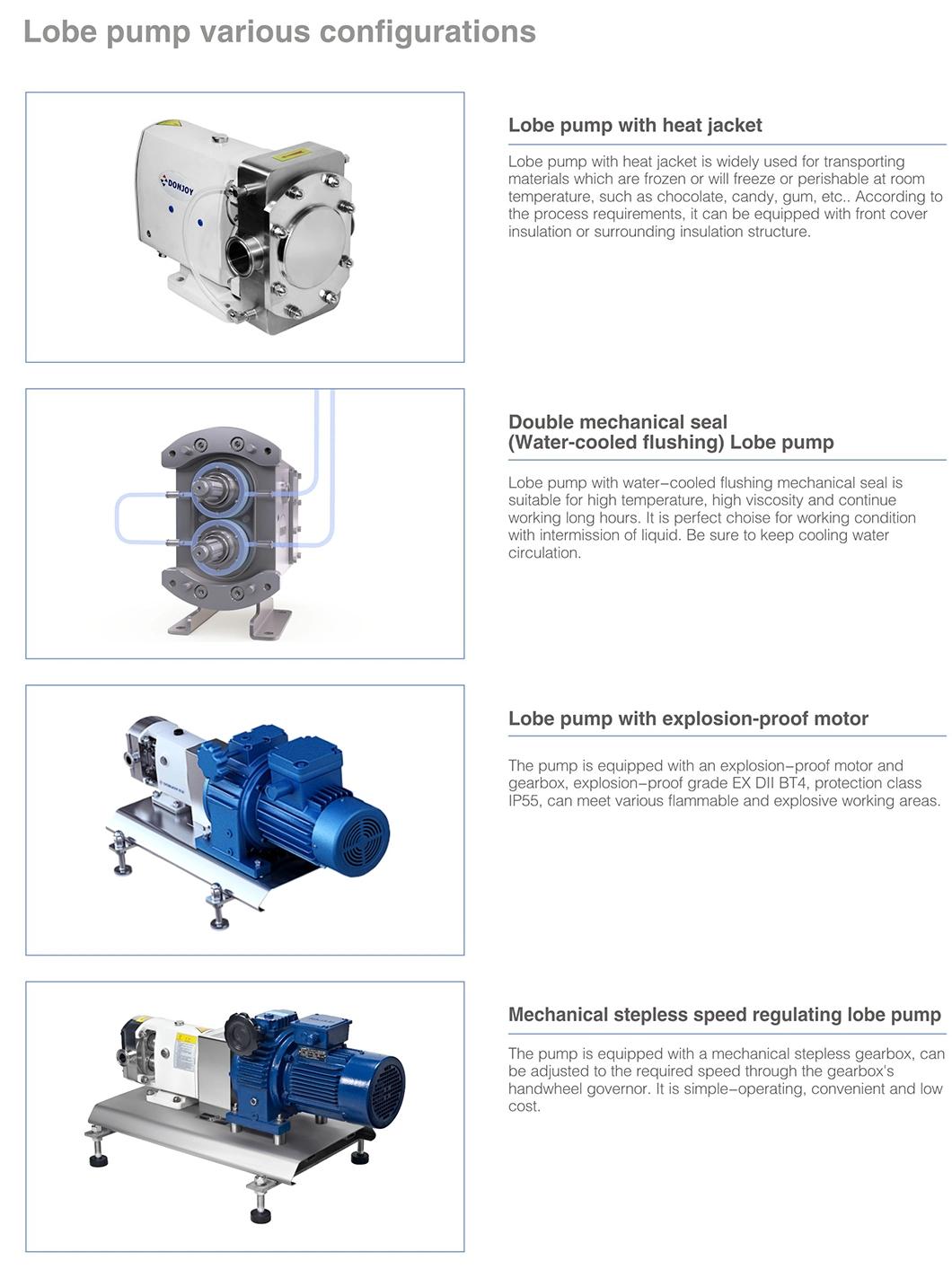

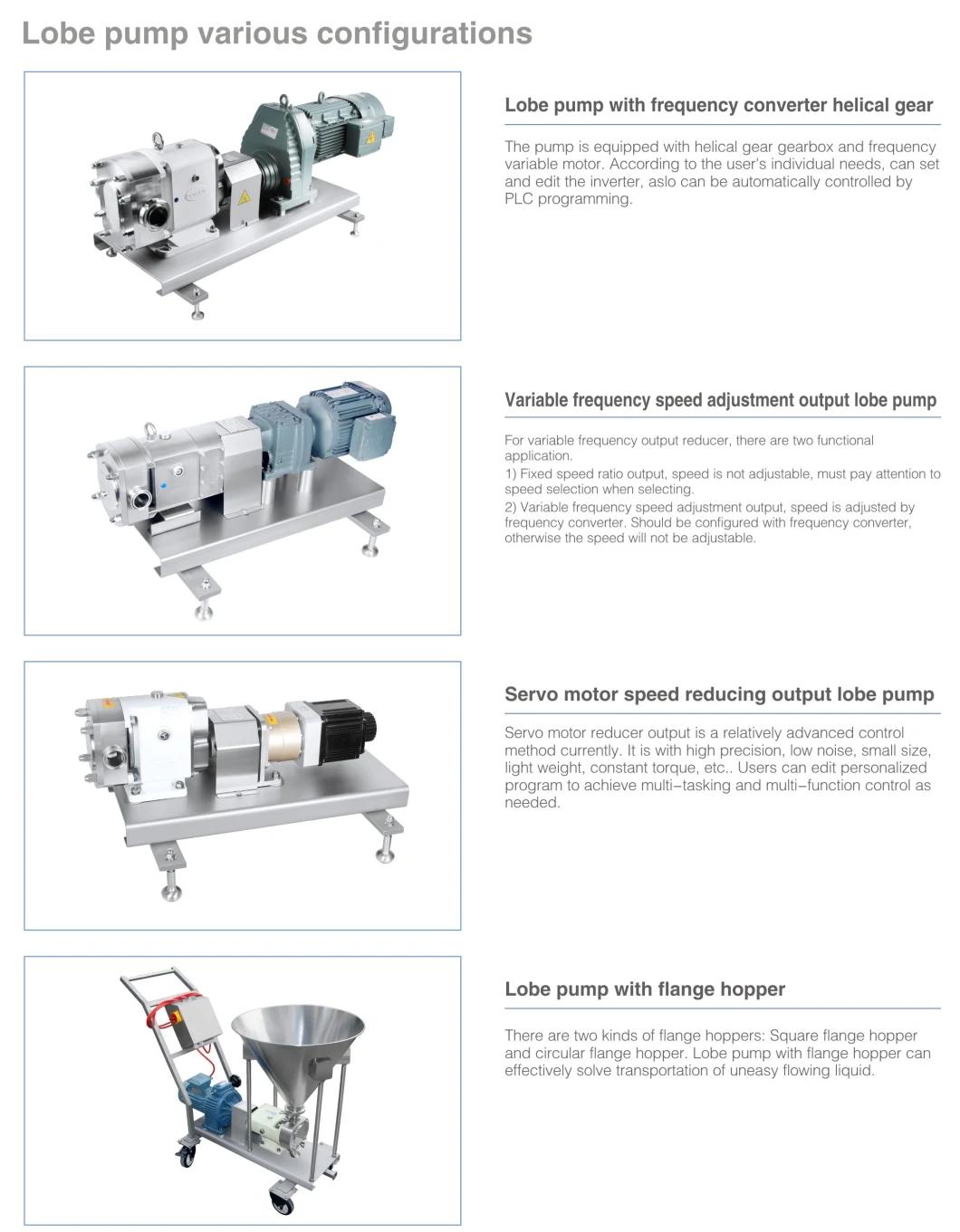

Different drives and devices
1) Manual adjustment, continuously variable transmission
2) Variable - frequency motor adjustment
3) Fixed speed output transmission
Motor utilize the IEC EN IE2, PTC thermistor.
3A Positive Displacement Rotary Lobe Pump
3A Positive Displacement Rotary Lobe Pump
3A Positive Displacement Rotary Lobe Pump
3A Positive Displacement Rotary Lobe Pump

3A Positive Displacement Rotary Lobe Pump

3A Positive Displacement Rotary Lobe Pump

3A Positive Displacement Rotary Lobe Pump3A Positive Displacement Rotary Lobe Pump
3A Positive Displacement Rotary Lobe Pump
