• Model NO.：KQ-10
• Name and Description：Stainless Steel Sanitary Plate Heat Exchanger Alf
• Function：Heating or Cooling
• Flow：1-30t,H
• Size：400mmx800mmx1100mm
• Maximum Working Pressure：16kg
• Frame Material：Sanitary Stainless Steel
• Max Temperature：160°, Food Pasteurization
• Warranty：1year
• Plate Heat Exchanger Material：Ss 304,316
• Gasket：Silicon, PTFE
• Transport Package：Wooden Box
• Specification：DIN, SMS, ISO, 3A, BPE, CMP, IDF
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：1000units,Month

Basic Info.

Model NO. KQ-10 Name and Description Stainless Steel Sanitary Plate Heat Exchanger Alf Function Heating or Cooling Flow 1-30t/H Size 400mmx800mmx1100mm Maximum Working Pressure 16kg Frame Material Sanitary Stainless Steel Max Temperature 160°, Food Pasteurization Warranty 1year Plate Heat Exchanger Material Ss 304/316 Gasket Silicon, PTFE Transport Package Wooden Box Specification DIN, SMS, ISO, 3A, BPE, CMP, IDF Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 1000units/Month

Product Description

Stainless steel sanitary plate heat exchanger




Working principle
The plate heat exchanger used for food pasteurization procedure is consists of a pack of corrugated metal plates with port holes for the passage of two fluids between which heat transfer will take place. The plate pack is assembled between a frame plate and a pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the channel and directs the fluids into alternate channels. The number of plates are determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure.
Frame
The plates and the pressure plate are located by an upper bar and a lower bar, both of which are fixed to the support column. On the largest type some tightening bolts are equipped with ball bearing washers in order to facilitate opening and closing of the unit. The frame is designed for mounting on a floor only. Standard feet are fixed. One unit can contain several sections, separated by connection plates with interchangeable connections.
Plates

Plate material	Applicable fluids
Stainless steel(SU304.316 ect)	Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd	Sea water, salty water, salt compounds
20Cr, 18Ni,SMO	Dilute sulfuric acid, water solution of salt matter, Inorganic solution
Nickel	High temperature and high concentration of caustic soda
Hastelloy	Concentrated sulfuric acid, Hydrochloric acid, Phosphoric acid

Rubber Type	Fluorubber	EPDM	NBR
Tensile Strength MPa	≥13	≥16	≥17
Elongation   %	≥120	≥170	≥200
Shore A Hardness	80±5	80±5	75±3
Tear Strength KN/M	≤30	≤30	≤30
Compressive Deformation	24h×23≤2.5	24h×23≤5	24h×23≤2.5
	24h×180≤15	24h×150≤15	24h×125≤15
Ozone Resistance	Excellent	Excellent	good

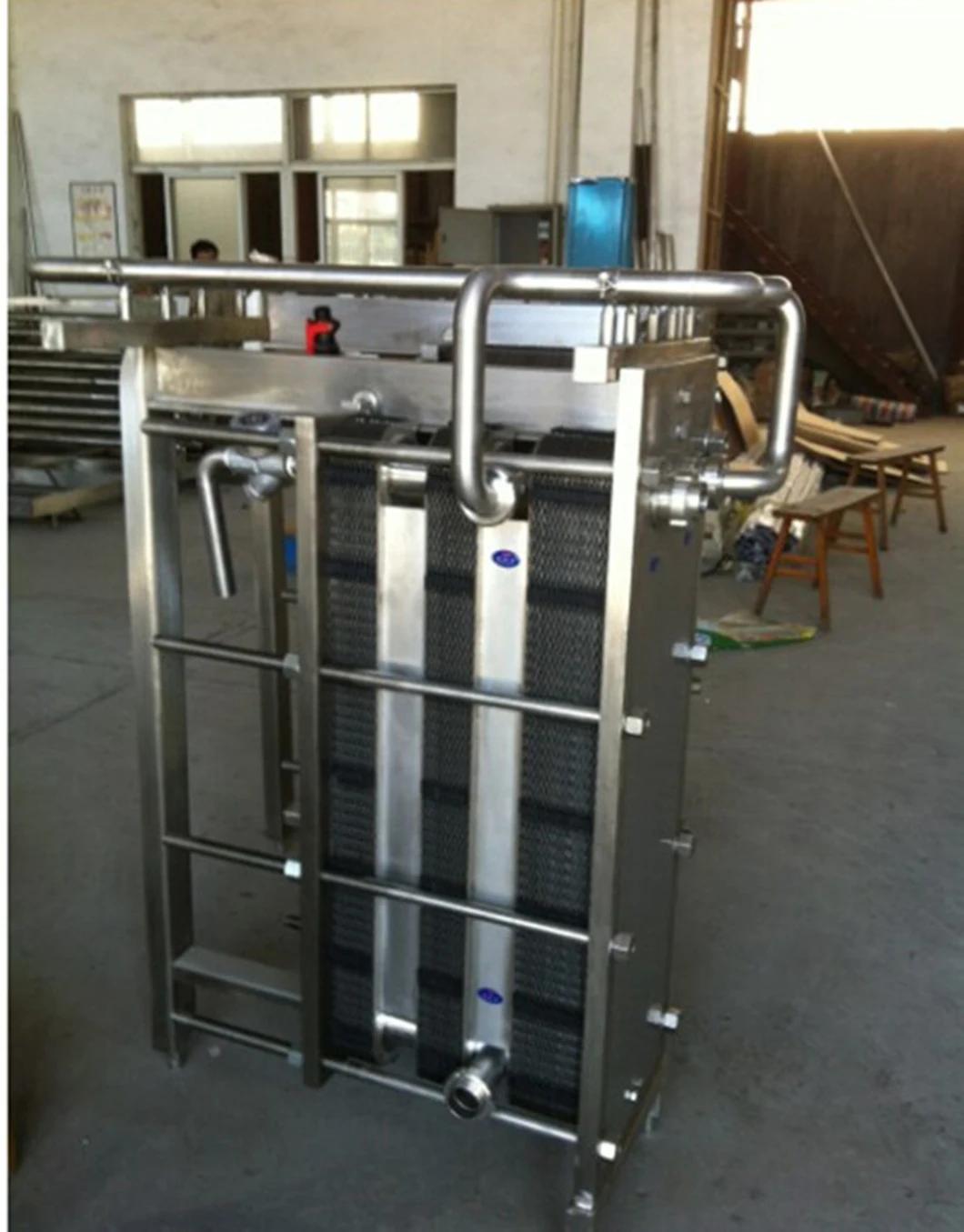

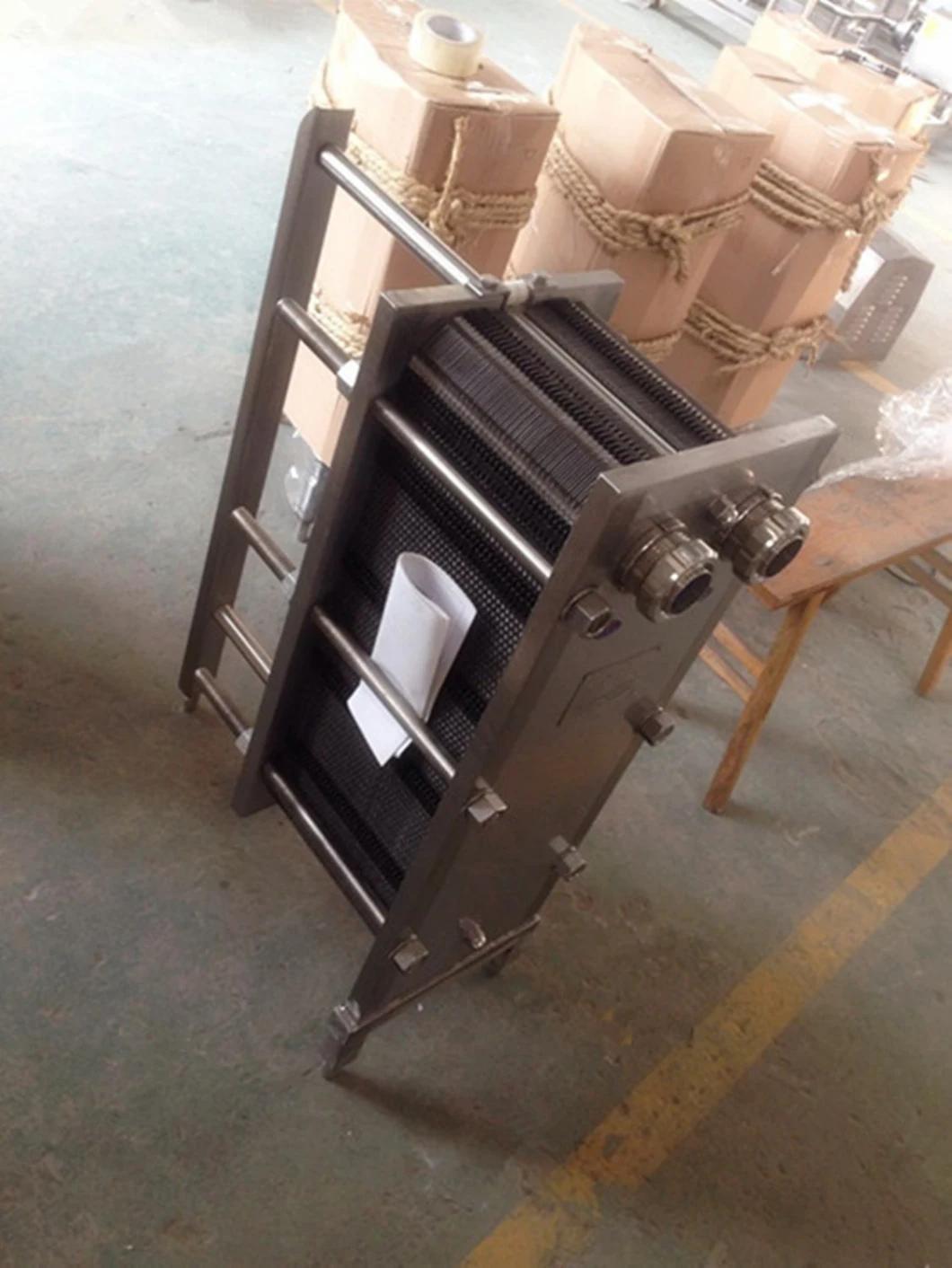

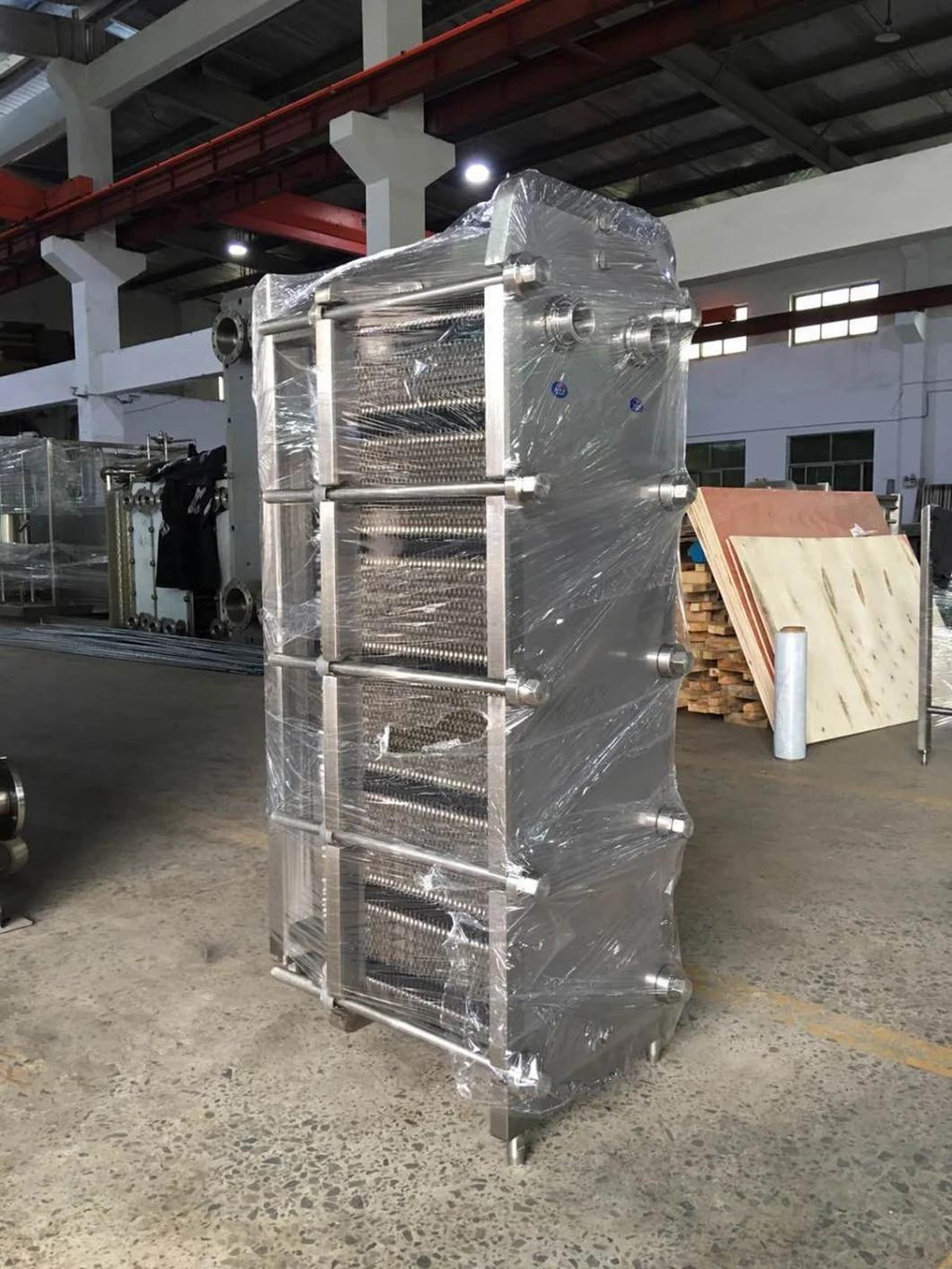

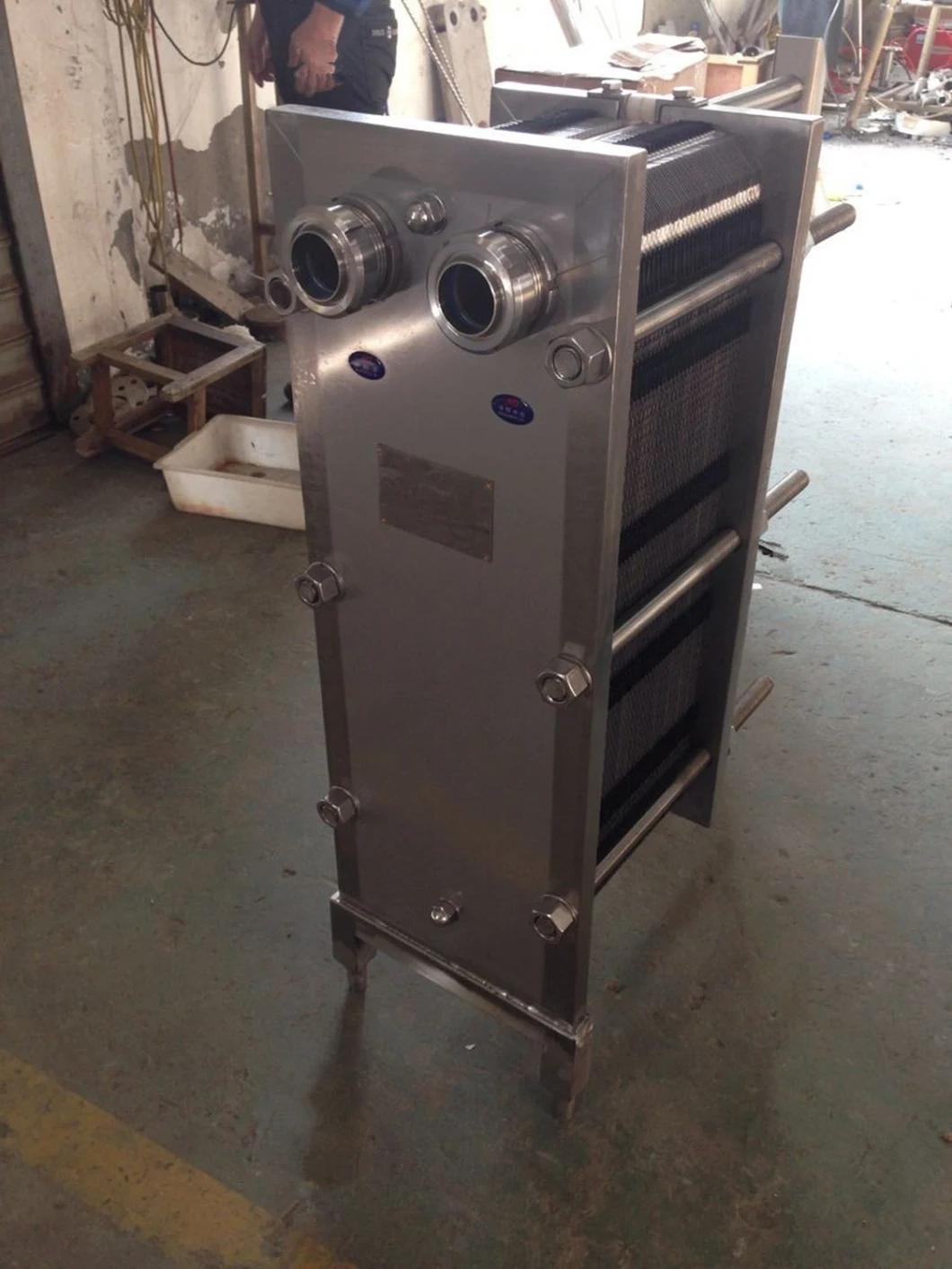

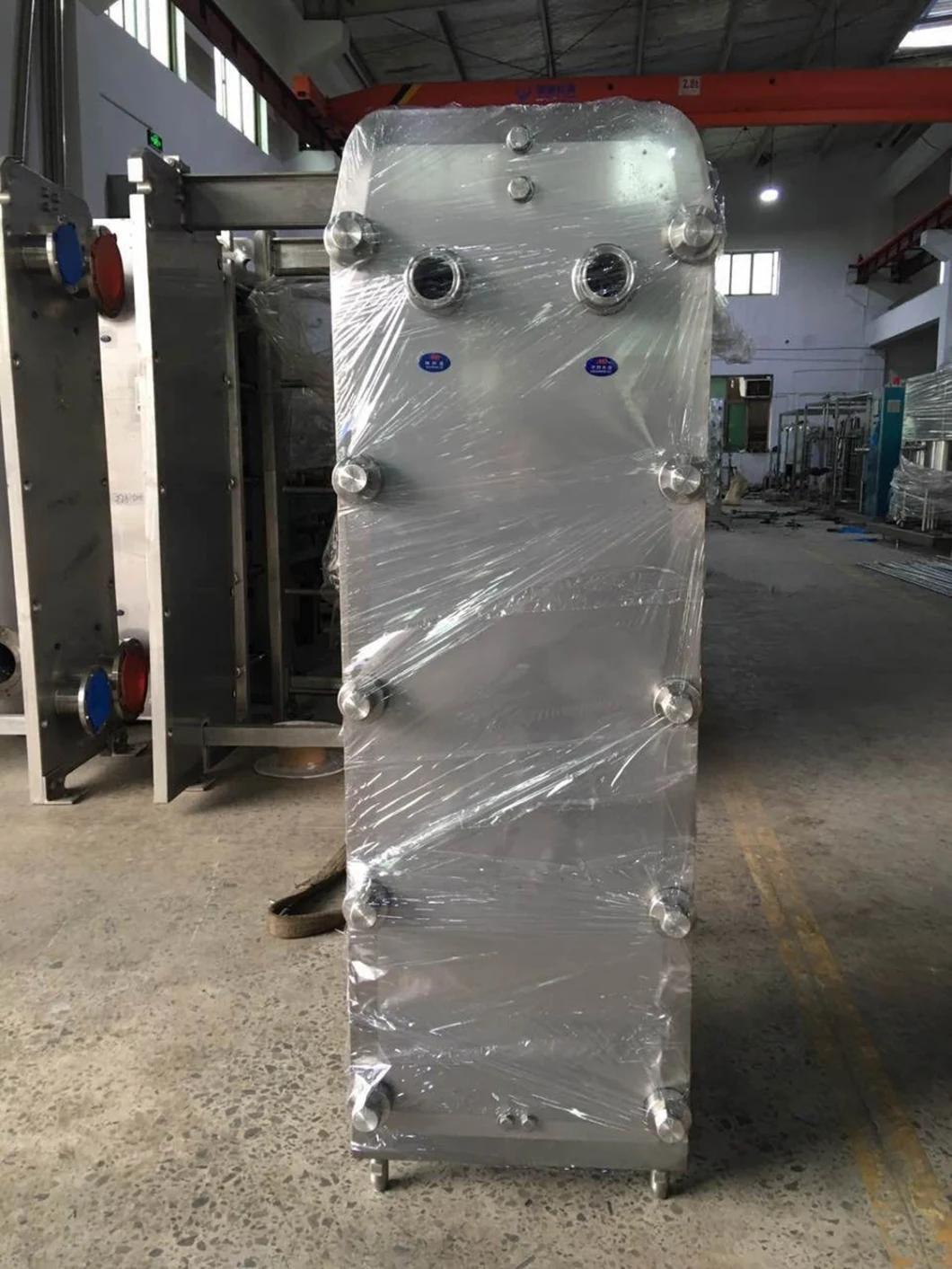

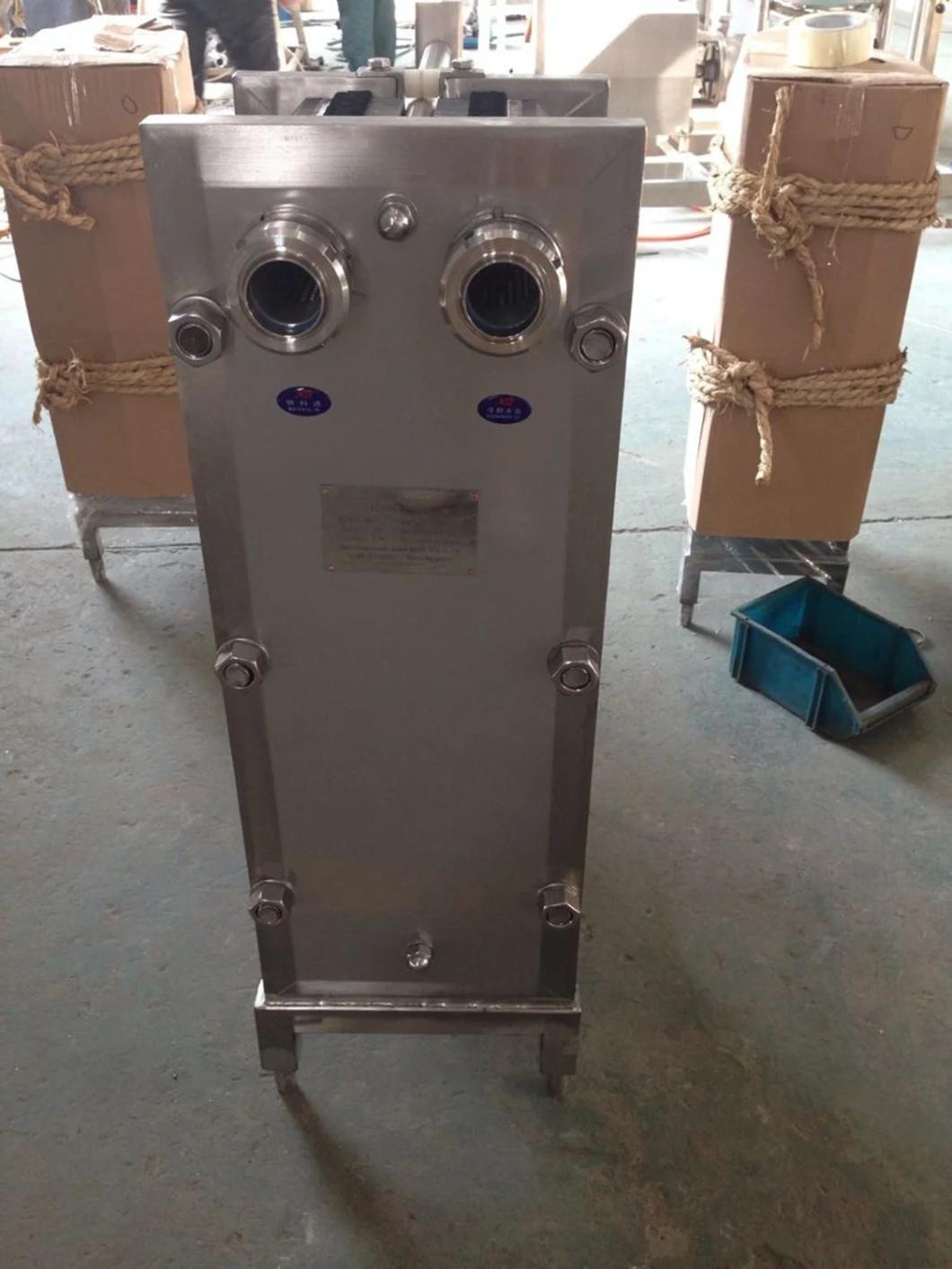

Stainless Steel Sanitary Plate Heat Exchanger
