• Model NO.：GHXP-12,18
• Control System：PLC
• Outside Material：304 Stainless or 316L
• Standard：Meet GMP
• Trademark：GuanHe
• Origin：China
• HS Code：9422301090
• Production Capacity：50 Pieces Per Month

Basic Info.

Model NO. GHXP-12/18 Control System PLC Outside Material 304 Stainless or 316L Standard Meet GMP Trademark GuanHe Origin China HS Code 9422301090 Production Capacity 50 Pieces Per Month

Product Description

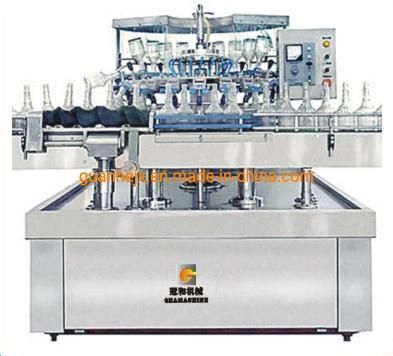

Introduction: Adopting continuous tracking spraying way to wash bottles, it features the great flushing effect and high efficiency, the height can be adjusted to suit various bottle heights.. Moreover, it's suitable for various plastic bottles of different specifications, with advantages of widely-used scope, convenient operation and maintainance.
Technical Parameters:

Suitable bottle height	150-320mm	Suitable diameter	Ф50-100mm
Main motor power	0.55kw	Production capacity	3000-5000bs/hr
Washing-head	18 heads	Washing time	3sec/bottle
Draining time	2 sec/bottle	Flushing media	Aseptic water
Water assumption	1200kg/hr	Suitable bottles	Round/square
Water pressure	0.2-0.4Mpa	Work air pressure	0.6Mpa

Working principle:
This machine adopts electromagnetic motor to transmit the power to wheel through gearing. The wheel is equipped with manipulator folder. The bottle folder follows along with rotary dial so that the bottle is conveyed to bottle entering area in the action of bottle entering device and the bottle folder clamps the bottle, then the bottle is conveyed to the rinsing area and finishes 180-degree flipping, washing, draining and other procedures; finally the bottle is replaced and is pulled out. Therefore, the whole washing process is finished and reaches to the objective of cleaning. The clean bottle is sent to the filler by conveyer chain.

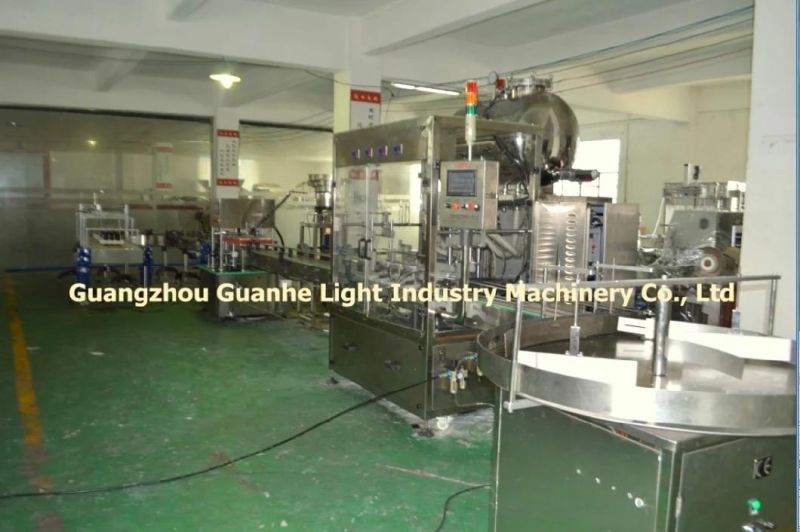

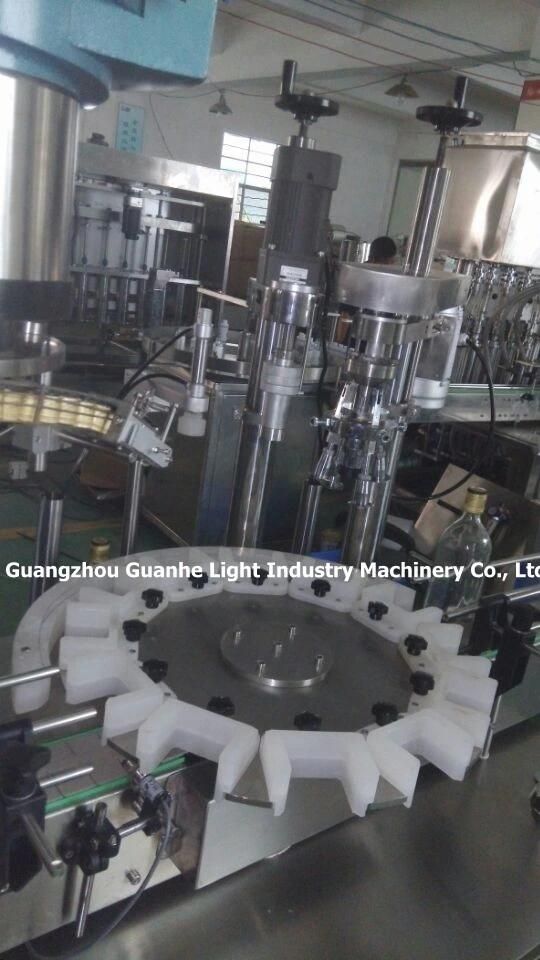

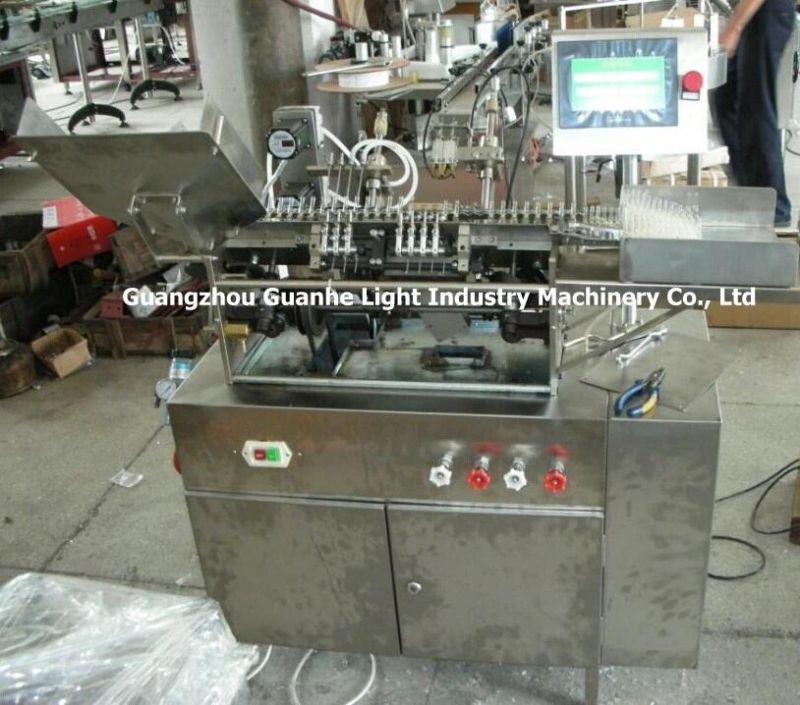

Some of our factory picture:
