• Model NO.：100T,24H
• Condition：New
• Customized：Customized
• Spare Parts：Provide Maize Processing Machine
• Colour：Depend on Customer
• Installation：Provide for Maize Processing Machine
• Brand Name：Hongdefa Maize Processing Machine
• Name：150t,24h Easy Operate Maize Processing Machine
• Oversea Service：Provide for Maize Processing Machine
• Capacity：100-120t
• Line：Complete Line Maize Processing Machine
• Branch Office：Zambia, Brazil
• Pipes：Stainless Steel Pipes
• Transport Package：Suitable for Sea Shipping
• Specification：GB1355-88, ISO9001: 2000
• Trademark：Hongdefa
• Origin：Hebei, China
• HS Code：8437800000
• Production Capacity：50sets,Year

Basic Info.

Model NO. 100T/24H Condition New Customized Customized Spare Parts Provide Maize Processing Machine Colour Depend on Customer Installation Provide for Maize Processing Machine Brand Name Hongdefa Maize Processing Machine Name 150t/24h Easy Operate Maize Processing Machine Oversea Service Provide for Maize Processing Machine Capacity 100-120t Line Complete Line Maize Processing Machine Branch Office Zambia, Brazil Pipes Stainless Steel Pipes Transport Package Suitable for Sea Shipping Specification GB1355-88, ISO9001: 2000 Trademark Hongdefa Origin Hebei, China HS Code 8437800000 Production Capacity 50sets/Year

Product Description

China Hongdefa Top Quality 100t Maize Processing Machine
100T maize processing machine
EU standard 100T maize mill machine

The 100T maize processing machine, we use the European standard design with Automatic control system, including precleaning cleaning milling and auto-packing system.

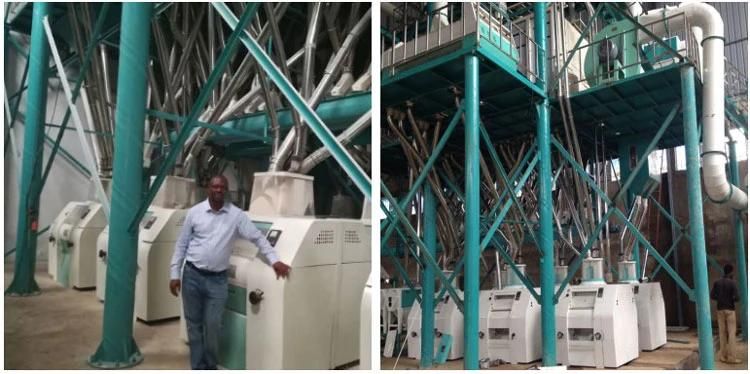

They are the two lines of 100T  maize processing machine which we installed in our China factory and installed in South Africa. Welcome to visit the running line in China.

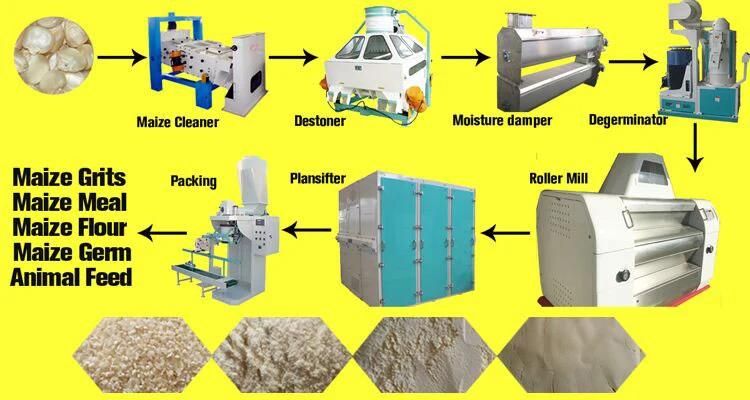

1) cleaning section technique flow for 100T maize processing machine:

Bucket elevator -- Maize cleaner -- Moisture damper (stainless steel)-- damper bin -- Screw conveyor --Magnetic separator--  Degerminator --  Gravity grade sifter -- blower --  Impulse dust filter

2) milling section technique flow for 100T maize processing machine:

Pneumatic roller mill -- Square plansifter --  Aspirator -- blower -- Flour screw conveyor -- Air seal --  Impulse dust filter -- Auto-weighting& packing scale -- Belt Screw Compressor system



Final maize products:

Maize big grits, maize small grits, maize rice, maize samp, maize mill, maize flour and maize bran.

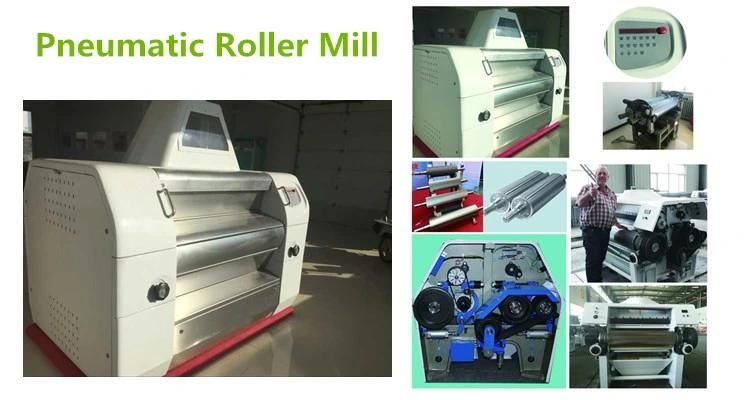

1, Roller mill in maize mill line

The mill is the most important one machine of the whole processing line, is mainly for grinding. To break maize and bran's structure, and separate the maize bran and the embryo from endosperm by grinding.

    1)The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls. This makes residue-free cleaning possible.

    2) a pulse generator automatically adjust the feed material at the entrance door

    3) bearing SKF

    4) the temperature monitor (option)

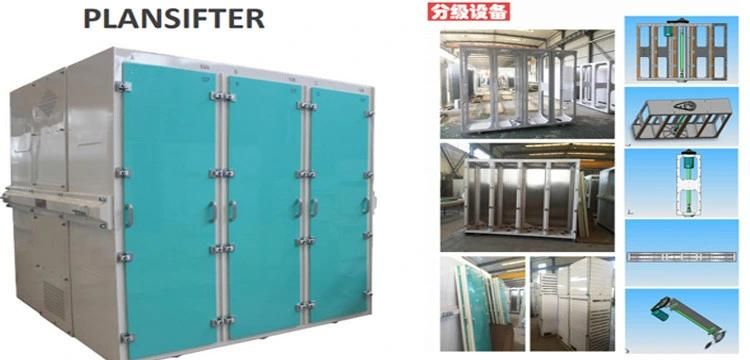

2, Plansifter in maize flour mill line:

Plansifter can classify the material that from break, reduction and scratch systems and sifting the flour to make sure can get the super white maize meal maize grits and maize flour.

   1) Material: High-strength alloy steel

   2)up and down sifter circles with steel plate overall by bending

   3)Transmission system using spring force component institutions

   4)Sieve frames of wood coated with synthetic resin, without backfire

   5)All the inside walls, as well as the doors, are provided with high-grade insulation

   6)Vertical and horizontal clamping system

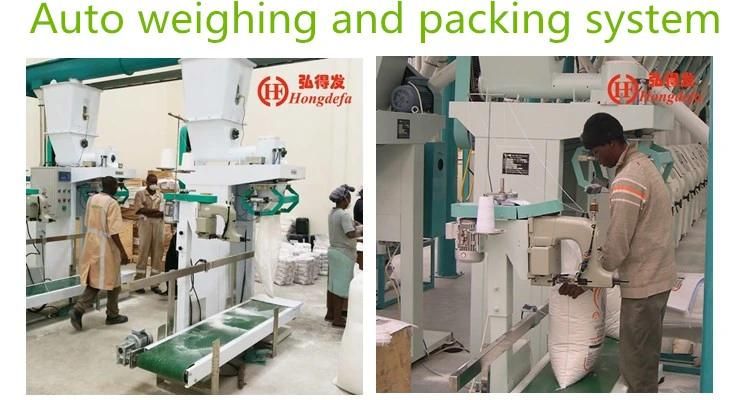

3, Automatic packing system in flour milling line:

E-measurement technology realized automatically fill; automatic detect weight; automatic measure the number of the bags.



It has different packing weight: 10kg 12.5kg 20kg 25kg and 50kg

Air source: Air pressure P≥0.6Mpa

                  Air supply rate Q≥1.2m3/min

packing accuracy: FS±2‰

  1) Online auto cumulative weight

  2)High-precision on-line flow control;

  3)Frequency (batch) weight control;

  4)With MODBUS communication interface with computer networking, computer centralized management control;

  5) According to customer needs, can have the print function.

  6)Feeding and support is stainless steel

4. Pipes in the maize flour mill system:

Stainless steel pipes in milling section where contact with the material.

Stainless steel pipes are high quality and anty-rusty, the whole line looks beautiful, shinning and cleaning.

Our company introduction:

We are a professional manufacturer of maize mill machine in China.

With European technology, South Africa maize process, China wheat process, we roll out unique and innovative wheat flour mill and maize/corn mill plants.

Every year there will be many clients from different countries (such as Zambia Kenya Uganda South Africa Tanzania Benin Ghana Nigeria and so on ) come to our factory in China to check the real maize mill machines, the running lines which can produce the maize flour when they come then make the final order.

We have a special technique team to design the whole line according to each client special needs.

We have a special technique team to design the whole workshop according to each client special needs, land size and special requirements.

If you want to get the exact detail list about this 100t maize processing machine, please send me an inquiry or talk with me by the online chatting tools, I will send you all the detail list withdrawing and best price at the first time.
