• Model NO.：QMJ250
• Transport Package：Wooden Packing
• Specification：customized
• Trademark：Longer
• Origin：China
• Production Capacity：100-1000kg,H

Basic Info.

Model NO. QMJ250 Transport Package Wooden Packing Specification customized Trademark Longer Origin China Production Capacity 100-1000kg/H

Product Description

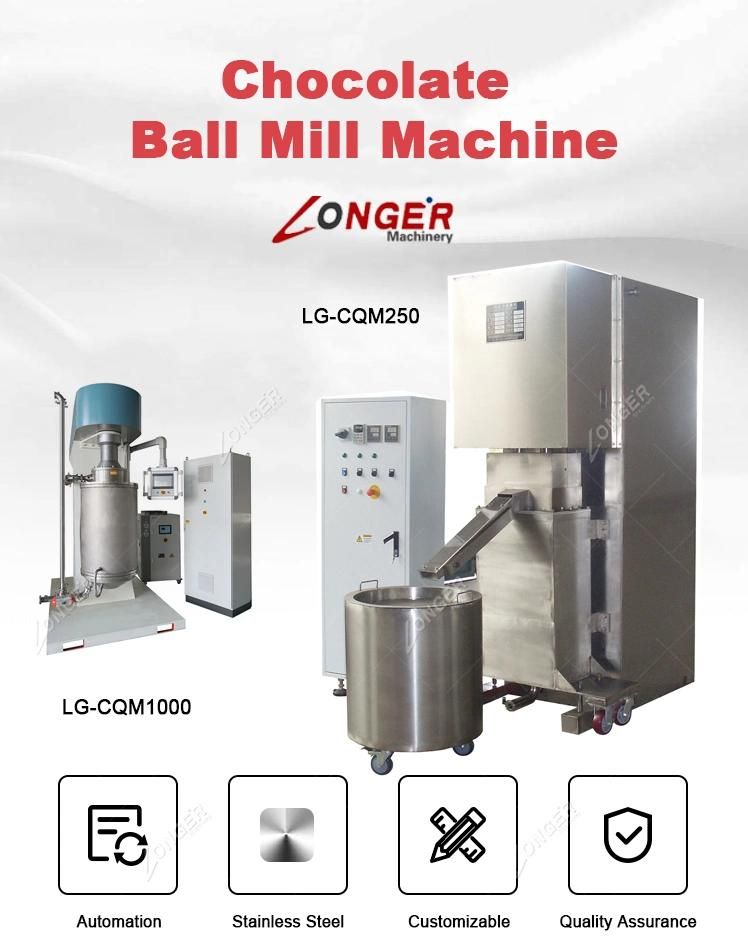

Introduction of ball mill for chocolate
Ball mill for chocolate is one of the principal equipments for fine grinding chocolate through friction and impact of steel balls and paste.
Ball mill for chocolate can be used as a standalone refiner unit or matched with conche machine to increase the output and shorten the milling time.
Batch type chocolate ball mill machine is equiped with automatic temperature control system to control the temperature of chocoalte syrup strictly.Its circulation system makes chocolate syrup circulating in the milling chamber and to be milled evenly.
The capacity can be customized according to customers' demands.

 Application Of chocolate ball refiner
Ball mill chocolate machine is used for ball milling chocolate pastes.Chocolate mill has the advantages of high production output, low energy cost, even fineness and etc..This machine can be used along with conche or mixer, storage tank and chocolate delivery pumps to ensure continuous production and improve production efficiency.It has automatic temperature control.

Parameters Of ball mill chocolate

Model	QMJ250	QMJ1000
Capacity(Kg/h)	250-500	750~1000
Fineness (um)	25~20	25~20
Power (Kw)	15	55
Weight (Kg)	180	1400
Dimensions (mm)	1100*1250*2150	2400*15100*2600
