Full-Automatic Animal Fish Food Feed Making Processing Machine Floating Fish Pellet ...
Shandong Loyal Industrial Co., Ltd.- Certification：CE, ISO9001
- Power Source：Electric
- Process：Thermal Processing
- Automatic Grade：Automatic
- Application：Popcorn, Chips, Biscuit, Donut
- Customized：Customized
Base Info
- Equipment Name：Full-Automatic Animal Fish Food Feed Making Proces
- Key Words：Factory Hot-Sale Pet Dog Fish Food Processing
- Frequency Converter：Delta Brand
- Machine Material：Stainless Steel
- Product Formula：Seller Provide Formula
- Warranty Period：12 Months
- Applicable Industry：Food Processing Machine
- After Sales Service：Seller Send Engineer for Installation and Training
- Spare Parts：Provide by Seller
- Delivery：Arrange by Seller
- Certificate：SGS,CE
- Automatic：Fully Automatic
- Usage：Pet Food Extrusion Machine
- Voltage：Customer Settings
- Company Type：Real Factory
- Transport Package：Film&Wooden Box Packing
- Specification：2.5*1.2*1.5m
- Trademark：Leader
- Origin：Jinan, China
- HS Code：8438800000
- Production Capacity：5000 Sets,Year
Description
The Automatic Pet Feed Pellet Machine Dog Food Making Machine Fish Feed Processing Line is composed of feeding system, extrusion system, rotary cutting system, heating system, transmission system and control system. Adopt advanced screw extrusion technology, use high temperature and high pressure to mature and expand the material, complete at one time. The main engine adopts frequency conversion speed regulation to ensure the stability of the production process. The products are colorful, diverse in variety, beautiful in appearance, natural and lifelike, delicate in texture and widely used in raw materials.
II. Raw materials: Grain flour, soya meal,meat meal, fish meal, bone meal, rice bran ,milk powder etc

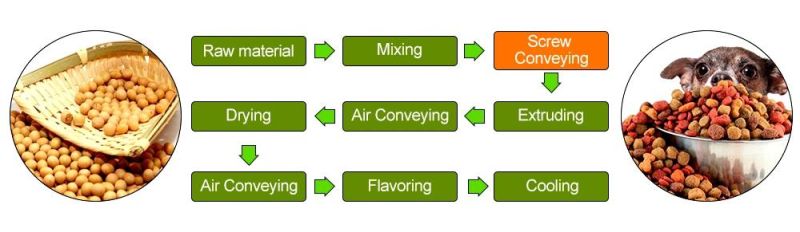

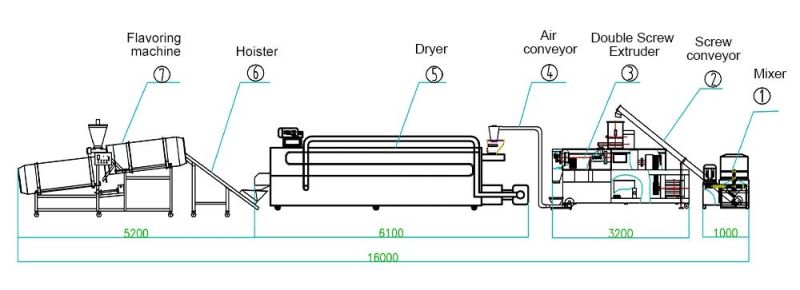

III. Flow chart
Grinder -Mixer -Screw conveyor -Twin-screw extruder -Eelevator-Dryer-Hoister -Flavoring line -Cooling conveyor.
IV. Equipment details of Full-automatic animal fish food feed making processing machine floating fish pellet production line:
We pay highly attention on each detaisl and spare parts.
1. Equipment materials:
2. Super Qulaity Spare Parts&Electrical parts
V. Photos of Full-automatic animal fish food feed making processing machine floating fish pellet production line samples:
The pet treats chews making machine can produce different shape pet treats by changing the die,following are the pet treats photos for your reference
VI. Packing&Delivery:
We adopt the exporting standard packing material.
Normally delivery by 20ft or 40ft container.

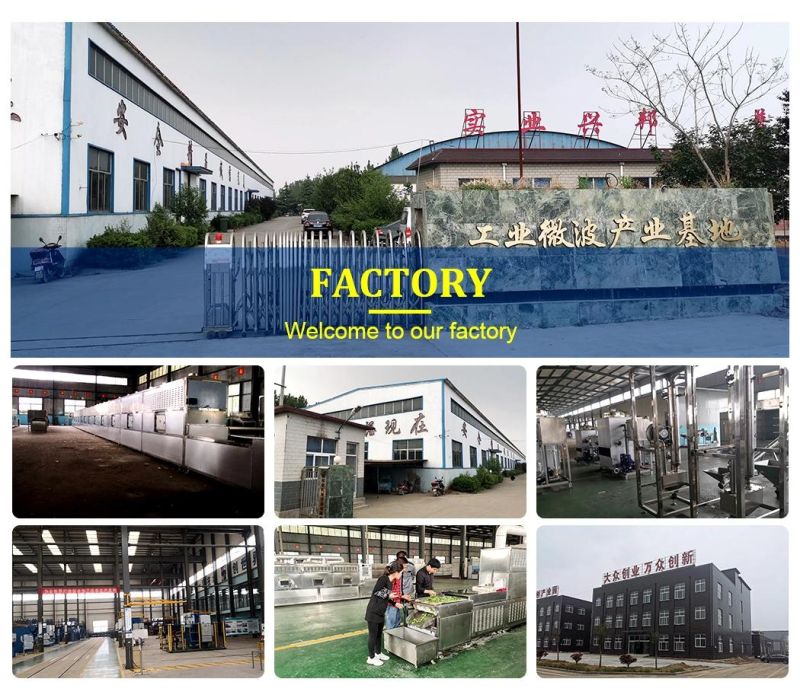

VII. Factory show:
We are a reliable factory located in the beautiful spring city of Jinan, China.
We have a complete management system ISO9001
We are the largest food processing machinery manufacturer in Jinan, the main products: pet food machinery, snack machinery, fruit and vegetable cleaning and processing machinery, biscuit machinery, instant noodle machinery, pasta machinery, etc. - food processing machinery manufacturers!
More than 20 engineers have more than 8 years of work experience and have traveled to more than 50 countries and regions.
Provide 24-hour telephone mail service to provide you with timely and feasible solutions and better after-sales service.
Our pet food machines are sold to more than 30 countries and regions including South America, Russia, Brazil, Tajikistan, Australia, Ethiopia, Algeria, etc.
Pls contact our exporting manage for more business.
II. Raw materials: Grain flour, soya meal,meat meal, fish meal, bone meal, rice bran ,milk powder etc
III. Flow chart
Grinder -Mixer -Screw conveyor -Twin-screw extruder -Eelevator-Dryer-Hoister -Flavoring line -Cooling conveyor.

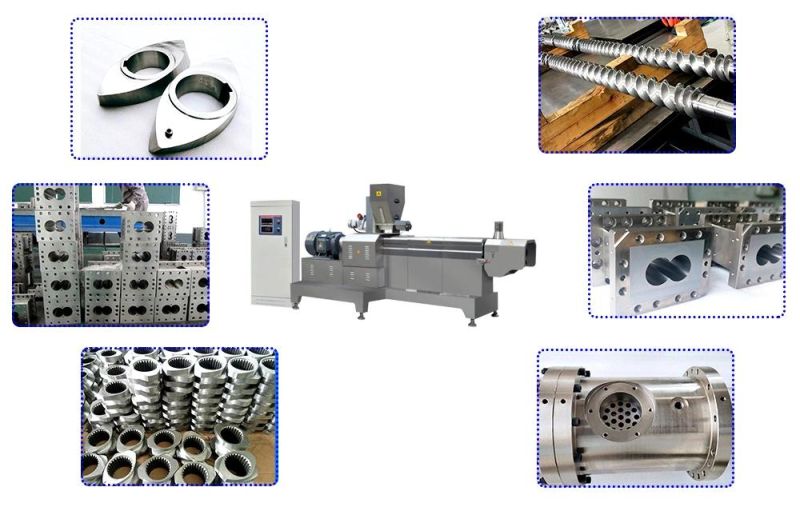

IV. Equipment details of Full-automatic animal fish food feed making processing machine floating fish pellet production line:
We pay highly attention on each detaisl and spare parts.
1. Equipment materials:
- All the aquaculture fish feed machine production line are made by stainless steel
- Screws :alloy steel (38CrMoAl)
- The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
- The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
- The gearbox has automatic lubrication function, with extends gear life.
- Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
2. Super Qulaity Spare Parts&Electrical parts
- We adopt Siemens brands Motor ensure its powerful extrusion and excellent performance
We used ABB/Siemens brand electronic parts used in the controller box, make sure the extrusion process perfect.
3. Reasonable design
- With building block system structure and self-cleaning function.
- High automation;
V. Photos of Full-automatic animal fish food feed making processing machine floating fish pellet production line samples:
The pet treats chews making machine can produce different shape pet treats by changing the die,following are the pet treats photos for your reference
VI. Packing&Delivery:
We adopt the exporting standard packing material.
Normally delivery by 20ft or 40ft container.
VII. Factory show:
We are a reliable factory located in the beautiful spring city of Jinan, China.
We have a complete management system ISO9001
We are the largest food processing machinery manufacturer in Jinan, the main products: pet food machinery, snack machinery, fruit and vegetable cleaning and processing machinery, biscuit machinery, instant noodle machinery, pasta machinery, etc. - food processing machinery manufacturers!
More than 20 engineers have more than 8 years of work experience and have traveled to more than 50 countries and regions.
Provide 24-hour telephone mail service to provide you with timely and feasible solutions and better after-sales service.
Our pet food machines are sold to more than 30 countries and regions including South America, Russia, Brazil, Tajikistan, Australia, Ethiopia, Algeria, etc.
Pls contact our exporting manage for more business.
