• Model NO.：GDQ
• Electric Power Needed：10.5kw(Depend on Model)
• material：Stainless Steel
• Transport Package：Wooden Case
• Specification：CE, ISO9001: 2000
• Trademark：tgmachine
• Origin：Shanghai
• HS Code：84382000
• Production Capacity：1set,Month

Basic Info.

Model NO. GDQ Electric Power Needed 10.5kw(Depend on Model) material Stainless Steel Transport Package Wooden Case Specification CE, ISO9001: 2000 Trademark tgmachine Origin Shanghai HS Code 84382000 Production Capacity 1set/Month

Product Description

INTRODUCTION:

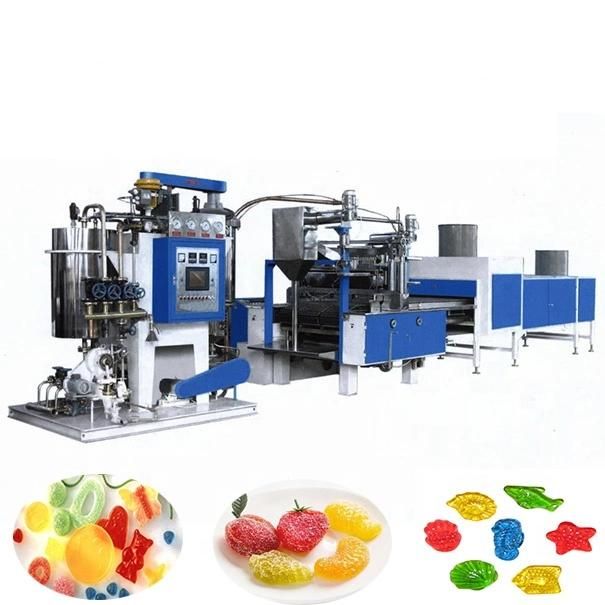

The machine is fabricated based on the similar equipment of NID company from Australia.After being localized,the machine features easy operation and steady working.the processing for the whole line includes cooking,depositing(servo central-filled depositing included),finished product transfering, power disposing and recycling system.
The customer can choose the candy size.Then,we offer our professional layout design for the customer to reach the largest production capacity by approving steady running and stable starch moulds.
This production line is controlled by PLC system with automatic starch molding feeding and unloading. The candy and the powder are separated automaticlly.
Starch adjusting system covers independent drying and cooling template.They are connected by Spiral conveyor driven by motor.





TECHNICAL PARAMETERS:

Model	GD400-S
Production capacity	400-800kg/h According to candy size
Steam needed	0.7-0.8Mpa,250kg/h
Compressed air needed	0.4m³/min,0.4-0.6Mpa
Electric power needed	10.5kw(Depend on model)
Size of starch model	As per customers' request
Occupied Area	About 150m²
