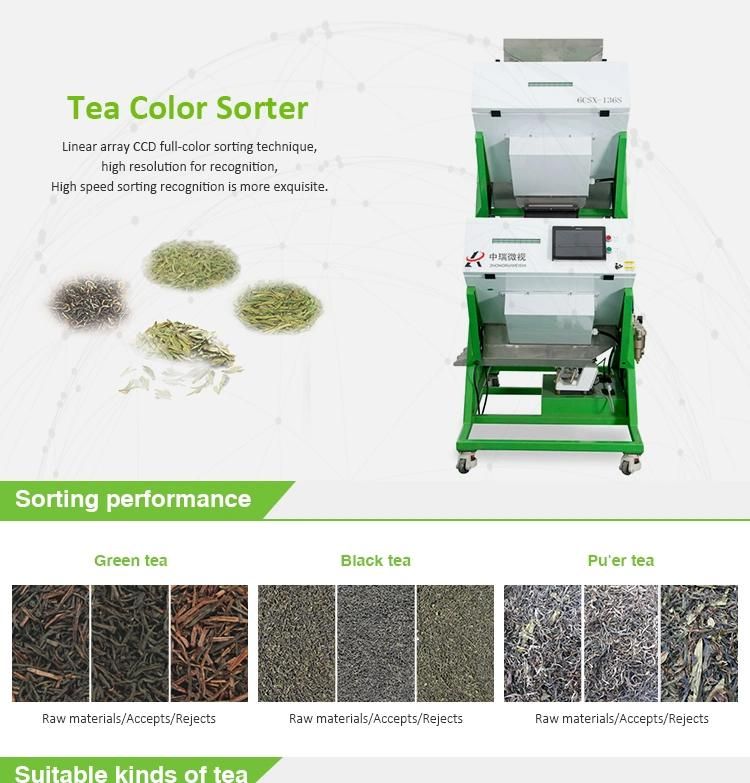

• Model NO.：6CSX-136S
• Output：<100kg,H
• Carryover Rate(Bad:Good)：10:1
• Sorting Accuracy：99.9%
• Transport Package：Wooden Box Packing
• Specification：1035*1934*2223mm
• Trademark：Wesort
• Origin：Guangdong, China
• HS Code：8437101000
• Production Capacity：12000 Sets,Year

Basic Info.

Model NO. 6CSX-136S Output <100kg/H Carryover Rate(Bad:Good) 10:1 Sorting Accuracy 99.9% Transport Package Wooden Box Packing Specification 1035*1934*2223mm Trademark Wesort Origin Guangdong, China HS Code 8437101000 Production Capacity 12000 Sets/Year

Product Description

Product Description

1. The vibration is even and the frequency is stable, so that the falling of the material can form a waterfall flow, which will not overlap the material and reduce the color selection error.

2. Customized rust proof aluminum alloy materials, produce strictly according to the standard of international food safety ,non-toxic and harmless.

3. Imported Led lights with more than 10 years service life. Shadowless led lights can precisely focus the ray on the inspection line which can identify any light color differences.

4. Dual 5388px full color high resolution imported cameras, able to recognize the 0.01mm defects.

5. High-frequency ejectors, up to 1200Hz/s. The fastest response time within 0.6ms. Long service life ejectors, service time 5-10 billion.

6.High-speed transmission system with internet access system, data standardization and GBE. High technology supports TP/TCP protocol. Internet remote maintenance as well as performance, malfunction, and safety management

7. The operative system interface is easy to use. Multiple languages to choose. One-key intelligent automatic identification and adjust to meet the requirements of different batches and different impurity rate of the raw material.

8. Automatic cleaning system with customized time, duration and no delay to keep the machine working without time waste.




Product Parameter


Model	6CSX-136S	6CSX-256S	6CSX-512S
Output(t/h)	<100	<200	<400
Carry over Rate(Bad:Good)	10:1	6:1	6:1
Sorting Accuracy	≥99.9%	98%	98%
Voltage(V/Hz)	220V 50HZ	220V 50HZ	220V 50HZ
Power Supply(Kw)	1.2-1.6	2.4-2.6	4.8-5.6
Pressure(Mpa)	0.5-0.7	0.5-0.7	0.6-0.8
Air Consumption(L/min)	<1800	<3600	<5200
Weight	400kg	720kg	1340kg
Dimension	1035*1934*2223mm	1073*1934*2223mm	2050*2050*2300mm
Matching power / voltage			0.8Kw/380v50Hz

 Why choose Wesort?

1.Over 14 years experiences focus on color sorter. The biggest sorter machine factory in south China. We have the strength give better service and price to you.

2.Overseas Service Station: We have service station, cooperate reseller more than 40 countries. Wesort can meet your requirements on testing, installation and after sales service.

3.OEM/ODM is Supported: We have a strong R&G team(5 famous doctor engineers are included ). We can research and development suitable color sorter for you.

4.Quality Process Assurance: We pass CE, RoHS and ISO quality management system, each process of production are under strictly standard.

5.Shipping Guarantee: We have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.

6.After-sales Service Guarantee:  We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)

7. Sales team: Our professional sales team is fluent in English, Russian, Chinese , Spanish and Japanese. Can communicate better with customers.







Contact us

The price include: 1 set 6CSX-136S color sorter, free shipping, installation, maintenance and one year warranty.

We have a professional Customer Service Representative team. Please feel free to contact our customer service representative anytime for any question.  We are 24h online and can reply to you immediately!


Click below sending inquiry to know more discounts !
