• Model NO.：GD50
• Electric Power：16kw,380V
• Total Length：15m
• Max Candy Weight：as Per as Candy Size
• Room Condition：Temp20~25°c
• Transport Package：Wooden Case
• Specification：CE, ISO9001
• Trademark：TGmachine
• Origin：China
• HS Code：84382000
• Production Capacity：50kg,H

Basic Info.

Model NO. GD50 Electric Power 16kw/380V Total Length 15m Max Candy Weight as Per as Candy Size Room Condition Temp20~25°c Transport Package Wooden Case Specification CE, ISO9001 Trademark TGmachine Origin China HS Code 84382000 Production Capacity 50kg/H

Product Description

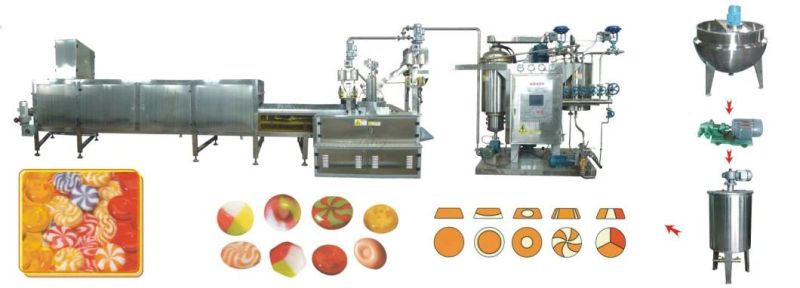

 GD50 Automatic hard Candy Depositing Line



FEATURES:
The processing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.


TECHNICAL SPECIFICATIONS:

Model	GD50
Production capacity   ( kg/h)	50
Rated depositing times(n/min)	25~55
Electric power needed	5kw/380V
Refrigerator	MT120 15,000 kcal/h
Compressed air consumption Compressed air pressure	0.20m3/min 0.4-0.6 Mpa
Conditions needed for  the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	25-30 55
Length of the whole line   (m)	5m
Gross weight           ( Kgs)	Approx.1000

 Deposited hard candy processing flowchart(As reference):
Raw material dissolving ->Transporting->Storage->Dosing->Pre-heating->
Micro-film cooking->Discharding->Mixing with favor and color-> Depositing->
Cooling->De-moulding-> Conveying->Packing->Final products

MAIN EQUIPMENT LIST:
The whole line is comprised of cookers, vacuum micro-film syrup cooking unit, depositor, industrial cooling system, gear pumps, dosing pumps, controller and etc.

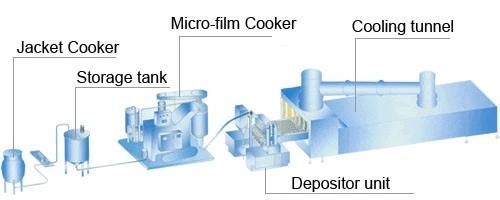

PROCESS FLOWING LAYOUT CHART:
