• Model NO.：SLG70
• Material：Stainless Steel
• Line Size：50*5.*6.0
• Motor Brand：Siemens Brand China Brand
• Inverter：Delta Brand
• Fish Food Types：Floating Types
• Electric Parts：LG, FUJI, Omron etc
• Sale Manager：Mr.Kevin Lee 0086-15264102980
• Capcity：250kg,H
• Product Name：Fish Feed Pet Food Production Machine
• Fish Feed Pellet Size：1.0mm-12.0mm
• Transport Package：Woodcase
• Trademark：Jinan Datong Machinery Company
• Origin：Jinan
• HS Code：843880000
• Production Capacity：250kg,H

Model
Installed power
Real power
Output
Dimension
SLG65
70kw
40kw
100-150kg/h
22000x1200x2200mm
SLG70
90kw
50kw
200-240kg/h25000x1500x2200mm
SLG85
120kw
100kw
400-500kg/h30000x3500x4300mm
SLG90
135kw
100kw
800-1000kg/h30000x3500x4300mm
SLG115
165kw
115kw
1000-2000kg/h30000x3500x4300mm

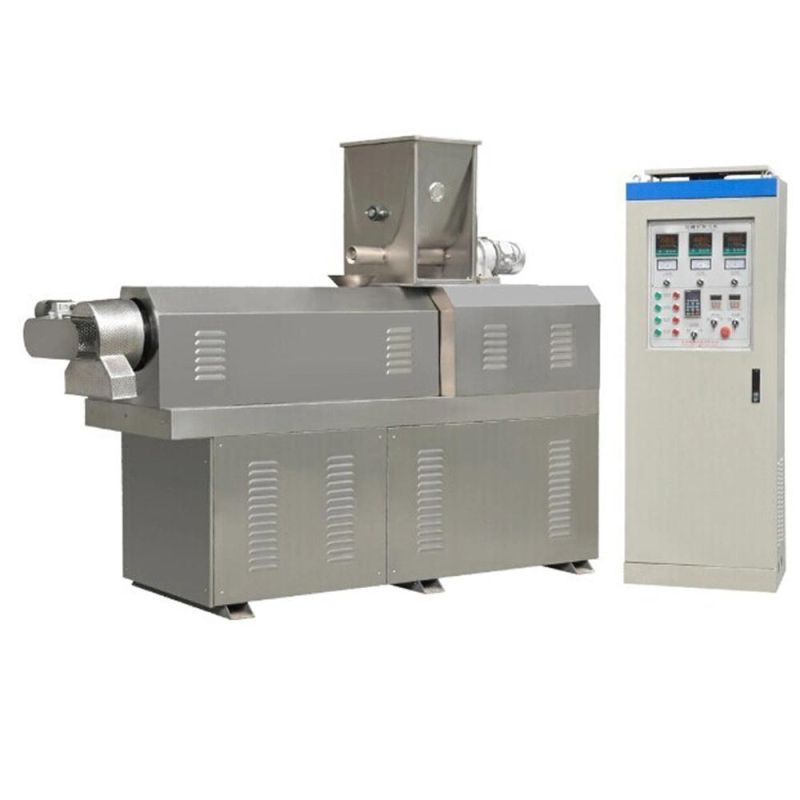

1. Extruder is mainly composed of feeding, pre-conditioning, extrusion and cutting systems.
2. Main engine adopts inverter to adjust speed of screw according to changing of formula.
3. adopt building block system (BBS) to be adjustable for different technology.
4. Double-shaft pre-conditioner makes excellent result of mixing and conditioning, increasing capacity of extruder 10-15%.
5. Diameter of feed 1mm to 12mm can satisfy feed production for dog, cat, tortoise, bird, sea fish, shrimp and pet fish etc.
6.Self-cleaning, when stopping, it can be cleaned without disassembling.

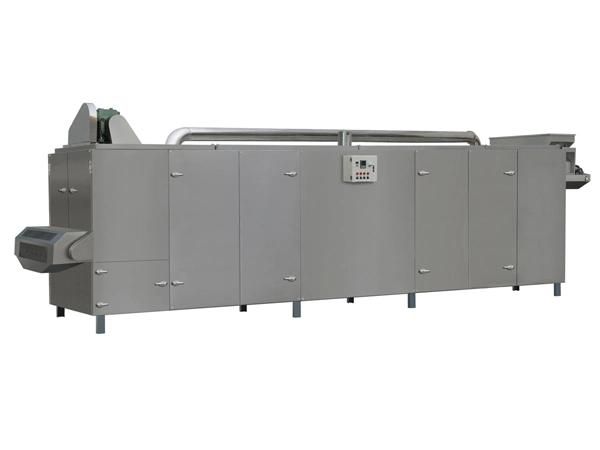

5.Dryer  (electrical, steam, gas, diesel type)
Model: KX3-5, 5-5, 5-8, 5-10, 7-8, 7-10
Capacity: from 100kg/h to 3000kg/h
Belt width: 1300mm & above
Drying length: 10m~140m
Applied temperature(ºC): 30~240
Drying time: 5~30 mins
Number of fans: 3~ 16 pcs
Structure: Multiple stainless steel belt
Feeding speed: 0.05-0.5 m/s
Steam consumption (t/h): 0.4~4.0
Application scope: Food industry,Feedstuff,Agricultural Products, Application Grain,Pet Food,Fish Feed,Puffed Snacks,Soybean Chunk,Pasta,Artificial rice,Vegetarian Meat,Etc

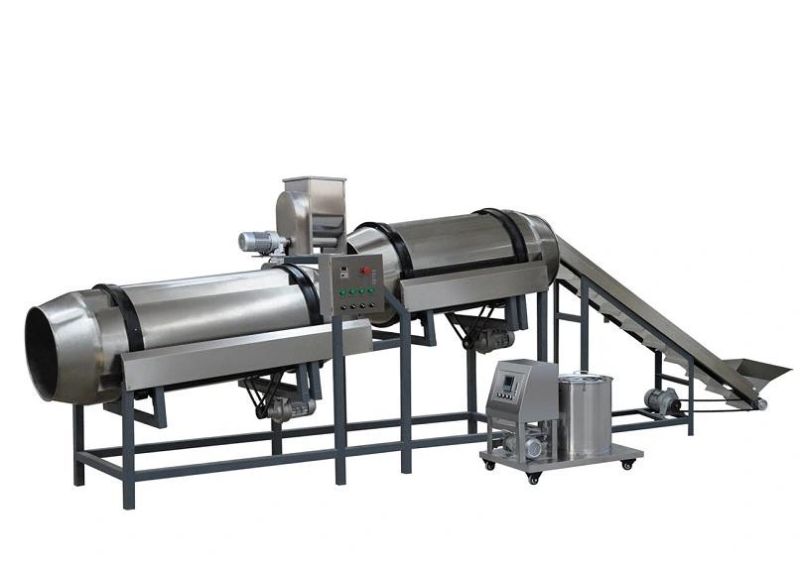

6.Flavoring system---including hoister, flavors feed and rolling drum

1. Fish-oil or other nutritious additives are sprayed on the surface of the pellets to improve palatability and conversion rate of feed.
2. Adopting drum pattern and oil atomization spraying system together with continuous and automatic operation.
3. Widely used for spraying fat, vitamin, substrate and medication onto the surface of extrusion feed.

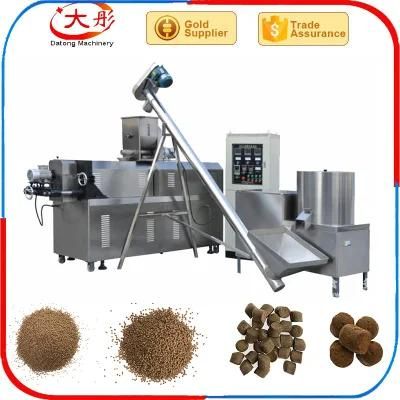

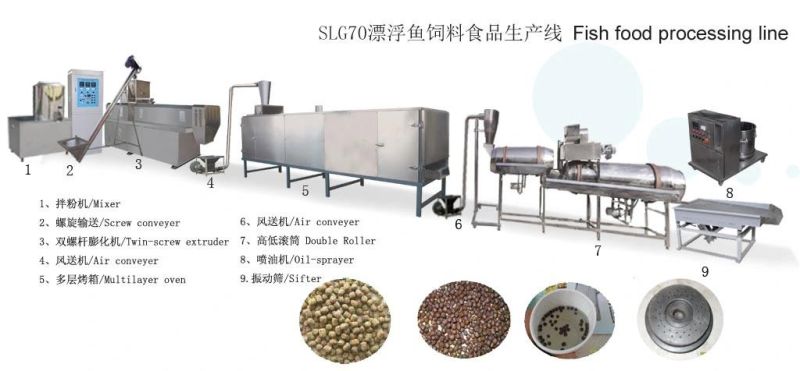

7.Formation of fish food production line:

1. Mixer: there are many kinds of model numbers to choose base on the production capacity.
2. Conveyor: to convey mixed raw materials to the extruder machine
3.Extruder machine: to choose DSE model extruders base on the production capacity requirement from 100kg per hour to 3ton per hour. The raw material include corn powder, cereal powder, soybean powder, shrimp powder, fish meal and     so on. Shape of the pellet depends on the moulds.
4. Hoister: to convey the fish food to the dryer, the height of the hoister depends on the dryer.
5. Multilayer dryer: electrical, gas, diesel, steam type, controlled by control box, temperature range 0-240ºC.Inside is stainless steel double layer mesh net. Drying time is adjustable according to speed. We have dryers of 3 layer 5 meter, 5 layer 5 meter, 5 layer 7 meter, 5 layer 8 meter, 7 layer 8 meter, 5 layer 10 meter, and 7 layer 10 meter long.
6. Flavoring line: to spray oil and phagostimulant, the equipment are: single roller, double roller, round roller, eight-angle      roller. Varies depends on the different production line setting, to spray oil to the surface of the product and make it evenly.
7. Cooling conveyor: To cool the product temperature in order to pack it directly.
8. Sifter: To remove the wasted material and shapeless pellet, and ensure quality, meanwhile to ensure the reuse of material
9. Packaging machine: Manual and automatic packing machine. weight per bag according to your requirement.

8.Our Service:

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Medium-sales service
*Every step of the production informed to client
*Machines produced according to client's confirmation
*Inspection and Delivery
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
