• Model NO.：BCM45
• Material：Stainless Steel
• N.W：400 Kg
• Power：12 Kw
• Usage：Smokehouse for Meat
• Capacity：30L,50L,100L,500L,750L,1000L,1500L
• Smoking Type：Hot Smoked
• Transport Package：Carton
• Specification：1070*998*1310 mm
• Origin：China
• HS Code：843850000

Model
 BC-250BC-500 BC-750BC-1000 Capacity
kg/per time250 KG500 KG750 KG 1000 KG
Power
 6.12 kW10.12 kW14.12 kW18.12 kW
High steamed pressure
 0.3~0.6 Mpa0.3~0.6 Mpa0.3~0.6 Mpa0.3~0.6 Mpa
Low steamed pressure
 0.1~0.2 Mpa0.1~0.2 Mpa0.1~0.2 Mpa0.1~0.2 Mpa
 High pressure temperature
 100ºC100ºC100ºC100ºC
Low pressure temperature
 85ºC85ºC85ºC85ºC
Water Pressure
 0.2 Mpa0.2 Mpa0.2 Mpa0.2 Mpa
Dimension(mm)
 1350×1510×26002420×1510×26003660×1510×26004765×1510×2600
Trailer size(mm)
 1000×1030×19801000×1030×19801000×1030×19801000×1030×1980
Installation Dimension(mm)
 5000×3000×36006000×3000×36007000×3000×36008000×3000×3600
Weight(kg)
 ≈1800≈2500≈3200≈3900

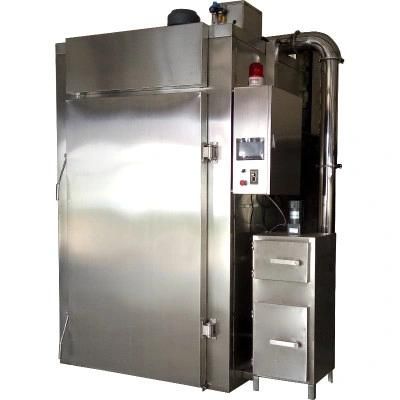

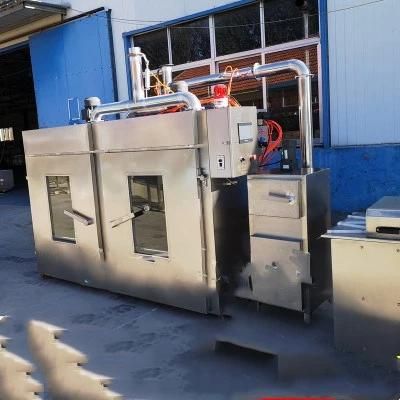

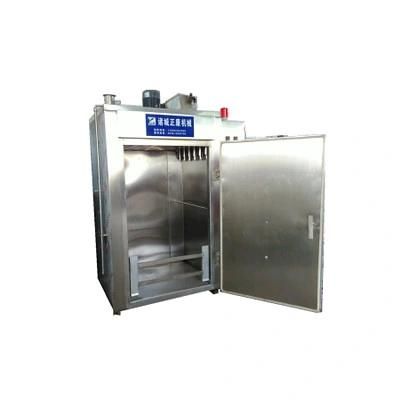

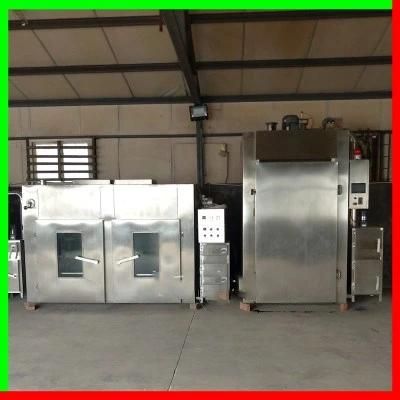

Detailed Images







Packing & Delivery
