• Production Capacity：50000PCS,Year

Model

BYG-2

BYG-5

BYG-10

Capacity(as wheat)

2000 kg/h

5000 kg/h

10,000kg/h

Size( L×W×H)

1550*800*1500 mm

2500×1000×2400 mm

2600×1100×2500 mm

Liquid tank size Size( L×W×H)

540×490×862 mm

540×490×862 mm

540×490×862 mm

Power

1.65 kW

3.18 kW

4.22kw

Drug mix range

1:25~1:120

1:25~1:120

1:25~1:120

Coating uniformity

≥ 98%

≥ 98%

≥ 98%

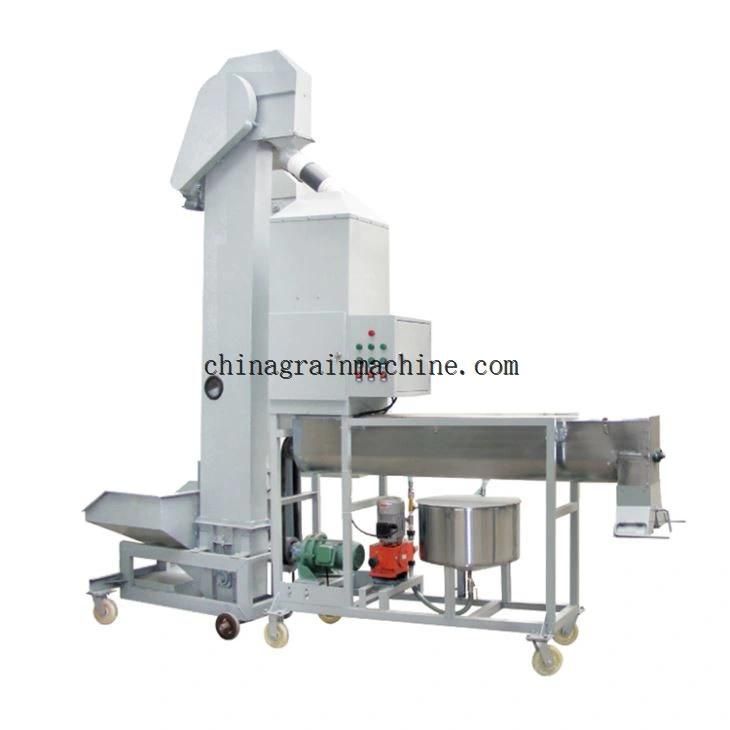

4. Working Principle

In the process of seed rolling and mixing, the seed moves from the inlet end to the lower outlet end, meanwhile under the action of the copying plate and the guide plate, the seed rain forms along with the up and down movement of the roller; at the same time, the seed coating agent also flows into the nozzle after measurement, forms a fixed angle along with the air atomization and the seed rain, and repeatedly sprays the seed surface to form a film.

5. Equipment Structure

1. Seed feeding mechanism:

it is composed of bucket feeding roller and level sensor. Compared with the traditional lever tipper feeding mechanism, it has the characteristics of continuous feeding, accurate measurement and adjustable feeding amount.

2. Liquid medicine supply system:

it is composed of liquid medicine barrel, metering pump, pressure stabilizing tank, valve and measuring cup. It can be set to two states of manual sampling and automatic dosing as required. When it is set to the manual sampling state, the liquid medicine can flow into the measuring cup to determine whether the liquid medicine quantity has reached the seed coating proportion; when it is in the automatic state, it can realize the accurate drug supply according to the requirements of the seed ratio; the liquid medicine cylinder is equipped with a continuous mixing device and a liquid level indicating device.

3. Initial mixing mechanism of seed and seed coating agent:

the liquid medicine shaker is wave type, which can atomize the liquid medicine uniformly under high-speed rotation, make the mist particles become finer and improve the uniformity of coating.

4. Cleaning mechanism:

the brush structure is adopted. Driven by the cleaning motor, the cleaning brush scrapes off the materials and liquid medicine adhering to the inner wall of the primary mixing chamber of seeds, and also plays a role in mixing the materials.

5. Mixing mechanism:

The mixing shaft assembly is equipped with a certain angle arrangement fork and crescent blade, whose function is to further mix the material and the liquid medicine and then discharge them out of the machine. A sensor is set at the outlet of the mixing shaft to monitor the operation of the mixing shaft. In case of blockage, there is a red light alarm on the electric control cabinet and the machine stops.

6. Intelligent control system

 It is composed of programmable controller, hydraulic monitor and sensor to complete the automatic control of the equipment.

Packing Delivery

First, the brown rice is fed to rice polisher through screw head. the surface of the rice grain is polished by friction under a certain pressure and temperature. Through the polishing treatment, not only the floating surface of the rice grain can be cleared, but also the starch is pregelatinized and gelatinized on the surface of the rice starch, and the starch gelatinization makes up for cracks, thereby obtaining the smooth appearance, improving the storage life of the rice, therefore polished rice is very necessary.

Our Service

[Consulting Service] Our consultant provides you with pre-sales expertise consulting services, system evaluation, providing the best engineering solution

[Engineering Service] Set up special project team of technical, installation and sales for you. to design, install and commissioning a complete set of equipments, whole process tracking service.

[Training Service] Our experts in technology and management provide you long term production, operation, management, maintenance and other professional skills training, to help you train operation, technology, management personnel.

[Spare Part Service] We provides high-quality and reliable original accessories. And the service centers also keep store of a certain number of common accessories to meet the demand of rapid supply.

[Site service] Our service engineer goes deep into your site to solve practical problems. Conduct on-site training on the use of products and seek for improvement of a new way of thinking and method to reduce cost and increase efficiency.

FAQ

1. What is the delivery time of this machine if we book order right now?

We will deliver your order within 30-60days depend on different of machines.

2. How do you pack this machine for exporting?

We will provide packing which is suitable for the agreed means of transportation and for the foreseeable conditions of storage at the destination.

3. How can we make inspection before delivery?

We welcome you send your inspection manager come to our factory for inspection or you can nominate international the third part inspection company.

4. What is the warranty for your machine?

If any defect or non-conformity arising from faulty design, materials, we shall eliminate defects or replace machine.

5. What is the installation requirement of this machine?

The foundation of the machine should be with sufficient strength to support the weight of the machine.

There should be enough space around the machine for maintenance and inspection.
