Guangxin 6.5tpd Combined Groundnut Oil Machine with Oil Filter

Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.

Type：Spiral Oil Press
Application：All, Sunflower Seeds, Soybean, Peanut, Rape Seeds, Flax
Voltage：380V
Appearance：Horizontal
Press Materials：Peanut
Press Series：Fourth

Base Info

Model NO.：YZLXQ120
Condition：New
Customized：Non-Customized
Processing Capacity：6.5 Ton Per Day
Motor Power：15kw
Filtering Power：1.5kw
Oil Content of Dry Cakes：Less Than 7.6%
Spiral Axes Rotate Speed：32-44 Rpm
Temperature Control Power：3.2kw
Measurement(L*W*H)：1948*1522*1915mm
Advantages：High Oil Output and Easy Operation
Function：Oil Pressing and Oil Filtering
Weight：1115kg
Transport Package：Export Wooden Case
Specification：YZLXQ120
Trademark：GUANGXIN
Origin：China
HS Code：84792000
Production Capacity：600sets,Month

Description

Processing capacity 6.5 ton per 24 hourTemperature control power (kw)3.2kwOIl content of dry cakesless than 7.8%Spiral axes rotate speed(rpm)32-44rpmOIl press power(kw)15kwMeasurement(L*W*H)(mm)1948*1522*1915OIl filtering power(kw)3.2kwWeight(kg)1115

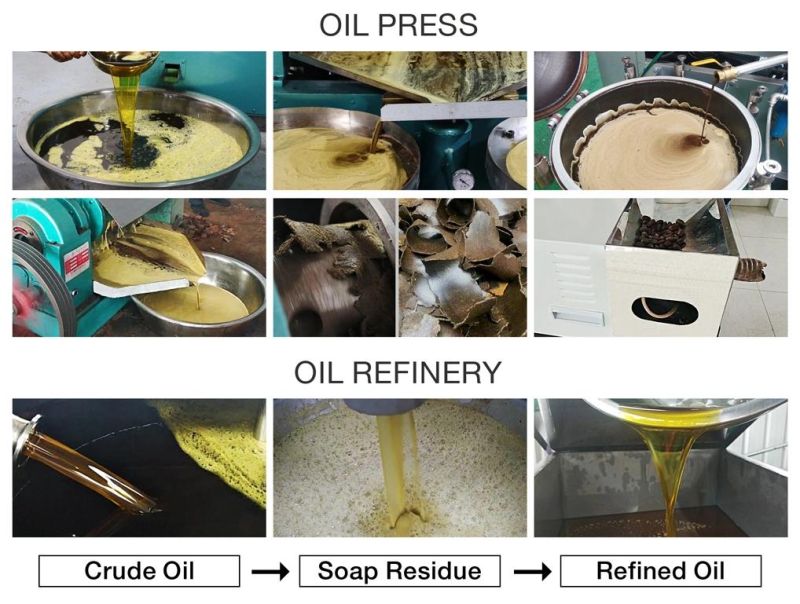

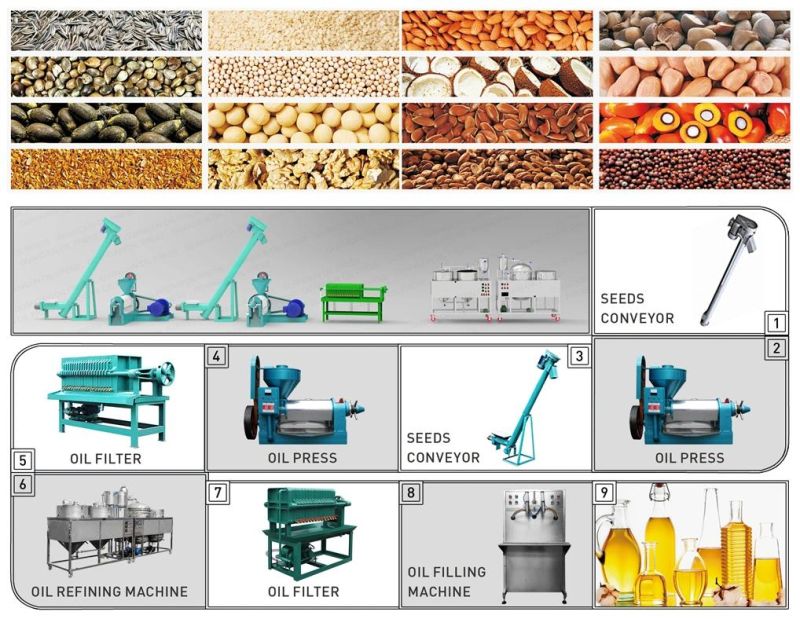

Oil Production process

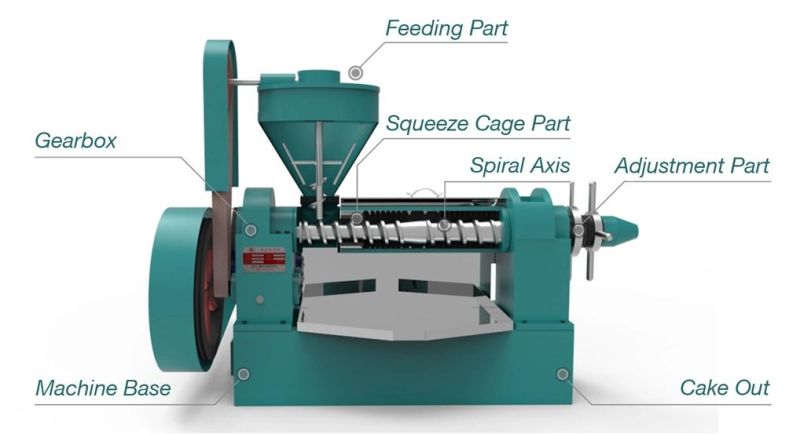

Internal structure of oil press

Oil production site

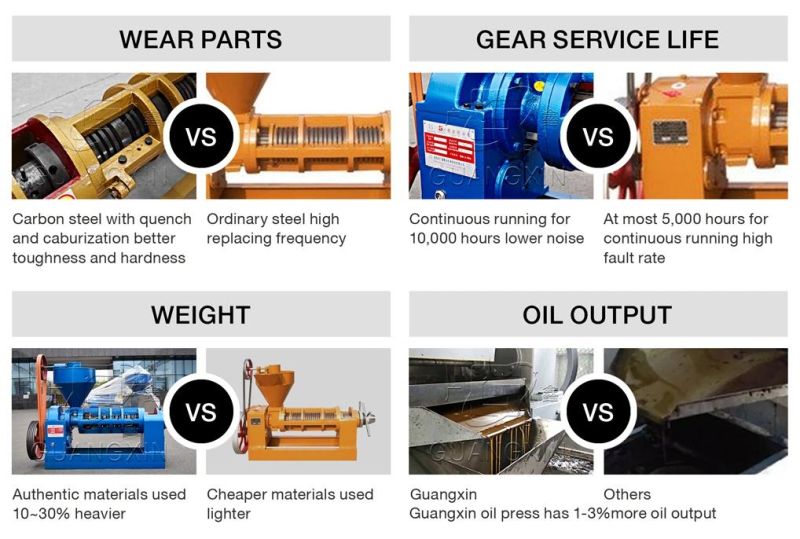

Our Advantages

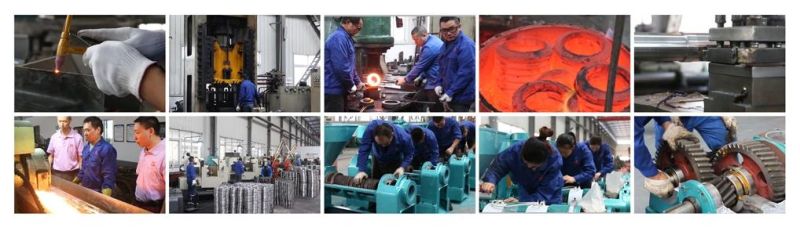

Our Company

Certificates

Exhibition all over the world

Packing and delivery

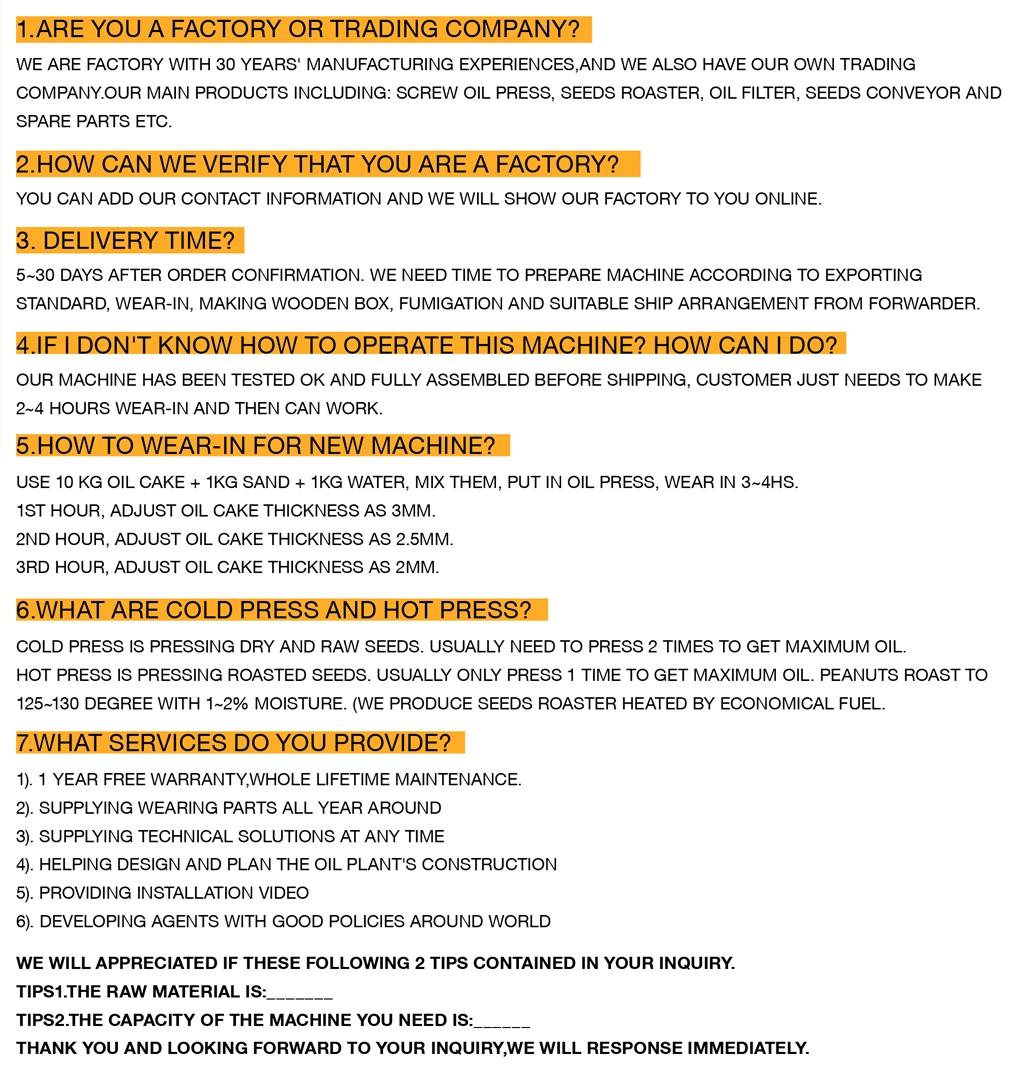

ANSWER AND QUESTIONS
