• Application：Milk
• Customized：Customized
• Material：SS304 or Ss 316L
• MOQ：1 Unit
• Key Selling Points：Easy to Operate
• Function：Cooling
• Voltage：380V,220V 50Hz or Customized
• Compressor：Copland
• Refrigerant：R22 or R404A
• Key Selling Point：Long Life Service
• Transport Package：Wooden Box
• Specification：Variable
• Trademark：WS
• Origin：Shanghai, China
• Production Capacity：53sets,Month

R-404a/R-22

/

1000L

3P

1680*1210*1300mm

2000L

5P

2050*1500*1500mm

3000L

6P

2380*1700*1600mm

4000L

8P

2630*1800*1700mm

5000L

10P

2980*1900*1800mm

6000L

12P

3080*2100*1950mm

7000L

12P

3300*2100*1950mm

Location of work house:
The work house should be spacious and good air liquidity. There should be an one-meter passageway for operator working and maintain. When it is mechanized milking, you should consider about the connection with other equipment.
The foundation of the tank should be 30-50 mm higher than the floor.

Installation of the tank:
After the tank got in position, please adjust the feet-bolts, make sure the tank tilt to the discharge hole, but not too much, just can discharge all the milk in the tank. You must make sure the six feet uniform stress, do not allow any foot be drift. You can adjust the left-right slope by Horizontal scale, make sure it is not slope to left or right.
Switch on the inlet of condenser.
The equipment switch on electric power must switch on the earth.

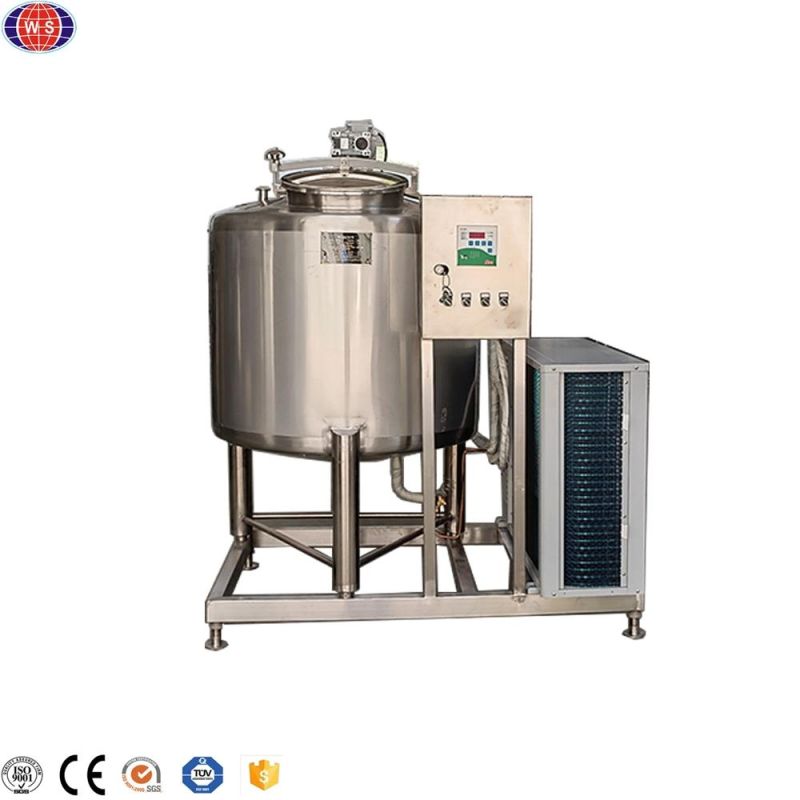

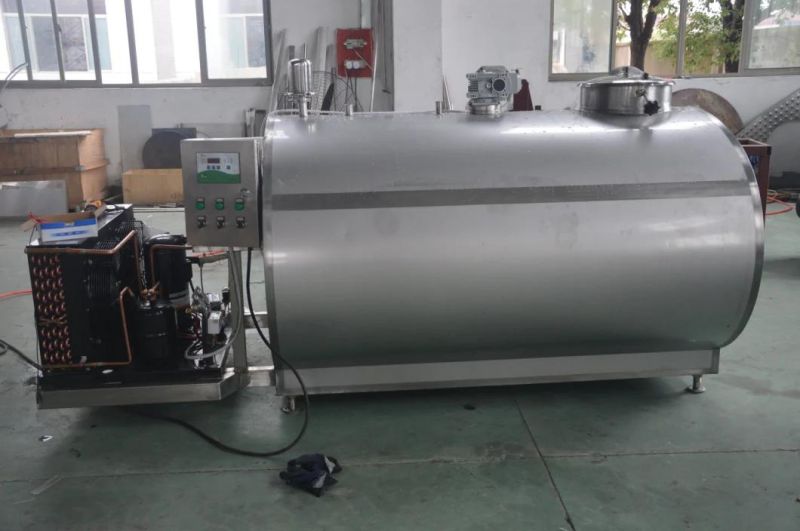

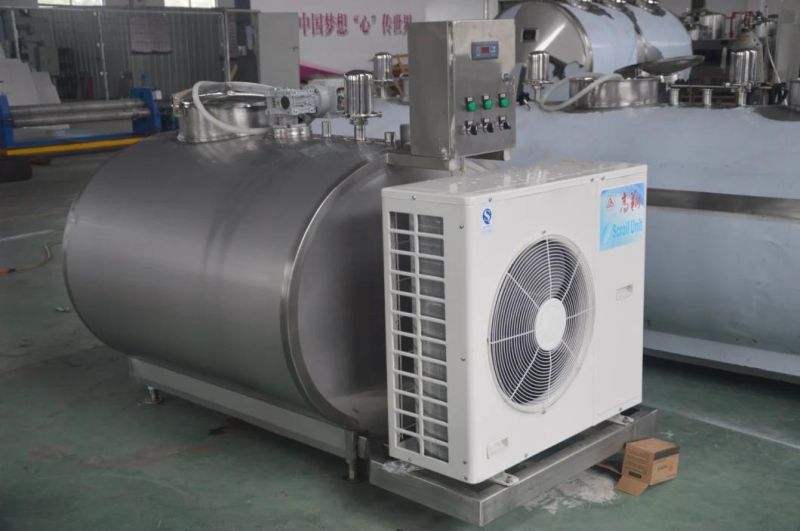

Product pictures:
