• Model NO.：GY100L
• Knife Motor Power：18.5 Kw
• Scraper Motor Power：0.75 Kw
• Vacuum Pump Power：2.2 Kw
• Steam Consumption：90 Kg,Batch
• Material Capacity：90 Kg,Batch
• Transport Package：Wooden Case
• Specification：customzied
• Trademark：GENYOND
• Origin：China

Basic Info.

Model NO. GY100L Knife Motor Power 18.5 Kw Scraper Motor Power 0.75 Kw Vacuum Pump Power 2.2 Kw Steam Consumption 90 Kg/Batch Material Capacity 90 Kg/Batch Transport Package Wooden Case Specification customzied Trademark GENYOND Origin China

Product Description

Introduction:



The machine can be produced smear cheese or any pastry fillings. Put the raw materials or cheese block into pot then they are cooked by steam and cut, stired by high speed knife. The final product is formed as a paste when it is hot.

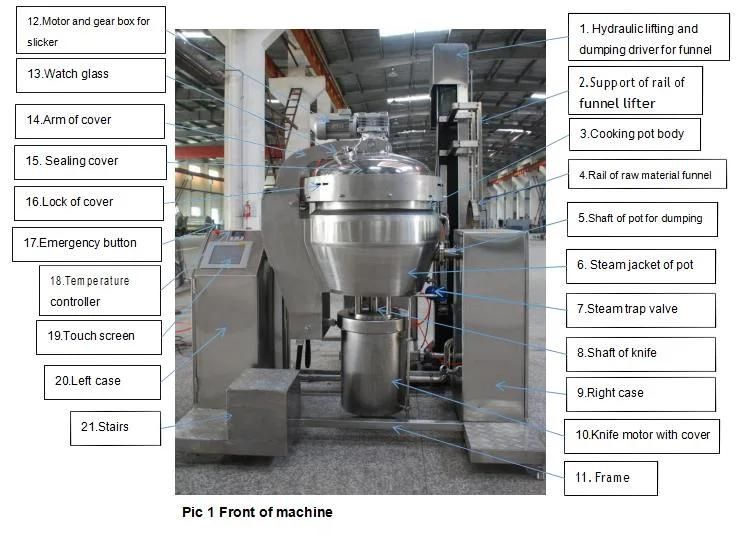

It consists of;
A pressure resistance pot with steam jacket;

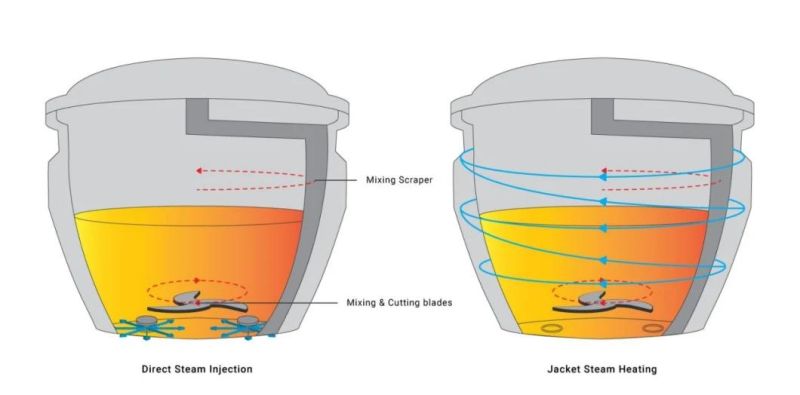

Steam can direct jet into pot to heating and cooking the product in pot;
Vacuum pump and vacuum control system for sucking out moisture from product in pot; Automatic lifting and dumping funnel put in raw material device by hydraulic driver.
Pot dumped device by motor and gear box with brake block device, it is for put out the final product from pot ;
High speed and strong power knife, for cutting and stirring the raw material into fine grain, a paste form and uniformly mixed.
Low speed slicker on the top of cover driven by motor with gear box. Sealing cover and its lock device, they are driven by pneumatic device. Temperature control system to control the temperature in pot;
PLC and touch screen control system to order the machine running in program and set different programs for different products.



Parameters:



Batch capacity: 50-300 L/batchWorking pressure range: Vacuum(-0.4 bar) to Pressurised(1.5 bar)Working temperature: 115 CHeating method: jacket stem heatingCutting blade speed: 300-2,000 rpmBowl side scraper speed: 12-20 rpmOperating power: 3 phase, 380 V 50 HzPower consumption: 20-50 kWCompressed air: 6 bar(min),constantMaterial for machine: SUS 304 or 316>Weight: 2 tonsDimension(L*W*H): 2200 mm*1200 mm* 1500 mm
