Industrial Microwave Turmeric Chili Pepper Drying Machine for Spices

Jinan Kelid Machinery Co., Ltd.
  • After-sales Service:Field Installation, Commissioning and Training
  • Warranty:1 Year
  • Product Name:Microwave Dryer
  • Feature:High Efficiency Low Cost Good Quality
  • Usage:Dehydration, Sterilization, Drying Heating
  • Control System:PLC

Base Info

  • Model NO.:KLD
  • Color:Silver
  • Energy Source:Electricity
  • Weight:2t
  • Application:Herb Fruit Food Vegetable Seafood Wood etc
  • After- Sale Services:Overseas Engineers
  • Capacity:10- 2000kg, H
  • Heating Way:Magnetron
  • Transport Package:Plastic Bag and Wooden Case
  • Specification:Fully stainless steel
  • Trademark:KLD
  • Origin:Shandong, China
  • HS Code:843800000
  • Production Capacity:100- 2000kg,H

Description

Equipment Model

KLD-Microwave Drying Equipment

KLD-Microwave Drying Equipment

Operating frequency

2450±50MHZ

2450±50MHZ

Rated inputapparent power

≤60KW

≥120KW

Microwave output

≥50KW

≤110KW

Temperature

30-100ºC(controlled)

25-80ºC(controlled)

Type of cooling

Water-Cooling/Air cooling

Water-Cooling/Air cooling

Inlet and outlet height

40-100mm

40-100mm

Height of conveyor

600-1000mm

600-1000mm

Tranmission speed

0~10m/min(adjustable frequency)

0~10m/min(adjustable frequency)

Dehydration Rated

40-50KG/hour

40-50KG/hour

Contour dimension

12500mm*1600mm*2200m

(customized)

12500mm*1600mm*2200m

(customized)

Width of conveyer belt

750±100mm(customized)

1000±100mm(customized)

Microwave leakage standard

ISO≤5mw/cm²

ISO≤5mw/cm²


Detailed Images

Industrial Microwave Turmeric Chili Pepper Drying Machine for Spices

 Control box

 Make operation easier by using the PLC system and real time monitoring system.

 Observation window

 The observation window design makes it easier to observe internal situation.

Industrial Microwave Turmeric Chili Pepper Drying Machine for Spices

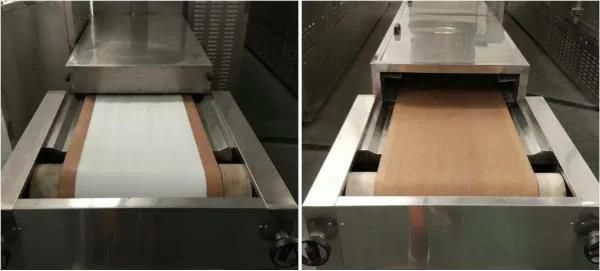

The conveyor belt and opening can be adjusted according to your needs.

Industrial Microwave Turmeric Chili Pepper Drying Machine for Spices

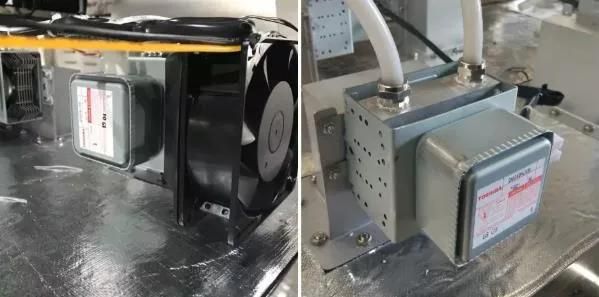

Air cooled magnetron                                                                             Water cooled magnetron

Certifications

Industrial Microwave Turmeric Chili Pepper Drying Machine for Spices

Packaging & Shipping

Industrial Microwave Turmeric Chili Pepper Drying Machine for Spices

1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film. Finally pack them with wooden case.

2)Customer's requirement is available.

3).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code, house number, street, city, country); by ship-please tell me your delivery port.

Company Information

Jinan Kelid Machinery Co., Ltd. Is a professional supplier of microwave oven.Our company's motto is:"technology makes easy".We offer to cooperate with our customers for mutual and beneficial development.

Industrial Microwave Turmeric Chili Pepper Drying Machine for Spices

FAQ

1. What's the materils?

 Answer: Stainless steel

2. How long is your gurantee time?

Answer: One year after comissioning.

3.How is the installation?

Answer: When the machine arrives at the your workshop, we send 2 engineers to install the  machine and teach the workers how to use. There be a operate mannual and Equipment

maintenance manual.

4.How is the payment?

Answer: 40% TT as downpayment, 60% TT or L/C before shippment. Before shippment,welcome to inspect the machine.
